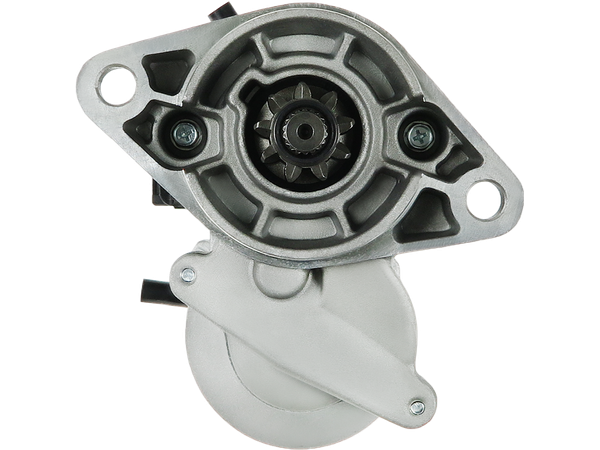

S6317S
Startmotorer
STANDARD LINE
1010 kr
Köp nu
| EAN | 5902129108351 |
| Tillverkare | AS-PL |
| Ersätter | DENSO |
| OE-nummer |
AS-PL: UD16847S CARGO: 113108, F032113108 DELCO: DRS0589 DENSO: 228000-2310, 228000-2312, 228000-2860, 228000-2890, 228000-2893, 228000-3060, 28100-08040 DIXIE: 246-15107, S-8451 ELECTROLOG: STR6500 ELSTOCK: 25-3404 KRAUF: STN1144 LOGISTIK: 336494 LUCAS: LRS02233, LRS2233 STARDAX: STX200998 TOYOTA: 28100-35080, 28100-35090, 28100-U2100-71, 2810008040, 281003509084, 281003510084 WAI / TRANSPO: 17493N WOODAUTO: STR70235 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 20.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 188.00 |
| O.1 [ mm ] | 115.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| TOYOTA | 2.4 EFI 4WD (RN106_, RN110_, RN106R, RN110R) | HILUX V Pickup (_N8_, _N9_, _N10_, _N11_) | 22RE | 114 | Petrol | 1989–1997 |
| VW | 2.4 i 4x4 | TARO | 22R | 114 | Petrol | 1989–1997 |
