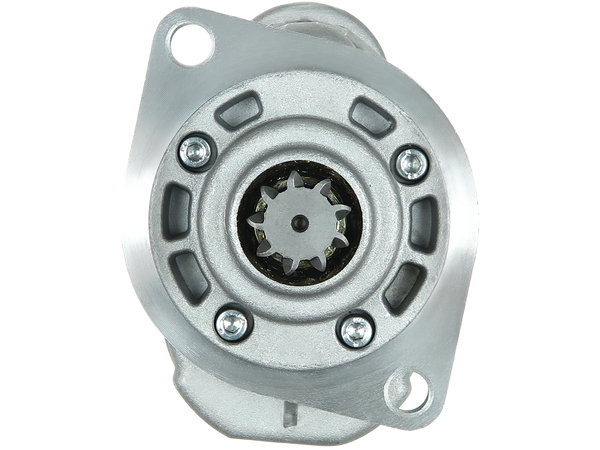

S9010
Startmotorer
STANDARD LINE
691 kr
Köp nu
| EAN | 5901259423839 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer |
3EFFE: PRSS020, STRS020 AS-PL: S9010 BOSCH: 0986015701 BOVEZ: STA0010R, STA0495R CARGO: 111214, F032111214 CASCO: CST48100AS, CST48100GS CEVAM: 3877 DELCO: DRS3369 EAI: 11801 ELECTROLOG: STRX728 ELSTOCK: 25-1448 ERA: 220160 HC PARTS: CS798 HELLA: 8EA732653-001 HERTH+BUSS: 42141310 KRAUF: STG0798 KUHNER: 10798 LOGISTIK: 331346 LUCAS: LRT00110, LRT110 MAGNETI MARELLI: 943207981010, MSRC798 MAGNETON: 141310, 443115141310, 443115141311, 443115142350, 443115614130, 9141310, 9141430 MEAT & DORIA: 5048300 POWERMAX: 88212972 PRESTOLITE: 20510110, M1204, M1204E PSH: 440.501.092.000, 440.501.092.110, 440.501.092.118, 440.501.092.208, 440.501.092.356, 440.501.092.440, S132.712, S148.770 REAL: 20408001BN, 20408001OE RNL: RNL1570 SANDO: 6048100.0, 6048100.1 SIDAT: S12MG0353A2 SIOM: MAV501000 STARDAX: STX200064 VALEO: 455977 VW: 115904001, 6U0911023, 6U0911023B, 6U0911023X WAI / TRANSPO: 31115N WOODAUTO: STR60401 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 199.00 |
| O.1 [ mm ] | 105.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
Passar i 65 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SKODA | 1.3 | FAVORIT Estate Van (785) | 781.13540 | 54 | Petrol | 1990–1992 |
| SKODA | 1.3 | FAVORIT Estate Van (785) | 781.135 | 60 | Petrol | 1989–1995 |
| SKODA | 1.3 | FAVORIT Forman (785) | 781.136 | 63 | Petrol | 1988–1991 |
| SKODA | 1.3 | FAVORIT Forman (785) | 136B | 68 | Petrol | 1994–1995 |
| SKODA | 1.3 | FAVORIT Forman (785) | 781.136I50 | 68 | Petrol | 1994–1995 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 135I | 54 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 136 | 63 | Petrol | 1992–1993 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 781.13540 | 57 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 781.13650 | 68 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 135B | 54 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 781.135 | 57 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 136I | 68 | Petrol | 1992–1997 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 781.136 | 63 | Petrol | 1992–1993 |
| SKODA | 1.3 | FAVORIT Pickup (787) | 135 | 54 | Petrol | 1992–1997 |
| SKODA | 1.3 | FELICIA Cube Van (6U5) | AMJ | 58 | Petrol | 1995–2000 |
| SKODA | 1.3 | FELICIA Cube Van (6U5) | 135L | 58 | Petrol | 1995–2000 |
| SKODA | 1.3 | FELICIA I (6U1) | AMG | 54 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I (6U1) | AMH | 68 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I (6U1) | 135L | 58 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I (6U1) | 135B | 54 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I (6U1) | 136B | 68 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I (6U1) | AMJ | 58 | Petrol | 1994–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | AMJ | 58 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | AMG | 54 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | AMH | 68 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | 135L | 58 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | 135B | 54 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Estate (6U5) | 136B | 68 | Petrol | 1995–1998 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | 135B | 54 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | AMG | 54 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | 136B | 68 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | AMH | 68 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | 135M | 54 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA I Pickup (6UF, 6U7) | 136M | 68 | Petrol | 1997–2002 |
| SKODA | 1.3 | FELICIA II (6U1) | AMH | 68 | Petrol | 1998–2001 |
| SKODA | 1.3 | FELICIA II (6U1) | AMJ | 58 | Petrol | 1998–2001 |
| SKODA | 1.3 | FELICIA II (6U1) | AMG | 54 | Petrol | 1998–2001 |
| SKODA | 1.3 | FELICIA II Estate (6U5) | AMH | 68 | Petrol | 1996–2001 |
| SKODA | 1.3 | FELICIA II Estate (6U5) | 781.136M | 68 | Petrol | 1996–2001 |
| SKODA | 1.3 | FELICIA II Estate (6U5) | 781.136B | 68 | Petrol | 1996–2001 |
| SKODA | 1.3 (135 E) | FAVORIT Forman (785) | 781.135 | 54 | Petrol | 1991–1995 |
| SKODA | 1.3 (135 E) | FAVORIT Forman (785) | 781.135I40 | 54 | Petrol | 1991–1995 |
| SKODA | 1.3 (135) | FAVORIT Forman (785) | 781.135 | 58 | Petrol | 1993–1993 |
| SKODA | 1.3 (135) | FAVORIT Forman (785) | 781.135 | 60 | Petrol | 1991–1995 |
| SKODA | 1.3 (135) | FAVORIT Forman (785) | 135 | 58 | Petrol | 1993–1993 |
| SKODA | 1.3 (136) | FAVORIT Forman (785) | 781.136 | 61 | Petrol | 1991–1995 |
| SKODA | 1.3 (781) | FAVORIT (781) | 781.13650 | 68 | Petrol | 1994–1994 |
| SKODA | 1.3 (781) | FAVORIT (781) | 136B | 68 | Petrol | 1994–1994 |
| SKODA | 1.3 (781) | FAVORIT (781) | 781.136I50 | 68 | Petrol | 1994–1994 |
| SKODA | 1.3 135 (781) | FAVORIT (781) | 781.135 | 58 | Petrol | 1991–1994 |
| SKODA | 1.3 135 (781) | FAVORIT (781) | 781.135 | 60 | Petrol | 1990–1994 |
| SKODA | 1.3 135 (781) | FAVORIT (781) | 781.135 | 57 | Petrol | 1991–1994 |
| SKODA | 1.3 135 X, LX, GLX (781) | FAVORIT (781) | 781.135B | 54 | Petrol | 1990–1994 |
| SKODA | 1.3 135 X, LX, GLX (781) | FAVORIT (781) | 781.135I40 | 54 | Petrol | 1990–1994 |
| SKODA | 1.3 135 X, LX, GLX (781) | FAVORIT (781) | 781.13540 | 54 | Petrol | 1990–1994 |
| SKODA | 1.3 135 X, LX, GLX (781) | FAVORIT (781) | 781.135E | 54 | Petrol | 1990–1994 |
| SKODA | 1.3 135L (781) | FAVORIT (781) | 781.135 | 58 | Petrol | 1989–1994 |
| SKODA | 1.3 136 (781) | FAVORIT (781) | 136L | 61 | Petrol | 1990–1994 |
| SKODA | 1.6 | FELICIA I (6U1) | AEE | 75 | Petrol | 1995–1998 |
| SKODA | 1.6 | FELICIA I Estate (6U5) | AEE | 75 | Petrol | 1995–1998 |
| SKODA | 1.6 | FELICIA I Pickup (6UF, 6U7) | AEE | 75 | Petrol | 1997–2002 |
| SKODA | 1.6 | FELICIA II (6U1) | AEE | 75 | Petrol | 1998–2001 |
| SKODA | 1.6 | FELICIA II Estate (6U5) | AEE | 75 | Petrol | 1998–2001 |
| SKODA | 115 S 1.1 | FAVORIT (781) | 781.115 | 52 | Petrol | 1989–1994 |
| VW | 1.6 | CADDY II Pickup (9U7) | AEE | 75 | Petrol | 1996–2000 |
