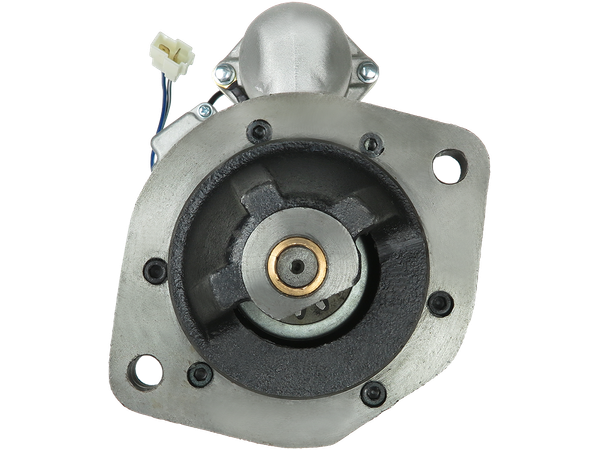

S9034
Startmotorer
STANDARD LINE
1739 kr
Köp nu
| EAN | 5901259424119 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
3EFFE: STRS758 AINDE: CGB-91750 AS-PL: S9034 AUTO MAGNETO: AM-2232 CEVAM: 8512 ELECTROLOG: STR8829, STR8851 HC PARTS: JS750 KOMATSU: 600-813-3320, 600-813-4400, 600-813-4421, 600-813-4422, 600-813-6210 KRAUF: STK0750, STK8750 NIKKO: 0-23000-1750, 0-23000-1752 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 13.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 368.00 |
| O.1 [ mm ] | 150.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 41 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | D31 | 4D105 | 0 | – | ||
| KOMATSU | D31 | 6D95L | 0 | – | ||
| KOMATSU | D31A | 6D95L | 0 | – | ||
| KOMATSU | D31A | 4D105 | 0 | – | ||
| KOMATSU | D31P | 6D95L | 0 | – | ||
| KOMATSU | D31P | 4D105 | 0 | – | ||
| KOMATSU | D31S | 4D105 | 0 | – | ||
| KOMATSU | D31S | 0 | – | |||
| KOMATSU | GD305 | 0 | – | |||
| KOMATSU | GD305-1 | 0 | – | |||
| KOMATSU | GD305A-1 | 0 | – | |||
| KOMATSU | GD313A-1 | 0 | – | |||
| KOMATSU | GD355A-1 | 0 | – | |||
| KOMATSU | GD405 | 0 | – | |||
| KOMATSU | GD405-2 | 0 | – | |||
| KOMATSU | GD405A-2 | 0 | – | |||
| KOMATSU | GD461 | 0 | – | |||
| KOMATSU | GD461A-1 | 0 | – | |||
| KOMATSU | GD510R-1 | 0 | – | |||
| KOMATSU | GD511-1 | 0 | – | |||
| KOMATSU | GD511A-1 | 0 | – | |||
| KOMATSU | PC100 | 0 | – | |||
| KOMATSU | PC120 | 6D95L | 0 | – | ||
| KOMATSU | PC120 | 4D95 | 0 | – | ||
| KOMATSU | PC120-3 | 6D95L | 0 | – | ||
| KOMATSU | PC120-3 | 4D95 | 0 | – | ||
| KOMATSU | PC150 | 6D95L | 0 | – | ||
| KOMATSU | PC150 | 4D95 | 0 | – | ||
| KOMATSU | PC150-3 | 4D95 | 0 | – | ||
| KOMATSU | PC150-3 | 6D95L | 0 | – | ||
| KOMATSU | PC180-3 | 4D95 | 0 | – | ||
| KOMATSU | PC180-3 | 6D95L | 0 | – | ||
| KOMATSU | PC200 | 6D95L | 0 | – | ||
| KOMATSU | PC200 | 4D95 | 0 | – | ||
| KOMATSU | PC210-5 | 6D95L | 0 | – | ||
| KOMATSU | PC210-5 | 4D95 | 0 | – | ||
| KOMATSU | PC210-5 | SA6D95L | 0 | – | ||
| KOMATSU | PF3W-1 | 6D95L | 0 | – | ||
| KOMATSU | PF3W-1 | 4D95 | 0 | – | ||
| KOMATSU | PW100-3 | 6D95L | 0 | – | ||
| KOMATSU | PW100-3 | 4D95 | 0 | – |
