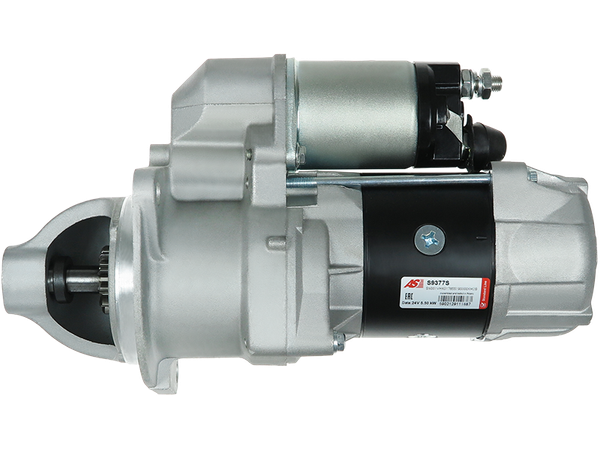

S9377S
Startmotorer
STANDARD LINE
1741 kr
Köp nu
| EAN | 5902129111887 |
| Tillverkare | AS-PL |
| Ersätter | SAWAFUJI |
| OE-nummer | 28100-18700 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 347.00 |
| O.1 [ mm ] | 140.00 |
| O.2 [ mm ] | 118.50 |
| O.3 [ mm ] | 106.50 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 13 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HINO | Engine | EC100 | 0 | 1984–2002 | ||
| HINO | Engine | H06CT | 0 | – | ||
| HINO | Engine | H06C | 0 | 1986–1995 | ||
| HINO | Engine | H07 | 0 | – | ||
| HINO | Engine | DM100 | 0 | – | ||
| HINO | Engine | H07D | 0 | 1989–2003 | ||
| HINO | Engine | DQ100 | 0 | 1976–1988 | ||
| HINO | Engine | EH700 | 0 | – | ||
| HINO | Engine | EH100 | 0 | 1984–2002 | ||
| HINO | Engine | H07CT(A) | 0 | – | ||
| HINO | Engine | H07CT | 0 | 1989–2003 | ||
| HINO | Engine | H08C | 0 | – | ||
| HINO | Engine | EH300 | 0 | – |
