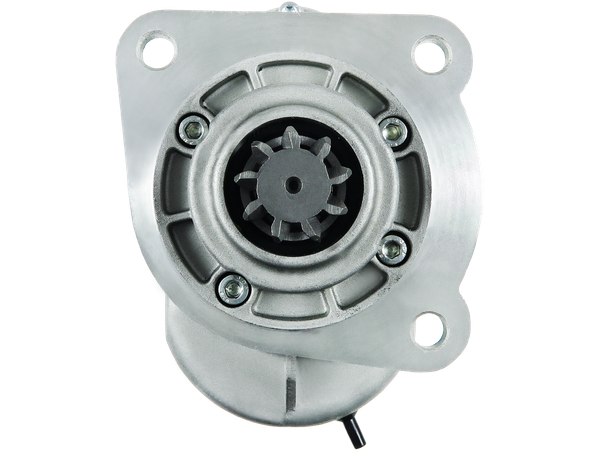

S9054
Startmotorer
STANDARD LINE
1019 kr
Köp nu
| EAN | 5901259437782 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer | 9142744 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.50 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 235.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 34 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1000S | 1000 | 8065.04.200 | 110 | 1976–1979 | |
| FIAT | 1300 | 1000 | CP3-100 | 129-131 | 1973–1976 | |
| FIAT | 1300S | 1000 | CP3-100 | 150 | 1976–1979 | |
| FIAT | 850 | 800 | C03-80 | 84-86 | 1969–1975 | |
| FIAT | 880 | 800 | C03-130 | 88 | 1978–1980 | |
| IVECO | 109-14 | ZETA | 8060.04.689 | 135 | 1983–1985 | |
| IVECO | 109-14 | ZETA | 8060.05.289 | 137-139 | 1985–1991 | |
| IVECO | 109-14 H | ZETA | 8060.04.689 | 135 | 1983–1985 | |
| IVECO | 109-14 H | ZETA | 8060.05.289 | 137-139 | 1985–1991 | |
| IVECO | 75 E 14, 75 E 14 P | EUROCARGO I-III | 8040.45.4000 | 136 | 1991–2015 | |
| IVECO | 75 E 14, 75 E 14 P | EUROCARGO I-III | 8040.45.4180 | 136 | 1991–2015 | |
| IVECO | 79-13 | ZETA | 8060.04.660 | 131 | 1979–1983 | |
| IVECO | 79-13 | ZETA | 8060.04.060 | 131 | 1979–1983 | |
| IVECO | 79-14 | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 79-14 H | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 79-14 H | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 V | ZETA | 8060.04.660 | 135 | 1983–1985 | |
| IVECO | 79-14 V | ZETA | 8060.05.280 | 137 | 1985–1991 | |
| IVECO | 95-14 | ZETA | 8060.04.669 | 135 | 1983–1985 | |
| IVECO | 95-14 H | ZETA | 8060.04.669 | 135 | 1983–1985 | |
| VOLVO | F 609 | F6 | D60A | 120 | 1975–1980 | |
| VOLVO | F 610 | F6 | TD60C | 147-154 | 1980–1986 | |
| VOLVO | F 611 | F6 | TD60C | 154 | 1980–1986 | |
| VOLVO | F 611 | F6 | D60A | 120 | 1975–1980 | |
| VOLVO | F 613,F 614 | F6 | TD60B | 174-180 | 1975–1986 | |
| VOLVO | F 613,F 614 | F6 | TD60A | 174-180 | 1975–1986 | |
| VOLVO | F 615 S | F6 | TD60B | 180 | 1978–1981 | |
| VOLVO | F 617 S | F6 | TD60B | 180 | 1978–1986 | |
| VOLVO | F 7 | F7 | TD70FS | 220 | 1978–1985 | |
| VOLVO | F 7 | F7 | TD70G | 220 | 1978–1985 | |
| VOLVO | F 7 | F7 | TD70FS | 245 | 1978–1985 | |
| VOLVO | F 7 | F7 | TD70F | 220 | 1978–1985 | |
| VOLVO | N7 | N7 | TD70ES | 211 | 1973–1980 |
