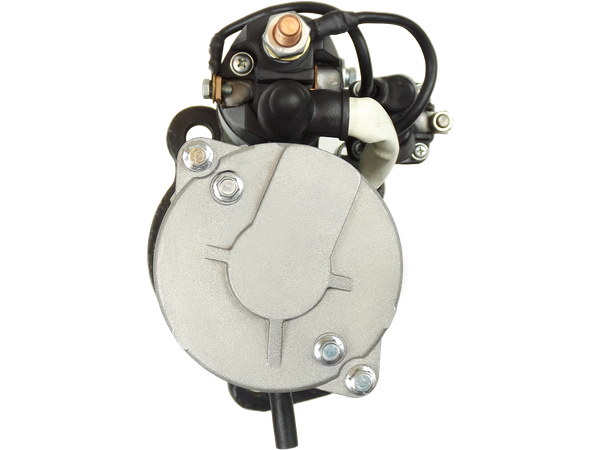

S9138
Startmotorer
STANDARD LINE
1892 kr
Köp nu
| EAN | 5901259489422 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer |
AS-PL: UD01987S BATE: 5423.3708000-10, ST142 02.490 ELECTROLOG: STR79119, STR79234 ISKRA / LETRIKA: 11.131.053, 11.131.522, 11.131.638, AZF4163, AZJ3367, AZJ3436, AZJ4163, IS1172, IS1228 MAHLE: 72740697, MS254, MS616 PSH: 361.505.104.310 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 3 |
| L.1 [ mm ] | 319.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 142.00 |
| O.3 [ mm ] | 34.00 |
| O.4 [ mm ] | 102.00 |
| C.1 [ mm ] | M16x1.5 |
| C.2 [ mm ] | M16x1.5 |
| C.3 [ mm ] | 17.00 |
| C.4 [ mm ] | M16x1.5 |
Passar i 20 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KAMAZ | 10.9 | 4208 | 7408.10 | 0 | – | |
| KAMAZ | 10.9 | 4211 | 7403.10 | 0 | – | |
| KAMAZ | 10.9 | 52997 | 740.13-260 | 0 | – | |
| KAMAZ | 10.9 | 52999 | 740.11-240 | 0 | – | |
| KAMAZ | 10.9 | 52999 | 740.22-240 | 0 | – | |
| KAMAZ | 10.9 | 53125 | 740.31-240 | 0 | – | |
| KAMAZ | 10.9 | 5320 | 740.10 | 0 | – | |
| KAMAZ | 10.9 | 5511 | 740.11-240 | 0 | – | |
| KAMAZ | 10.9 | 6540 | 740.13-260 | 0 | – | |
| KAMAZ | 10.9 | Engine | 740.11-240 | 0 | – | |
| KAMAZ | 10.9 | Engine | 740.22-240 | 0 | – | |
| KAMAZ | 10.9 | Engine | 7408.10 | 0 | – | |
| KAMAZ | 10.9 | Engine | 740.10 | 0 | – | |
| KAMAZ | 10.9 | Engine | 740.13-260 | 0 | – | |
| KAMAZ | 10.9 | Engine | 7403.10 | 0 | – | |
| LIAZ | 10.8 4x2 | 5256 | 7403.10 | 0 | – | |
| LIAZ | 10.9 4x2 | 5256 | 740.13-260 | 0 | – | |
| LIAZ | 10.9 4x2 | 5256 | 740.10 | 0 | – | |
| LIAZ | 10.9 4x2 | 5256.40 | 740.11-240 | 0 | – | |
| LIAZ | 10.9 4x2 | 52565 | 7408.10 | 0 | – |
