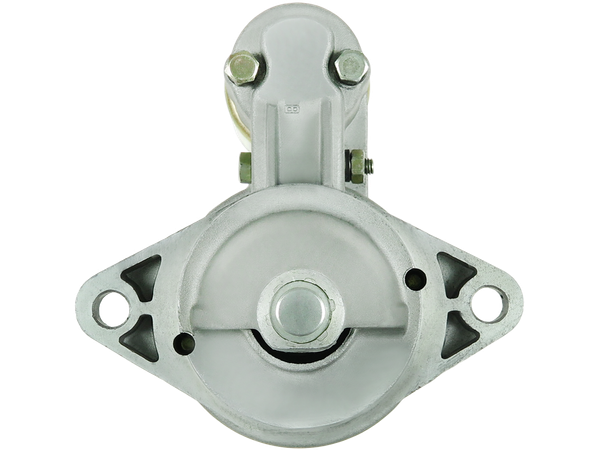

S9151
Startmotorer
STANDARD LINE
604 kr
Köp nu
| EAN | 5901259495188 |
| Tillverkare | AS-PL |
| Ersätter | DAIHATSU |
| OE-nummer |
AS-PL: S9151, UD02216S AUTOELECTRO: AES7120 CASCO: CST40115, CST40115AS, CST40115ES, CST40115GS, CST40115OS, CST40115RS CEVAM: 9644 DAIHATSU: 28100-48708, 28100-87708, 28100-87722, 28100-87727, 28100-87734 DENSO: 028000-7200, 028000-9490, 128000-4530, 128000-4531, 128000-4532, 128000-5650 ELECTROLOG: STR6212 ELSTOCK: 25-1040 KUHNER: 20376 LAUBER: 22.5376 LUCAS: LRS00720, LRS720 MAGNETI MARELLI: 943241100010 NISSAN: 2330087709 PSH: 110.004.082, 110.004.082.225, S143.593, S151.407 REAL: 20432511BN SANDO: 6040115 SIOM: MAV5965 SOVEREIGN: SS307 STARDAX: STX201349 TOYOTA: 2810048705, 2810087214, 2810087700, 2810087725, 2810087728 VALEO: 455598 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 74.00 |
| B-storlek [ mm ] | 25.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 235.00 |
| O.1 [ mm ] | 115.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAIHATSU | 1.0 | CHARADE IV (G200, G202) | CB22 | 52 | Petrol | 1994–1996 |
| DAIHATSU | 1.0 (G100) | CHARADE III (G100, G101, G102) | CB23 | 52 | Petrol | 1987–1992 |
| DAIHATSU | 1.0 (G100) | CHARADE III (G100, G101, G102) | CB90 | 56 | Petrol | 1989–1992 |
| DAIHATSU | 1.0 (G100) | CHARADE III (G100, G101, G102) | CB90 | 54 | Petrol | 1990–1992 |
| DAIHATSU | 1.0 (G11) | CHARADE II (G11, G30) | CB23 | 52 | Petrol | 1983–1987 |
| DAIHATSU | 1.0 (G11) | CHARADE II (G11, G30) | CB22 | 52 | Petrol | 1983–1987 |
| DAIHATSU | 1.0 (G11) | CHARADE II (G11, G30) | CB20 | 52 | Petrol | 1983–1987 |
| DAIHATSU | 1.0 D (G101) | CHARADE III (G100, G101, G102) | CL11 | 37 | Diesel | 1987–1992 |
| DAIHATSU | 1.0 GTi (G100) | CHARADE III (G100, G101, G102) | CB80T | 101 | Petrol | 1987–1992 |
| DAIHATSU | 1.0 Turbo (G100) | CHARADE III (G100, G101, G102) | CB61 | 68 | Petrol | 1987–1990 |
| DAIHATSU | 1.0 Turbo (G11, G11R) | CHARADE II (G11, G30) | CB60 | 68 | Petrol | 1983–1987 |
