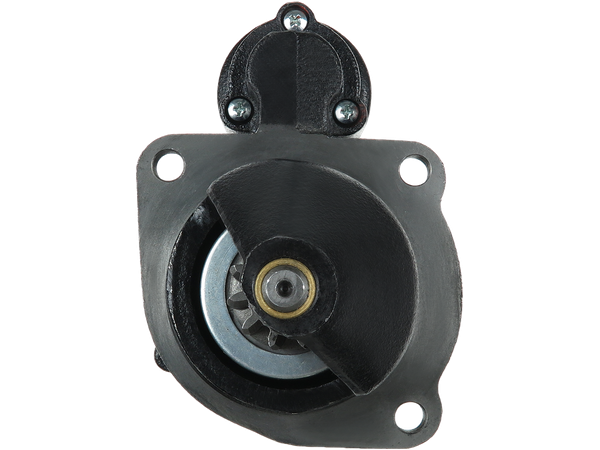

S9175
Startmotorer
STANDARD LINE
1413 kr
Köp nu
| EAN | 5902129004769 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZE4168 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 10.11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 286.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 19 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 68 | CS | 68 | 2001–2004 | ||
| CRYSTAL TRACTOR | ORION 13 | 0 | – | |||
| MASSEY FERGUSON | MF 5300 | 0 | – | |||
| MASSEY FERGUSON | 3.3 | MF 3600 | 33CTA | 0 | 1986– | |
| VALTRA | A65, A75 | A SERIES | 64-75 | 2002–2008 | ||
| VALTRA | A72 | A SERIES | 74 | 2008–2011 | ||
| VALTRA | A83, A93 | A SERIES | 33CTA | 88-101 | 2011– | |
| VALTRA | N113, N123 | N SERIES | 131-143 | 2012– | ||
| VALTRA | N93, N103 | N SERIES | 99-112 | 2012– | ||
| ZETOR | 3320 | Major | Z5201 | 45 | 1992–2006 | |
| ZETOR | 3340 | Major | Z5201 | 45 | 1992–2006 | |
| ZETOR | 4320 | Major | Z6201 | 57 | 1992–2006 | |
| ZETOR | 4340 | Major | Z6201 | 57 | 1992–2006 | |
| ZETOR | 5320 | Major | Z7201 | 63 | 1992–2006 | |
| ZETOR | 5340 | Major | Z7201 | 63 | 1992–2006 | |
| ZETOR | 6320, 7320 | Major | Z7701 | 68-78 | 1992–2006 | |
| ZETOR | 6320, 7320 | Major | Z7301 | 68-78 | 1992–2006 | |
| ZETOR | 6340, 7340 | Major | Z7301 | 68-78 | 1992–2006 | |
| ZETOR | 6340, 7340 | Major | Z7701 | 68-78 | 1992–2006 |
