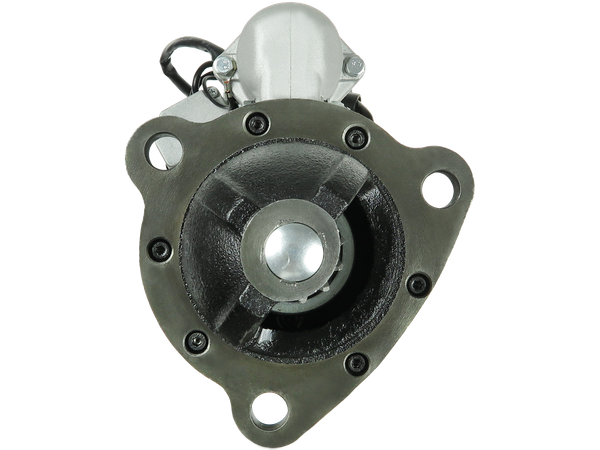

S9182
Startmotorer
STANDARD LINE
1586 kr
Köp nu
| EAN | 5902129007654 |
| Tillverkare | AS-PL |
| Ersätter | KOMATSU |
| OE-nummer |
AINDE: CGB-91530 AS-PL: S9182, UD11089S DIXIE: 246-30224D, S-8828D ELECTROLOG: STR8875 ELSTOCK: 45-1395 KOMATSU: 600-813-3460 LUCAS: LRS01875, LRS1875 NIKKO: 0-23000-1170, 0-23000-1530 PSH: 941.515.123, S136.307 WAI / TRANSPO: UNIT BOM 185-234 WOODAUTO: STR75226 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 25.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 372.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 17.00 |
| C.2 [ mm ] | 17.00 |
| C.3 [ mm ] | 17.00 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | PW150-1 | 6D95L-1 | 0 | 2000–2006 | ||
| KOMATSU | PW150-3 | S6D95L | 0 | 1991–2005 | ||
| KOMATSU | WA100 | 6D95L-1 | 0 | 1986–2002 | ||
| KOMATSU | WA100-1 | 6D95L-1 | 0 | 1998–2006 | ||
| KOMATSU | WA100-3 | 6D95L-1 | 0 | 2000–2006 | ||
| KOMATSU | WA100-3 | 6D95L | 0 | 1995–2006 | ||
| KOMATSU | WA120-1 | 6D95L | 0 | 1995–2006 | ||
| KOMATSU | WA150 | S6D95L | 0 | 1991–2005 | ||
| KOMATSU | WA150 | 6D95L-1 | 0 | 1986–2002 | ||
| KOMATSU | WA150-1 | S6D95L-1 | 0 | 1988–2006 | ||
| KOMATSU | WA150-3 | 6D95L-1 | 0 | 2000–2006 | ||
| KOMATSU | WA150-3 | S6D95L | 0 | 1995–2006 | ||
| KOMATSU | WA180 | 6D95L | 0 | 1995–2006 | ||
| KOMATSU | WA180-1 | SA6D95L-1 | 0 | 1995–2006 | ||
| KOMATSU | WA180-1 | S6D95L-1 | 0 | 2000–2006 | ||
| KOMATSU | WR11 | 6D95L | 0 | 1991–2005 |
