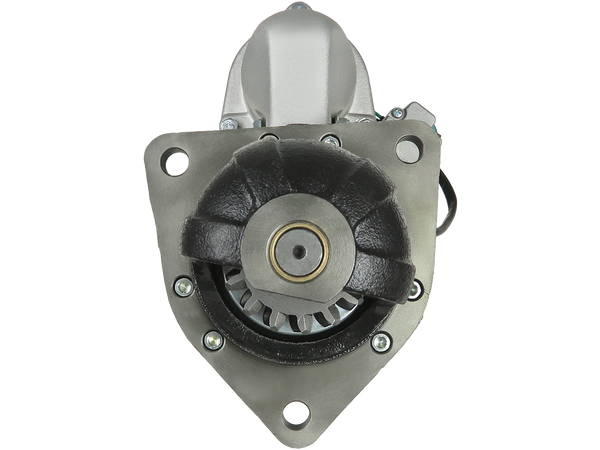

S9189
Startmotorer
STANDARD LINE
2494 kr
Köp nu
| EAN | 5902129007739 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
ALANKO: 10439538 AS-PL: S9189, UD11097S AUTOTEAM: SNK627 CASCO: CST50627GS ELECTROLOG: STR8877 KUHNER: 255827, 255827N MITSUBISHI: 37766-20200, 37766-20201 NIKKO: 0-23000-7170, 0-23000-7171, 0-23000-7172, 0-23000-7175 PSH: 151.518.153.140, 151.518.153.148, S130.268 REAL: 20446726OE SANDO: 6050627.1 WOODAUTO: NIK0230007171, STR75235 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 50.00 |
| Antal kuggar [ qty. ] | 15 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 408.00 |
| O.1 [ mm ] | 143.00 |
| O.2 [ mm ] | 139.00 |
| O.3 [ mm ] | 117.00 |
| C.1 [ mm ] | 13.00 |
| C.2 [ mm ] | 13.00 |
| C.3 [ mm ] | 13.00 |
Passar i 1 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | Engine | 0 | – |
