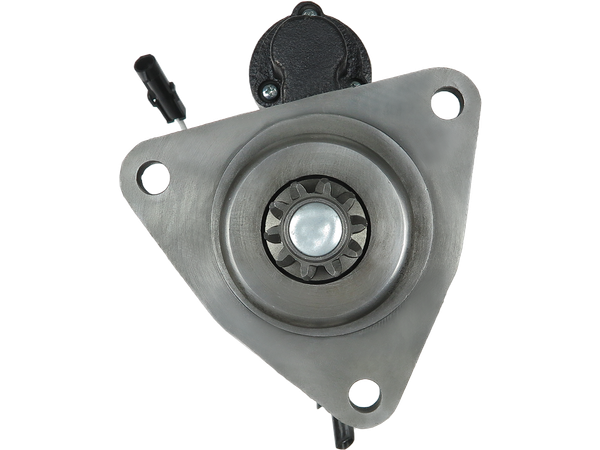

S9214S
Startmotorer
STANDARD LINE
1510 kr
Köp nu
| EAN | 5902129110378 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.830 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 4.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 47.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 327.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 235 | MAGNUM | 235 | 2011– | ||
| CASE IH | 260 | MAGNUM | 257 | 2011– | ||
| CASE IH | 290 | MAGNUM | 284 | 2011– | ||
| CASE IH | 315 | MAGNUM | 311 | 2011– | ||
| CASE IH | 340 | MAGNUM | 340 | 2011– | ||
| CASE IH | 370 | MAGNUM | 370 | 2012– | ||
| FIAT | Engine | 0 | – | |||
| NEW HOLLAND | T8010 | CDC | 0 | 2006– | ||
| NEW HOLLAND | T8020 | 0 | 2006–2011 | |||
| NEW HOLLAND | T8030 | CDC | 0 | 2006– | ||
| NEW HOLLAND | T8040 | CDC | 0 | – | ||
| NEW HOLLAND | 8.3 | TG215 | 0 | 2008– | ||
| NEW HOLLAND | 8.3 | TG245 | 0 | 2008– | ||
| NEW HOLLAND | 8.3 | TG275 | 0 | 2008– | ||
| NEW HOLLAND | 9.0 | T8050 | CDC | 0 | – | |
| NEW HOLLAND | 9.0 | T9020 | CDC | 0 | 2007– |
