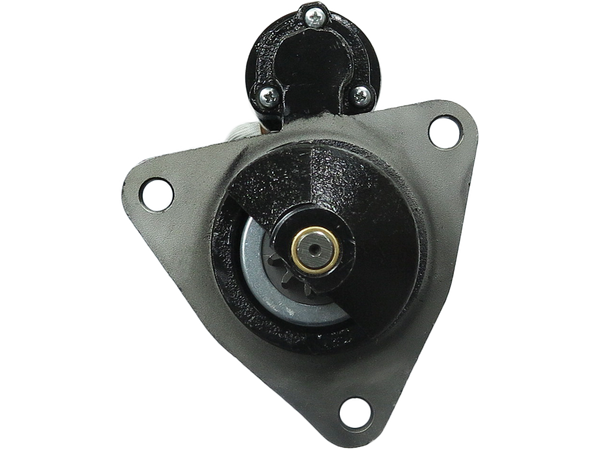

S9233
Startmotorer
STANDARD LINE
1507 kr
Köp nu
| EAN | 5902129012559 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.300 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 4.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.50 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 321.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 69 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1620 | D358 | 0 | 1985–1992 | ||
| CASE IH | 1620 | D466 | 0 | 1985–1992 | ||
| CASE IH | 1620 | D436 | 0 | 1985–1992 | ||
| CASE IH | 1640 | D436 | 0 | 1985–1992 | ||
| CASE IH | 1640 | D466 | 0 | 1985–1992 | ||
| CASE IH | 1644 | 0 | 1993–1995 | |||
| CASE IH | 1666 | 0 | 1993–1997 | |||
| CASE IH | 1668 | 0 | 1993–1997 | |||
| CASE IH | 1670 | DT466C | 0 | 1989–1991 | ||
| CASE IH | 1680 | DT466 | 0 | 1985–1992 | ||
| CASE IH | 1680 | D436 | 0 | 1985–1992 | ||
| CASE IH | 1688 | 0 | 1992–1994 | |||
| CASE IH | 1690 | DT466C | 0 | 1985–1992 | ||
| CASE IH | 1822 | 6-590 | 0 | 1986–1992 | ||
| CASE IH | 1822 | 6-830 | 0 | 1986–1992 | ||
| CASE IH | 1844 | 6-590 | 0 | 1986–1992 | ||
| CASE IH | 1844 | 6-830 | 0 | 1986–1992 | ||
| CASE IH | 1896 | 6-359 | 0 | 1984–1989 | ||
| CASE IH | 1896 | 6-590 | 0 | 1984–1989 | ||
| CASE IH | 2055 | 0 | 1990– | |||
| CASE IH | 2055 | 6TA-830 | 0 | 1996–1998 | ||
| CASE IH | 2090 | 6-504 | 0 | 1978–1988 | ||
| CASE IH | 2094 | 6-504 | 0 | 1983–1988 | ||
| CASE IH | 2096 | 6-359 | 0 | 1984–1990 | ||
| CASE IH | 2144 | 0 | 1994–1996 | |||
| CASE IH | 2155 | 6TA-830 | 0 | 1996–1998 | ||
| CASE IH | 2166 | 0 | 1994–1996 | |||
| CASE IH | 2188 | 0 | 1994–1996 | |||
| CASE IH | 2290 | 6-504 | 0 | 1978–1988 | ||
| CASE IH | 2294 | 6T-590 | 0 | 1983–1987 | ||
| CASE IH | 2294 | 504BD | 0 | 1983–1987 | ||
| CASE IH | 2366 | 0 | 1997– | |||
| CASE IH | 2390 | 504 | 0 | 1978–1988 | ||
| CASE IH | 2394 | 504BD | 0 | 1983–1987 | ||
| CASE IH | 2394 | 6T-590 | 0 | 1983–1987 | ||
| CASE IH | 2470 | 504 | 0 | 1979–1988 | ||
| CASE IH | 2590 | 504 | 0 | 1980–1983 | ||
| CASE IH | 2594 | 6T-590 | 0 | 1983–1987 | ||
| CASE IH | 2594 | 504BD | 0 | 1983–1987 | ||
| CASE IH | 2670 | 504 | 0 | 1979–1988 | ||
| CASE IH | 2870 | 6-674 | 0 | 1979–1988 | ||
| CASE IH | 3294 | 6-504 | 0 | 1983–1985 | ||
| CASE IH | 3394 | 6-504 | 0 | 1985–1988 | ||
| CASE IH | 3594 | 6-504 | 0 | 1985–1988 | ||
| CASE IH | 4490 | 6-504 | 0 | 1984–1988 | ||
| CASE IH | 4494 | 6-504 | 0 | 1984–1987 | ||
| CASE IH | 4690 | 6-504 | 0 | 1984–1990 | ||
| CASE IH | 4694 | 6-504 | 0 | 1984–1990 | ||
| CASE IH | 4890 | 6-674 | 0 | 1984–1988 | ||
| CASE IH | 4894 | 6-674 | 0 | 1984–1990 | ||
| CASE IH | 4994 | 0 | 1986–1990 | |||
| CASE IH | 7110 | 6-505 | 0 | 1987–1993 | ||
| CASE IH | 7120 | 6-505 | 0 | 1987–1993 | ||
| CASE IH | 7130 | 6-505 | 0 | 1987–1993 | ||
| CASE IH | 7140 | 6-505 | 0 | 1987–1993 | ||
| CASE IH | 7210 | 6-505 | 0 | 1993–1996 | ||
| CASE IH | 7220 | 6-505 | 0 | 1993–1996 | ||
| CASE IH | 7230 | 6-505 | 0 | 1993–1996 | ||
| CASE IH | 7240 | 6-505 | 0 | 1993–1996 | ||
| CASE IH | 7250 | 6-505 | 0 | 1993–1996 | ||
| CASE IH | 8930 | 505 | 0 | 1996– | ||
| CASE IH | 9110 | 0 | 1986–1993 | |||
| CASE IH | 9130 | 0 | 1986–1993 | |||
| CASE IH | 8.3 | 9210 | 0 | 1990–1996 | ||
| CASE IH | 8.3 | 9230 | 0 | 1990–1996 | ||
| CASE IH | 8.3 | 9240 | 0 | 1990–1996 | ||
| CASE IH | 8.3 | 9310 | 0 | 1995–2000 | ||
| CASE IH | 8.3 | 9330 | 0 | 1995–2000 | ||
| DAEWOO | 14.6 | Engine | V158T1 | 0 | – |
