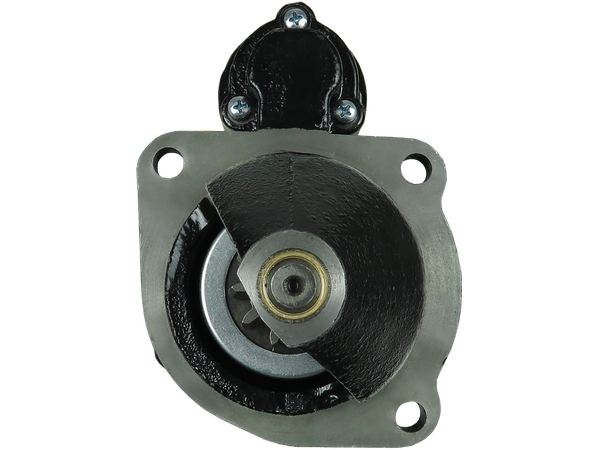

S9289S
Startmotorer
STANDARD LINE
1440 kr
Köp nu
| EAN | 5902129050056 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZE4189 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 49.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 287.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 12 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| JOHN DEERE | 6700 | 0 | 1997– | |||
| JOHN DEERE | 6700 S | 0 | 1997– | |||
| JOHN DEERE | 2.9 | Engine | 3029DF | 0 | – | |
| JOHN DEERE | 2.9 | Engine | 3029TF | 0 | – | |
| JOHN DEERE | 2.9 | Engine | 3029HFU70 | 0 | – | |
| JOHN DEERE | 3.9 | Engine | 4039TF | 0 | – | |
| JOHN DEERE | 3.9 | Engine | 4039DF | 0 | – | |
| JOHN DEERE | 4.5 | Engine | 4045TF | 0 | – | |
| JOHN DEERE | 4.5 | Engine | 4045HF | 0 | – | |
| JOHN DEERE | 4.5 | Engine | 4045DF | 108 | 1999–2006 | |
| JOHN DEERE | 6.8 | Engine | 6068TF | 0 | – | |
| JOHN DEERE | 6.8 | Engine | 6068HF275 | 0 | – |
