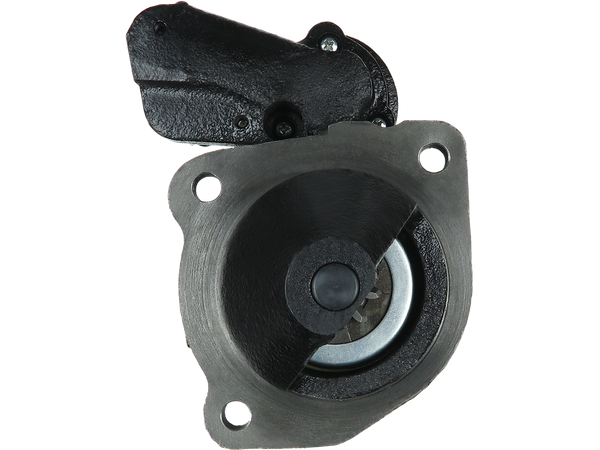

S9294S
Startmotorer
STANDARD LINE
1502 kr
Köp nu
| EAN | 5902129110200 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.864 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 29.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 325.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 10.50 |
| C.2 [ mm ] | 10.50 |
| C.3 [ mm ] | 10.50 |
Passar i 126 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BOMAG | 4.1 | BW 27 RH-41 | TCD4,1 | 0 | – | |
| BOMAG | 4.8 | BF 600 C HCE | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BF 600 C HSE | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BF 600 P HCE | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BF 600 P HSE | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 211 D-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 211 PD-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 D-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 DH-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 DH-4 BVC | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 DH-4 BVC/P | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 DH-4/P | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 DI-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 213 PDH-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 214 D-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 214 DH-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 214 PDH-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 216 D-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 216 PD-4 | TCD2013 | 0 | – | |
| BOMAG | 4.8 | BW 219 DH-4 | TCD2012 | 0 | – | |
| BOMAG | 4.8 | BW 219 PDH-4 | TCD2012 | 0 | – | |
| BOMAG | 4.8 | BW 226 DI-4 BVC | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BF 800 C S 500 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BF 800 C S 600 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BF 800 P S 500 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BF 800 P S 600 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 216 DH-4 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 216 PDH-4 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 219 BVC-5 | TCD6,1 | 0 | – | |
| BOMAG | 6.1 | BW 219 D-4 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 219 D-4I | TCD6,1 | 0 | – | |
| BOMAG | 6.1 | BW 219 PD-4 | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 226 DH-4 BVC | TCD2012 | 0 | – | |
| BOMAG | 6.1 | BW 226 DH-4I | TCD6,1 | 0 | – | |
| BOMAG | 6.1 | BW 226 DH-4I BVC | TCD6,1 | 0 | – | |
| BOMAG | 6.1 | BW 226 RC-4 BVC | TCD2012 | 0 | – | |
| BOMAG | 7.2 | BC 462 EB | TCD2013 | 0 | – | |
| BOMAG | 7.2 | BW 226 DH-4 | TCD2013 | 0 | – | |
| BOMAG | 7.2 | BW 226 PHD-4 | TCD2012 | 0 | – | |
| BOMAG | 7.2 | BW 332 DEEP IMP | TCD2013 | 0 | – | |
| BOMAG | 7.2 | BW 332 DH-4 BVC | TCD2013 | 0 | – | |
| BRAEUTIGAM | 6.1 | 160-40 | TCD6,1 | 0 | – | |
| BRAEUTIGAM | 6.1 | 165-40 | TCD6,1 | 0 | – | |
| DEUTZ-FAHR | 5100, 5100 TTV | Series 5 | TCD3.6L04Tier4i | 95 | 2013– | |
| DEUTZ-FAHR | 5110, 5110 TTV | Series 5 | TCD3.6L04Tier4i | 105 | 2013– | |
| DEUTZ-FAHR | 5120 C | Series 5 C | TCD3.6L04Tier4i | 113 | 2013– | |
| DEUTZ-FAHR | 5120, 5120 TTV | Series 5 | TCD3.6L04Tier4i | 113 | 2013– | |
| DEUTZ-FAHR | 5130, 5130 TTV | Series 5 | TCD3.6L04Tier4i | 120 | 2013– | |
| DEUTZ-FAHR | 6120.4 AGROTRON | Series 6 | TCD4.1L044V | 118 | 2012– | |
| DEUTZ-FAHR | 6130.4 AGROTRON | Series 6 | TCD4.1L044V | 128 | 2012– | |
| DEUTZ-FAHR | 6140 AGROTRON | Series 6 | TCD6.1L064V | 144 | 2012– | |
| DEUTZ-FAHR | 6140.4 AGROTRON | Series 6 | TCD4.1L044V | 144 | 2012– | |
| DEUTZ-FAHR | 6150 AGROTRON | Series 6 | TCD6.1L064V | 154 | 2012– | |
| DEUTZ-FAHR | 6150.4 AGROTRON | Series 6 | TCD4.1L044V | 154 | 2012– | |
| DEUTZ-FAHR | 6160 AGROTRON | Series 6 | TCD6.1L064V | 166 | 2012– | |
| DEUTZ-FAHR | 6160.4 AGROTRON | Series 6 | TCD4.1L044V | 166 | 2012– | |
| DEUTZ-FAHR | 6180 AGROTRON | Series 6 | TCD6.1L064V | 177 | 2012– | |
| DEUTZ-FAHR | 6190 AGROTRON | Series 6 | TCD6.1L064V | 193 | 2012– | |
| DEUTZ-FAHR | 6190 AGROTRON | Series 6 | TCD6.1L064V | 184 | 2012– | |
| DEUTZ-FAHR | 6210 AGROTRON | Series 6 | TCD6.1L064V | 209 | 2013– | |
| DEUTZ-FAHR | 7210 AGROTRON | Series 7 | TCD6.1L064V | 205 | 2012– | |
| DEUTZ-FAHR | 7230 AGROTRON | Series 7 | TCD6.1L064V | 220 | 2012– | |
| DEUTZ-FAHR | 7250 AGROTRON | Series 7 | TCD6.1L064V | 258 | 2012– | |
| FENDT | 724 | Vario | 237 | 2010– | ||
| GEKO | 3.6 | 40003 ED-S/DEDA | BF4M2011 | 0 | – | |
| GEKO | 4.0 | 60003 ED-S/DEDA | BF4M2012 | 0 | – | |
| GEKO | 4.0 | 60010 ED-S/DEDA | BF4M2012C | 0 | – | |
| GEKO | 4.8 | 100003 ED-S/DEDA | BF4M1013E | 0 | – | |
| GEKO | 4.8 | 100010 ED-S/DEDA | BF4M1013EC | 0 | – | |
| GEKO | 4.8 | 130003 ED-S/DEDA | BF4M1013FC | 0 | – | |
| GEKO | 4.8 | 130010 | BF4M1013FC | 0 | – | |
| GEKO | 4.8 | 85003 ED-S/DEDA | BF4M1013E | 0 | – | |
| GEKO | 4.8 | 85010 ED-S/DEDA | BF4M1013E | 0 | – | |
| HAMM | 4.1 | H 11i | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 11i P | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 13i | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 13i P | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 13i Vio | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 16i | TCD4,1 | 0 | – | |
| HAMM | 4.1 | H 16i P | TCD4,1 | 0 | – | |
| HAMM | 4.1 | HD+ 120i VO | TCD4,1 | 0 | – | |
| HAMM | 4.1 | HD+ 120i VV | TCD4,1 | 0 | – | |
| HAMM | 4.1 | HD+ 140i VO | TCD4,1 | 0 | – | |
| HAMM | 4.1 | HD+ 140i VV | TCD4,1 | 0 | – | |
| HAMM | 6.1 | H 18i | TCD6,1 | 0 | – | |
| HAMM | 6.1 | H 18i P | TCD6,1 | 0 | – | |
| HAMM | 6.1 | H 20i | TCD6,1 | 0 | – | |
| HAMM | 6.1 | H 20i P | TCD6,1 | 0 | – | |
| HAMM | 6.1 | H 25i | TCD6,1 | 0 | – | |
| HAMM | 6.1 | H 25i P | TCD6,1 | 0 | – | |
| HURLIMANN | 3.6 | 100 V-Drive | TCD3,6 | 0 | 2013– | |
| HURLIMANN | 3.6 | 110 V-Drive | TCD3,6 | 0 | 2013– | |
| HURLIMANN | 3.6 | 120 V-Drive | TCD3,6 | 0 | 2013– | |
| HURLIMANN | 3.6 | 130 V-Drive | TCD3,6 | 0 | 2013– | |
| KHD | 7.2 | Engine | TCD2013 | 0 | 2006– | |
| LAMBORGHINI | 100, 100 VRT | NITRO | 99 | 2013– | ||
| LAMBORGHINI | 110, 110 VRT | NITRO | 110 | 2013– | ||
| LAMBORGHINI | 120, 120 VRT | NITRO | 118 | 2013– | ||
| LAMBORGHINI | 120.4, 120.4 VRT | SPARK | 114 | 2013– | ||
| LAMBORGHINI | 130, 130 VRT | NITRO | 126 | 2013– | ||
| LAMBORGHINI | 130.4, 130 VRT | SPARK | 124 | 2013– | ||
| LAMBORGHINI | 140.4, 140.4 VRT | SPARK | 141 | 2013– | ||
| LAMBORGHINI | 150 | SPARK | 141 | 2013– | ||
| LAMBORGHINI | 150.4, 450.4 VRT | SPARK | 140 | 2013– | ||
| LAMBORGHINI | 160, 160 VRT | SPARK | 163 | 2013– | ||
| LAMBORGHINI | 160.4, 160.4 VRT | SPARK | 154 | 2013– | ||
| LAMBORGHINI | 180, 180 VRT | SPARK | 174 | 2013– | ||
| LAMBORGHINI | 190, 190 VRT | SPARK | 193 | 2013– | ||
| LAMBORGHINI | 210 VRT | MACH | TCD6.1L064V | 205 | 2013– | |
| LAMBORGHINI | 230 VRT | MACH | TCD6.1L064V | 220 | 2013– | |
| LAMBORGHINI | 250 VRT | MACH | TCD6.1L064V | 238 | 2013– | |
| MATROT | 4.0 | Helios 36 | 0 | – | ||
| MATROT | 6.1 | Expert | 0 | – | ||
| SAME | 150 | FORTIS | TCD6.1L064V | 150 | 2012– | |
| SAME | 150.4 | FORTIS | TCD4.1L044V | 149 | 2012– | |
| SAME | 160 | FORTIS | TCD6.1L064V | 166 | 2012– | |
| SAME | 160.4 | FORTIS | TCD4.1L044V | 166 | 2012– | |
| SAME | 180 | FORTIS | TCD6.1L064V | 175 | 2012– | |
| SAME | 190 | FORTIS | TCD6.1L064V | 193 | 2012– | |
| SAME | 200 | AUDAX ST | TCD6.1L064V | 197 | 2013– | |
| SAME | 220 | AUDAX ST | TCD6.1L064V | 222 | 2013– | |
| SCHAFFER | 4.1 | 9660 T | TCD4,1 | 0 | – | |
| SCHAFFER | 6.1 | 9380 T | TCD6,1 | 0 | – | |
| WEIDEMANN | 4.0 | 8080 CX120 | TCD2012 | 0 | – | |
| ZETOR | 6.1 | Crystal 150 | TCD6.1L6 | 0 | – | |
| ZETOR | 6.1 | Crystal 160 | TCD6.1L6 | 0 | – |
