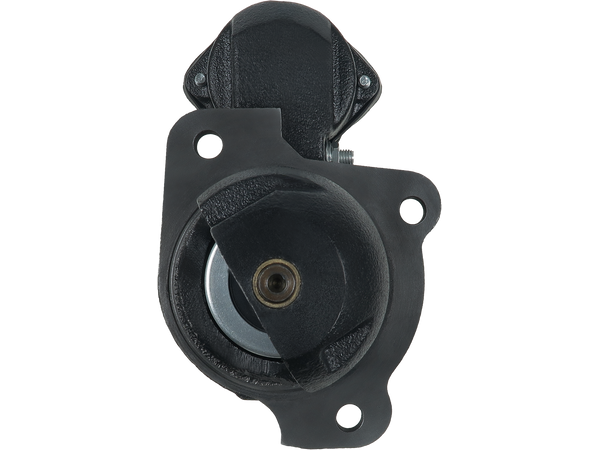

S1293S
Startmotorer
STANDARD LINE
1501 kr
Köp nu
| EAN | 5902129243045 |
| Tillverkare | AS-PL |
| Ersätter | DELCO |
| OE-nummer | 1109143 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 348.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 27 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1845 | 188D | 0 | 1975–1982 | ||
| CASE IH | 1845S | 188D | 0 | 1975–1982 | ||
| CASE IH | 188 | 188 | 0 | 1975–1978 | ||
| CASE IH | 188D | 188 | 0 | 1975–1978 | ||
| CASE IH | 310G | D-188 | 0 | 1964–1970 | ||
| CASE IH | 3300 | D-188 | 0 | 1979–1980 | ||
| CASE IH | 3330 | D-188 | 0 | 1979–1980 | ||
| CASE IH | 350 | 188D | 0 | 1973–1982 | ||
| CASE IH | 450 | 207 | 0 | 1973–1978 | ||
| CASE IH | 530 | 4-188 | 0 | 1965–1970 | ||
| CASE IH | 530 | 0 | 1966–1969 | |||
| CASE IH | 70+4 | 207 | 0 | 1970–1979 | ||
| CASE IH | 85MR2 | D-188 | 0 | 1970–1979 | ||
| CASE IH | 85MR2 | G-188 | 0 | 1970–1979 | ||
| CASE IH | DH5 | 207 | 0 | 1977–1986 | ||
| CASE IH | DH5 | 188 | 0 | 1977–1986 | ||
| CASE IH | DH5B | 207 | 0 | 1977–1986 | ||
| CASE IH | TF1000 | 207 | 0 | 1970–1980 | ||
| CASE IH | 3.1 | 350B | 188D | 52 | diesel | 1973–1982 |
| CASE IH | 3.1 | 480B | G188D | 52 | diesel | 1974–1978 |
| CASE IH | 3.1 | 580 | 188 | 0 | 1966–1971 | |
| CASE IH | 3.1 | 580B | 188 | 48 | diesel | 1971–1978 |
| CASE IH | 3.1 | 584D | 188 | 0 | 1984–1988 | |
| CASE IH | 3.1 | 585D | 188 | 48 | diesel | 1975–1988 |
| CASE IH | 3.1 | 586D | 188 | 48 | diesel | 1975–1988 |
| CASE IH | 3.4 | 584C | 207 | 0 | 1979–1988 | |
| DROTT | 85RM2 | 188 | 0 | 1971–1978 |
