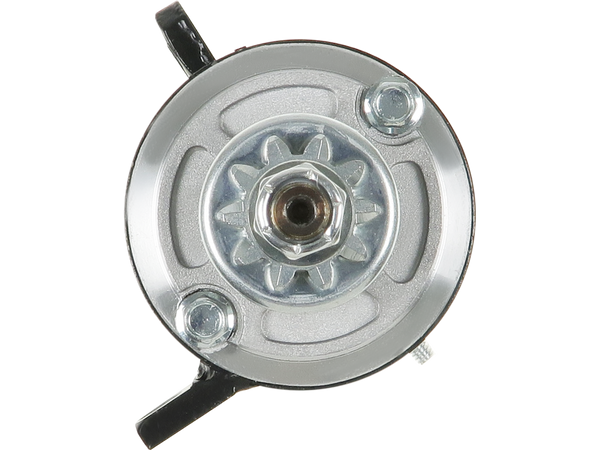

S9564S
Startmotorer
STANDARD LINE
590 kr
Köp nu
| EAN | 5902129219101 |
| Tillverkare | AS-PL |
| Ersätter | PRESTOLITE |
| OE-nummer |
ALANKO: 10439025 ARROWHEAD: SAB0062 AS-PL: UD13673S BOMBARDIER: 0586283DS00 CARGO: 110644, F032110644 HC PARTS: US874 HENKEL PARTS: 3110263 KRAUF: STP0874 LESTER: 5719 OMC: 385529, 386465, 389380, 389954, 391554, 393988, 582155, 585051, 585057, 585196, 586283 PRESTOLITE: 20513506TBA, 462119, MGL4109, MKW4001 PSH: 120.014.103.200, S129.601 UNITED TECHNOLOGIES: 0139927M030SM, 0139940M030SM, 0228940M030SM, 0228940MO30SM, 0246525M030SM, 0246540M030SM, 0246640M030SM, 139940, 1791620M030SM, 1791640M030SM, 1791728M030SM, 1791740M030SM, 2020740, 2070240M030SM, 2070240MO30SM, 2070329M030SM, 2070329MO30SM, 2070340M030SM, 5704740M030SM, 5722940M030SM, 5953540M030SM, POC4001, SM01399, SM02289, SM02465, SM02466, SM17916, SM17917, SM17919, SM20207, SM20702, SM20703, SM57047, SM59535, SMH1201399, SMH12C41, SMO2469 WAI / TRANSPO: 2-2079-UT, 5719N, 5722N WILSON: 71-06-5397 WOODAUTO: STR1066, STR88242, STR88247, WOOSTR1066, WOOSTR88242, WOOSTR88247 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.60 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 44.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 227.00 |
| O.1 [ mm ] | 122.00 |
| O.2 [ mm ] | 70.00 |
| O.3 [ mm ] | 84.00 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 8.00 |
| C.3 [ mm ] | 10.00 |
Passar i 87 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| EVINRUDE | 1.6 | E100 | 99.6ci-100H.P. | 0 | 1969–1979 | |
| EVINRUDE | 1.6 | E100ML | 99.6ci-100H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E100STL | 99.6ci-100H.P. | 0 | 1989–1990 | |
| EVINRUDE | 1.6 | E100STL XP | 99.6ci-100H.P. | 0 | 1991–1993 | |
| EVINRUDE | 1.6 | E100TL | 99.6ci-100H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E100TX | 99.6ci-100H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E100WML | 99.6ci-100H.P. | 0 | 1985–1986 | |
| EVINRUDE | 1.6 | E100WTL Commercial | 99.6ci-100H.P. | 0 | 1992–1997 | |
| EVINRUDE | 1.6 | E100WTL Super | 99.6ci-100H.P. | 0 | 1985–1991 | |
| EVINRUDE | 1.6 | E100WTX Commercial | 99.6ci-100H.P. | 0 | 1992–1997 | |
| EVINRUDE | 1.6 | E100WTX Super | 99.6ci-100H.P. | 0 | 1986–1991 | |
| EVINRUDE | 1.6 | E110ML | 99.6ci-110H.P. | 0 | 1986–1989 | |
| EVINRUDE | 1.6 | E110TL | 99.6ci-110H.P. | 0 | 1986–1989 | |
| EVINRUDE | 1.6 | E110TX | 99.6ci-110H.P. | 0 | 1987–1989 | |
| EVINRUDE | 1.6 | E112TSL | 99.6ci-112H.P. | 0 | 1994–1996 | |
| EVINRUDE | 1.6 | E112TSX | 99.6ci-112H.P. | 0 | 1994–1996 | |
| EVINRUDE | 1.6 | E115 | 99.6ci-115H.P. | 0 | 1973–1979 | |
| EVINRUDE | 1.6 | E115J | 99.6ci-115H.P. | 0 | 1991–1993 | |
| EVINRUDE | 1.6 | E115JKL | 99.6ci-115H.P. | 0 | 1994–1995 | |
| EVINRUDE | 1.6 | E115JL | 99.6ci-115H.P. | 0 | 1994–1997 | |
| EVINRUDE | 1.6 | E115ML | 99.6ci-115H.P. | 0 | 1980–1984 | |
| EVINRUDE | 1.6 | E115TL | 99.6ci-115H.P. | 0 | 1980–1985 | |
| EVINRUDE | 1.6 | E115TX | 99.6ci-115H.P. | 0 | 1980–1984 | |
| EVINRUDE | 1.6 | E140 | 99.6ci-140H.P. | 0 | 1973–1979 | |
| EVINRUDE | 1.6 | E140ML | 99.6ci-140H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E140TL | 99.6ci-140H.P. | 0 | 1984–1984 | |
| EVINRUDE | 1.6 | E140TRL | 99.6ci-140H.P. | 0 | 1980–1983 | |
| EVINRUDE | 1.6 | E140TRX | 99.6ci-140H.P. | 0 | 1980–1983 | |
| EVINRUDE | 1.6 | E140TX | 99.6ci-140H.P. | 0 | 1984–1984 | |
| EVINRUDE | 1.6 | E85 | 99.6ci-85H.P. | 0 | 1964–1979 | |
| EVINRUDE | 1.6 | E85ML | 99.6ci-85H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E85TL | 99.6ci-85H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E85TTL | 99.6ci-85H.P. | 0 | 1991–1995 | |
| EVINRUDE | 1.6 | E85TX | 99.6ci-85H.P. | 0 | 1980–1980 | |
| EVINRUDE | 1.6 | E88MSL | 99.6ci-88H.P. | 0 | 1987–1996 | |
| EVINRUDE | 1.6 | E88TSL | 99.6ci-88H.P. | 0 | 1994–1996 | |
| EVINRUDE | 1.6 | E90 | 99.6ci-90H.P. | 0 | 1970–1977 | |
| EVINRUDE | 1.6 | E90ML | 99.6ci-90H.P. | 0 | 1981–1986 | |
| EVINRUDE | 1.6 | E90TL | 99.6ci-90H.P. | 0 | 1981–1995 | |
| EVINRUDE | 1.6 | E90TSL | 99.6ci-90H.P. | 0 | 1996–1998 | |
| EVINRUDE | 1.6 | E90TX | 99.6ci-90H.P. | 0 | 1981–1986 | |
| EVINRUDE | 1.7 | E115TSL | 105.4ci-115H.P. | 0 | 1997–1998 | |
| EVINRUDE | 1.7 | E115TSX | 105.4ci-115H.P. | 0 | 1997–1998 | |
| EVINRUDE | 1.8 | E125 | 110ci-125H.P. | 0 | 1973–1977 | |
| EVINRUDE | 2.0 | E135 | 122ci-135H.P. | 0 | 1973–1977 | |
| JOHNSON | 100 | 99.6ci-100H.P. | 0 | 1969–1979 | ||
| JOHNSON | 100CTL | 99.6ci-100H.P. | 0 | 1987–1987 | ||
| JOHNSON | 100CWTX | 99.6ci-100H.P. | 0 | 1987–1987 | ||
| JOHNSON | 100ML | 99.6ci-100H.P. | 0 | 1980–1980 | ||
| JOHNSON | 100STL | 99.6ci-100H.P. | 0 | 1989–1995 | ||
| JOHNSON | 100TRL | 99.6ci-100H.P. | 0 | 1980–1980 | ||
| JOHNSON | 100TRX | 99.6ci-100H.P. | 0 | 1980–1980 | ||
| JOHNSON | 100WML | 99.6ci-100H.P. | 0 | 1985–1986 | ||
| JOHNSON | 100WT | 99.6ci-100H.P. | 0 | 1985–1997 | ||
| JOHNSON | 110ML | 99.6ci-110H.P. | 0 | 1986–1989 | ||
| JOHNSON | 110TL | 99.6ci-110H.P. | 0 | 1986–1989 | ||
| JOHNSON | 110TX | 99.6ci-110H.P. | 0 | 1987–1989 | ||
| JOHNSON | 112TSL | 99.6ci-112H.P. | 0 | 1994–1996 | ||
| JOHNSON | 115 | 99.6ci-115H.P. | 0 | 1973–1979 | ||
| JOHNSON | 115J Jet | 99.6ci-80H.P. | 0 | 1991–1997 | ||
| JOHNSON | 115ML | 99.6ci-115H.P. | 0 | 1980–1984 | ||
| JOHNSON | 115TL | 99.6ci-115H.P. | 0 | 1980–1996 | ||
| JOHNSON | 115TSL | 99.6ci-115H.P. | 0 | 1997–1998 | ||
| JOHNSON | 115TSX | 99.6ci-115H.P. | 0 | 1997–1998 | ||
| JOHNSON | 115TX | 99.6ci-115H.P. | 0 | 1980–1985 | ||
| JOHNSON | 125 | 110ci-125H.P. | 0 | 1973–1977 | ||
| JOHNSON | 135 | 122.0ci-135H.P. | 0 | 1973–1977 | ||
| JOHNSON | 140 | 99.6ci-140H.P. | 0 | 1973–1979 | ||
| JOHNSON | 140ML | 99.6ci-140H.P. | 0 | 1980–1980 | ||
| JOHNSON | 140TL | 99.6ci-140H.P. | 0 | 1980–1984 | ||
| JOHNSON | 140TRL | 99.6ci-140H.P. | 0 | 1983–1983 | ||
| JOHNSON | 140TRX | 99.6ci-140H.P. | 0 | 1983–1983 | ||
| JOHNSON | 140TX | 99.6ci-140H.P. | 0 | 1980–1984 | ||
| JOHNSON | 140TXL | 99.6ci-140H.P. | 0 | 1982–1982 | ||
| JOHNSON | 85 | 99.6ci-85H.P. | 0 | 1964–1979 | ||
| JOHNSON | 85ML | 99.6ci-85H.P. | 0 | 1980–1980 | ||
| JOHNSON | 85TL | 99.6ci-85H.P. | 0 | 1980–1980 | ||
| JOHNSON | 85TTL | 99.6ci-85H.P. | 0 | 1991–1995 | ||
| JOHNSON | 88MSL | 99.6ci-88H.P. | 0 | 1987–1996 | ||
| JOHNSON | 88TSL | 99.6ci-88H.P. | 0 | 1994–1996 | ||
| JOHNSON | 90 | 99.6ci-90H.P. | 0 | 1970–1977 | ||
| JOHNSON | 90J | 99.6ci-65H.P. | 0 | 1991–1995 | ||
| JOHNSON | 90ML | 99.6ci-90H.P. | 0 | 1981–1986 | ||
| JOHNSON | 90TL | 99.6ci-90H.P. | 0 | 1981–1994 | ||
| JOHNSON | 90TSL | 99.6ci-90H.P. | 0 | 1997–1998 | ||
| JOHNSON | 90TX | 99.6ci-90H.P. | 0 | 1981–1986 | ||
| JOHNSON | 90TXL | 99.6ci-90H.P. | 0 | 1982–1982 |
