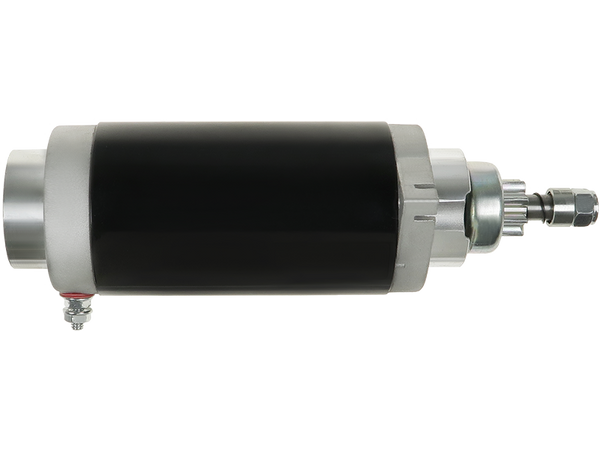

S9604S
Startmotorer
STANDARD LINE
580 kr
Köp nu
| EAN | 5902129219576 |
| Tillverkare | AS-PL |
| Ersätter | JOHNSON ELECTRIC |
| OE-nummer |
ALANKO: 10439010 ARROWHEAD: SAB0079 AS-PL: UD13688S FARCOM: 107622 KUHNER: 256547 LESTER: 5736 PIC: 106-515 PRESTOLITE: POC4003 PSH: 400.038.081.200, S132.437 TESLA: TT16295 UNITED TECHNOLOGIES: 4886540MO30SM, SM48865 WAI / TRANSPO: 2-2413-UT-2, 5736N WILSON: 71-09-5736 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.70 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 8 |
| Antal hål i huvudet [ qty. ] | 1 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 265.00 |
| C.1 [ mm ] | 5.00 |
Passar i 29 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MARINER | 75ELHPTO | 84.6ci-75H.P. | 0 | 1994–2001 | ||
| MARINER | 75ELPT | 84.6ci-75H.P. | 0 | 2000–2001 | ||
| MARINER | 75ELPTO | 84.6ci-75H.P. | 0 | 1994–2001 | ||
| MARINER | 1.4 | 90ELHPTO | 84.6ci-90H.P. | 0 | 1994–2001 | |
| MARINER | 1.4 | 90ELPTO | 84.6ci-90H.P. | 0 | 1994–2001 | |
| MARINER | 1.4 | 90ELPTO Jet 65 | 84.6ci-90H.P. | 0 | 1995–2001 | |
| MARINER | 1.7 | 100ELPTO | 105ci-100H.P. | 0 | 1988–1993 | |
| MARINER | 1.7 | 100ELXLPTO | 105ci-100H.P. | 0 | 1988–1989 | |
| MARINER | 1.7 | 115ELPTO | 105ci-115H.P. | 0 | 1989–1993 | |
| MARINER | 1.7 | 115EXLPTO | 105ci-115H.P. | 0 | 1989–1993 | |
| MARINER | 1.9 | 100ELPTO | 113ci-100H.P. | 0 | 1994–2000 | |
| MARINER | 1.9 | 100EXLHPTO | 113ci-100H.P. | 0 | 1997–2000 | |
| MARINER | 1.9 | 115ELPTO | 113ci-115H.P. | 0 | 1994–2001 | |
| MARINER | 1.9 | 115ELPTO Jet 80 | 113ci-80H.P. | 0 | 1995–2001 | |
| MARINER | 1.9 | 115EXLPTO | 113ci-115H.P. | 0 | 1994–2001 | |
| MARINER | 1.9 | 125ELPTO | 113ci-125H.P. | 0 | 1994–2001 | |
| MARINER | 1.9 | 125EXLPTO | 113ci-125H.P. | 0 | 1994–2001 | |
| MERCURY | 75ELH | 84.6ci-75H.P. | 0 | 2000–2000 | ||
| MERCURY | 75ELHPTO | 84.6ci-75H.P. | 0 | 1994–2002 | ||
| MERCURY | 75ELPTO | 84.6ci-75H.P. | 0 | 1994–2004 | ||
| MERCURY | 1.4 | 90ELHPTO | 84.6ci-90H.P. | 0 | 1994–2002 | |
| MERCURY | 1.4 | 90ELPTO | 84.6ci-90H.P. | 0 | 1994–2009 | |
| MERCURY | 1.4 | 90ELPTO Jet 65 | 84.6ci-90H.P. | 0 | 1994–2006 | |
| MERCURY | 1.4 | 90EXLPTO | 84.6ci-90H.P. | 0 | 2000–2005 | |
| MERCURY | 1.9 | 115ELPTO | 113ci-115H.P. | 0 | 1994–2005 | |
| MERCURY | 1.9 | 115ELPTO Jet 80 | 113ci-115H.P. | 0 | 1994–2005 | |
| MERCURY | 1.9 | 115EXLPTO | 113ci-115H.P. | 0 | 1994–2005 | |
| MERCURY | 1.9 | 125ELPTO | 113ci-125H.P. | 0 | 1994–2004 | |
| MERCURY | 1.9 | 125EXLPTO | 113ci-125H.P. | 0 | 2002–2004 |
