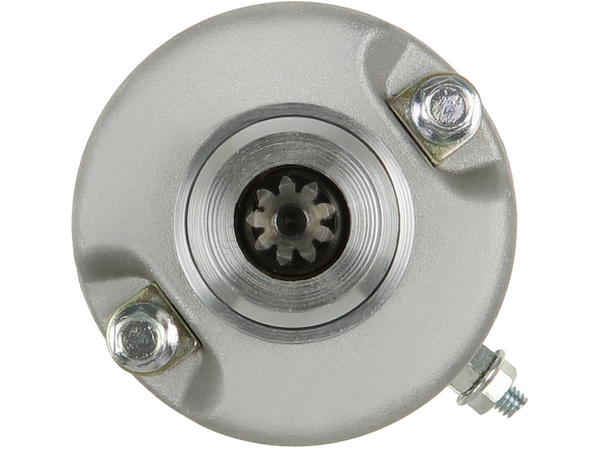

S9655S
Startmotorer
STANDARD LINE
444 kr
Köp nu
| EAN | 5902129221838 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
ALANKO: 10439176 AS-PL: UD19164S CASCO: CST33163AS ITAB AUTOMOTIVE: 10033163AV KUHNER: 255755 LESTER: 18776 MITSUBA: SM13218 REAL: 20467361BN SANDO: 6033163.0 SIOM: MAV351630A SUZUKI: 31100-19C00, 31100-19C01, 31100-19C02, 31100-19C03 WAI / TRANSPO: 18782N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | ACW |
| B-storlek [ mm ] | 40.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 183.00 |
| O.1 [ mm ] | 36.00 |
| C.1 [ mm ] | 6.00 |
| C.2 [ mm ] | 7.00 |
Passar i 10 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SUZUKI | GSX 600 F | GSX | 34 | Petrol | 1988–1997 | |
| SUZUKI | GSX 600 F | GSX | 86 | Petrol | 1988–1997 | |
| SUZUKI | GSX 600 F | GSX | 27 | Petrol | 1988–1993 | |
| SUZUKI | GSX 600 F | GSX | 50 | Petrol | 1988–1997 | |
| SUZUKI | GSX-R 1100 /G (GU74C) | GSX-R (751cc - ) | 101 | Petrol | 1986–1986 | |
| SUZUKI | GSX-R 1100 /H | GSX-R (751cc - ) | 101 | Petrol | 1987–1987 | |
| SUZUKI | GSX-R 1100 /J (GU74C) | GSX-R (751cc - ) | 101 | Petrol | 1988–1988 | |
| SUZUKI | GSX-R 750 /F (GR75A) | GSX-R (124cc - 750cc) | 101 | Petrol | 1985–1987 | |
| SUZUKI | GSX-R 750 /H (GR75A) | GSX-R (124cc - 750cc) | 101 | Petrol | 1987–1987 | |
| SUZUKI | GSX-R 750 R Special Edition /G (GR75A) | GSX-R (124cc - 750cc) | 101 | Petrol | 1986–1986 |
