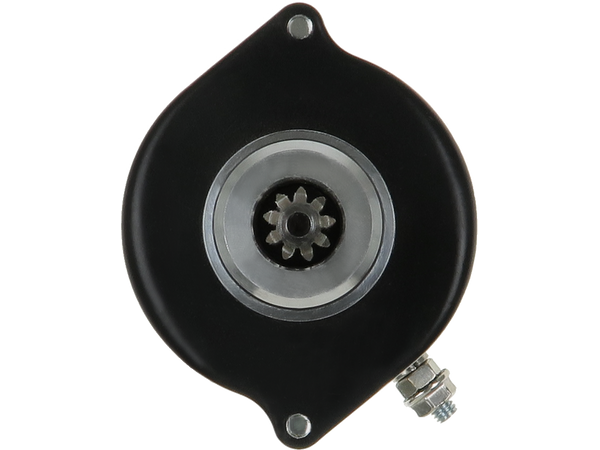

S9663S
Startmotorer
STANDARD LINE
413 kr
Köp nu
| EAN | 5902129221913 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
ARROWHEAD: SMU0023, SMU0039 AS-PL: UD19110S BOMBARDIER: 278-000-987, 278-001-937 BOSCH: F032112010 CARGO: 111916, 112010, F032111916 DELCO: RS41178 JUST PARTS: KW2-0002N, PO2-0001N KAWASAKI: 21163-3702, 21163-3709, 21163-3712, 21163-3714 KUHNER: 254945 LESTER: 18330 POLARIS: 3240110, 3240281, 4010675, 4060118 WAI / TRANSPO: 18399N WILSON: 71-26-18330 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.60 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 41.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 1 |
| L.1 [ mm ] | 188.00 |
| O.1 [ mm ] | 25.00 |
| O.2 [ mm ] | 25.00 |
| O.3 [ mm ] | 45.00 |
| C.1 [ mm ] | 7.00 |
| C.2 [ mm ] | M6x1.0 |
| C.3 [ mm ] | 7.00 |
Passar i 136 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KAWASAKI | 1100 STX | 1071cc | 0 | 1997–1999 | ||
| KAWASAKI | 1100 STX D.I. | 1071cc | 0 | 2000–2003 | ||
| KAWASAKI | 1100 ZXI | 1071cc | 0 | 1996–2003 | ||
| KAWASAKI | 3D DI | 951cc | 0 | 2006–2007 | ||
| KAWASAKI | 3D RFI | 951cc | 0 | 2006–2007 | ||
| KAWASAKI | 650 SX | 650cc | 0 | 1987–1993 | ||
| KAWASAKI | 750 SS | 743cc | 0 | 1992–1997 | ||
| KAWASAKI | 750 STX | 743cc | 0 | 1998–1998 | ||
| KAWASAKI | 750 SX | 743cc | 0 | 1992–1995 | ||
| KAWASAKI | 750 SXi | 743cc | 0 | 1995–1996 | ||
| KAWASAKI | 750 ZXi | 743cc | 0 | 1995–1997 | ||
| KAWASAKI | 800 SX-R | 781cc | 0 | 2003–2007 | ||
| KAWASAKI | 900 STS | 891cc | 0 | 2001–2002 | ||
| KAWASAKI | 900 STX | 891cc | 0 | 1997–2006 | ||
| KAWASAKI | 900 ZXi | 891cc | 0 | 1995–1997 | ||
| KAWASAKI | 947 Rotax Engine | 951cc | 0 | 1998–2007 | ||
| KAWASAKI | Freedom | 701cc | 0 | 2002–2004 | ||
| KAWASAKI | Genesis | 1165cc | 0 | 1999–2002 | ||
| KAWASAKI | Genesis FFI | 1165cc | 0 | 2000–2000 | ||
| KAWASAKI | Genesis Ficht | 1165cc | 0 | 1999–1999 | ||
| KAWASAKI | Genesis I | 1165cc | 0 | 2001–2004 | ||
| KAWASAKI | GSX Limited | 951cc | 0 | 1998–1999 | ||
| KAWASAKI | GSX LTD | 951cc | 0 | 1998–1999 | ||
| KAWASAKI | GTX | 951cc | 0 | 1998–2002 | ||
| KAWASAKI | GTX DI | 951cc | 0 | 2000–2003 | ||
| KAWASAKI | GTX Limited | 951cc | 0 | 1998–1999 | ||
| KAWASAKI | Hurricane | 701cc | 0 | 1996–1997 | ||
| KAWASAKI | JF650 TS B1-B2 | 650cc | 0 | 1989–1990 | ||
| KAWASAKI | JF650 TS B3-B8 | 650cc | 0 | 1991–1996 | ||
| KAWASAKI | JF650 X2 A1-A2 | 650cc | 0 | 1986–1987 | ||
| KAWASAKI | JF650 X2 A10 | 650cc | 0 | 1995–1995 | ||
| KAWASAKI | JF650 X2 A3-A5 | 650cc | 0 | 1988–1990 | ||
| KAWASAKI | JF650 X2 A6-A9 | 650cc | 0 | 1991–1994 | ||
| KAWASAKI | JH1100 | 1071cc | 0 | 1996–2003 | ||
| KAWASAKI | JH1100 1100 Zxi A1-A5 | 1071cc | 0 | 1996–2000 | ||
| KAWASAKI | JH1100 1100 Zxi A6-A8 | 1071cc | 0 | 2001–2003 | ||
| KAWASAKI | JH1100 Ultra 130 D.I. B1-B4 | 1071cc | 0 | 2001–2004 | ||
| KAWASAKI | JH750 | 743cc | 0 | 1992–1997 | ||
| KAWASAKI | JH750 750 ZXI C1-C3 | 743cc | 0 | 1995–1997 | ||
| KAWASAKI | JH750 750SS A1-A4 | 743cc | 0 | 1992–1995 | ||
| KAWASAKI | JH750 750SS E1-E2 | 743cc | 0 | 1996–1997 | ||
| KAWASAKI | JH750 Super Sport XI B1-B3 | 743cc | 0 | 1993–1995 | ||
| KAWASAKI | JH750 Super Sport XI F1-F2 | 743cc | 0 | 1996–1997 | ||
| KAWASAKI | JH750 Xi Sport G1-G2 | 743cc | 0 | 1998–1999 | ||
| KAWASAKI | JH750 XIR D1 | 743cc | 0 | 1994–1994 | ||
| KAWASAKI | JH900 | 891cc | 0 | 1995–1997 | ||
| KAWASAKI | JH900 900 ZXI A1-A3 | 891cc | 0 | 1995–1997 | ||
| KAWASAKI | JL650 SC A1-A5 | 650cc | 0 | 1991–1995 | ||
| KAWASAKI | JS650 | 650cc | 0 | 1987–1993 | ||
| KAWASAKI | JS650 650SX A1 | 650cc | 0 | 1987–1987 | ||
| KAWASAKI | JS650 650SX A2-A4 | 650cc | 0 | 1988–1990 | ||
| KAWASAKI | JS650 650SX B1-B3 | 650cc | 0 | 1991–1993 | ||
| KAWASAKI | JS750 | 743cc | 0 | 1992–1996 | ||
| KAWASAKI | JS750 750 SXI Pro C1-C5 | 743cc | 0 | 1998–2002 | ||
| KAWASAKI | JS750 750SX A1-A4 | 743cc | 0 | 1992–1995 | ||
| KAWASAKI | JS750 750SXI B1-B2 | 743cc | 0 | 1995–1996 | ||
| KAWASAKI | JS800 | 781cc | 0 | 2003–2007 | ||
| KAWASAKI | JS800 SX-R A1-A9 | 781cc | 0 | 2003–2009 | ||
| KAWASAKI | JT1100 | 1071cc | 0 | 1997–2003 | ||
| KAWASAKI | JT1100 1100 STX A1 | 1071cc | 0 | 1997–1997 | ||
| KAWASAKI | JT1100 1100 STX B1-B2 | 1071cc | 0 | 1998–1999 | ||
| KAWASAKI | JT1100 1100 STX D.I. C1 | 1071cc | 0 | 2000–2000 | ||
| KAWASAKI | JT1100 1100 STX D.I. F1-F2 | 1071cc | 0 | 2001–2002 | ||
| KAWASAKI | JT1100 1100 STX D.I. G1 | 1071cc | 0 | 2003–2003 | ||
| KAWASAKI | JT750 | 743cc | 0 | 1998–1998 | ||
| KAWASAKI | JT750 750 STX C1 | 743cc | 0 | 1998–1998 | ||
| KAWASAKI | JT750 ST A1-A2 | 743cc | 0 | 1994–1995 | ||
| KAWASAKI | JT750 STS B1-B3 | 743cc | 0 | 1995–1997 | ||
| KAWASAKI | JT900 | 891cc | 0 | 1997–2006 | ||
| KAWASAKI | JT900 900 STS B3-B4 | 891cc | 0 | 2001–2002 | ||
| KAWASAKI | JT900 900 STX A1-A2 | 891cc | 0 | 1997–1998 | ||
| KAWASAKI | JT900 900 STX B1-B2 | 891cc | 0 | 1999–2000 | ||
| KAWASAKI | JT900 900 STX C1-C2 | 891cc | 0 | 2001–2002 | ||
| KAWASAKI | JT900 900 STX D1 | 891cc | 0 | 2003–2003 | ||
| KAWASAKI | JT900 900 STX E1-E2 | 891cc | 0 | 2004–2006 | ||
| KAWASAKI | JT900 900 STX E6F | 891cc | 0 | 2004–2006 | ||
| KAWASAKI | LRV | 951cc | 0 | 2000–2001 | ||
| KAWASAKI | LRV DI | 951cc | 0 | 2002–2003 | ||
| KAWASAKI | MSX 140 | 1192cc | 0 | 2003–2004 | ||
| KAWASAKI | Octane | 777cc | 0 | 2002–2004 | ||
| KAWASAKI | Pro 1200 | 1165cc | 0 | 2000–2001 | ||
| KAWASAKI | PRO 785 | 779cc | 0 | 1998–2000 | ||
| KAWASAKI | RX | 951cc | 0 | 2000–2002 | ||
| KAWASAKI | RX DI | 951cc | 0 | 2000–2003 | ||
| KAWASAKI | RX LE DI | 951cc | 0 | 2002–2002 | ||
| KAWASAKI | RX X | 951cc | 0 | 2001–2001 | ||
| KAWASAKI | SC - JL650 | 650cc | 0 | 1991–1995 | ||
| KAWASAKI | SL1050 | 1050cc | 0 | 1997–1997 | ||
| KAWASAKI | SL1050 | 1051cc | 0 | 1997–1997 | ||
| KAWASAKI | SL650 | 650cc | 0 | 1992–1995 | ||
| KAWASAKI | SL650 STD | 650cc | 0 | 1995–1995 | ||
| KAWASAKI | SL700 | 701cc | 0 | 1996–1997 | ||
| KAWASAKI | SL700 Deluxe | 701cc | 0 | 1997–1997 | ||
| KAWASAKI | SL750 | 750cc | 0 | 1993–1995 | ||
| KAWASAKI | SL780 | 779cc | 0 | 1996–1997 | ||
| KAWASAKI | SL900 | 889cc | 0 | 1996–1997 | ||
| KAWASAKI | SL900 | 900cc | 0 | 1996–1997 | ||
| KAWASAKI | SLH | 701cc | 0 | 1998–2001 | ||
| KAWASAKI | SLH700 | 701cc | 0 | 1998–1999 | ||
| KAWASAKI | SLT 700 | 701cc | 0 | 1996–1997 | ||
| KAWASAKI | SLT 750 | 750cc | 0 | 1994–1995 | ||
| KAWASAKI | SLT 780 | 779cc | 0 | 1996–1997 | ||
| KAWASAKI | SLTH | 701cc | 0 | 1998–1999 | ||
| KAWASAKI | SLTX | 1051cc | 0 | 1996–1999 | ||
| KAWASAKI | SLTX | 1050cc | 0 | 1996–1999 | ||
| KAWASAKI | SLTX-B | 1165cc | 0 | 1999–1999 | ||
| KAWASAKI | SLX | 1050cc | 0 | 1996–2000 | ||
| KAWASAKI | SLX | 1165cc | 0 | 2000–2001 | ||
| KAWASAKI | SLX | 1051cc | 0 | 1999–1999 | ||
| KAWASAKI | SLX 780 | 779cc | 0 | 1995–1996 | ||
| KAWASAKI | SLX Pro 785 | 779cc | 0 | 1997–1998 | ||
| KAWASAKI | SLXH | 1051cc | 0 | 1998–1998 | ||
| KAWASAKI | SLXH | 1050cc | 0 | 1998–1998 | ||
| KAWASAKI | Sportster | 0 | 2000–2006 | |||
| KAWASAKI | Sportster LE | 951cc | 0 | 2000–2004 | ||
| KAWASAKI | Sportster LE DI | 951cc | 0 | 2005–2006 | ||
| KAWASAKI | ST - JT750 | 743cc | 0 | 1994–1995 | ||
| KAWASAKI | STS - JT750 | 743cc | 0 | 1995–1997 | ||
| KAWASAKI | Super Sport Xi - JH750 | 743cc | 0 | 1993–1997 | ||
| KAWASAKI | SXi Pro - JS750 | 743cc | 0 | 1998–2002 | ||
| KAWASAKI | TS - JF650 | 650cc | 0 | 1989–1996 | ||
| KAWASAKI | Ultra 130 D.I. - JH1100 | 1071cc | 0 | 2001–2004 | ||
| KAWASAKI | Virage | 701cc | 0 | 2000–2004 | ||
| KAWASAKI | Virage I | 777cc | 0 | 2002–2004 | ||
| KAWASAKI | Virage TX | 1165cc | 0 | 2000–2002 | ||
| KAWASAKI | Virage Txi | 1165cc | 0 | 2001–2002 | ||
| KAWASAKI | Wave Runner | 650cc | 0 | – | ||
| KAWASAKI | Wave Runner | 900cc | 0 | – | ||
| KAWASAKI | Wave Runner | 1100cc | 0 | – | ||
| KAWASAKI | Wave Runner | 750cc | 0 | – | ||
| KAWASAKI | X-2 - JF650 | 650cc | 0 | 1986–1995 | ||
| KAWASAKI | Xi Sport - JH750 | 743cc | 0 | 1998–1999 | ||
| KAWASAKI | XiR - JH750 | 743cc | 0 | 1994–1994 | ||
| KAWASAKI | XP | 951cc | 0 | 1998–2002 | ||
| KAWASAKI | XP DI | 951cc | 0 | 2003–2004 | ||
| KAWASAKI | XP Limited | 951cc | 0 | 1998–1999 |
