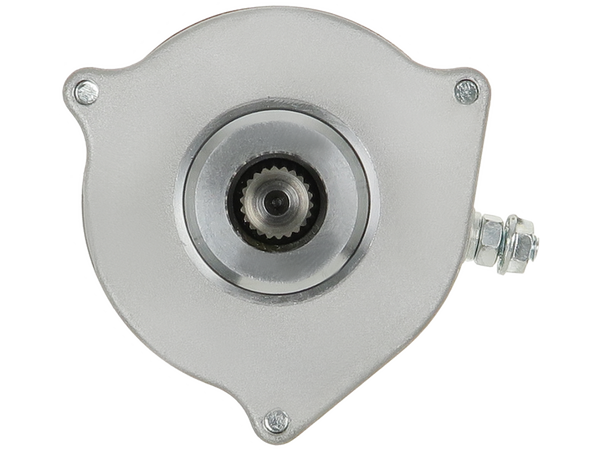

S9670S
Startmotorer
STANDARD LINE
499 kr
Köp nu
| EAN | 5902129221982 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBA |
| OE-nummer |
ALANKO: 10439243, 439243 ARROWHEAD: SMU0110 AS-PL: UD19121S DELCO: RS41210 ELECTROLOG: STR5977 HONDA: 31200-MAA-008, 31200-MG8-008, 31200-MG8-018 JUST PARTS: HN2-0084R LESTER: 18631 PSH: 120.020.222.200 WAI / TRANSPO: 18631N WILSON: 71-26-18631 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 29.00 |
| Antal kuggar [ qty. ] | 22 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 168.00 |
| O.1 [ mm ] | 50.00 |
| C.1 [ mm ] | 6.00 |
| C.2 [ mm ] | 6.00 |
Passar i 2 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HONDA | VT 1100 C (SC23) | VT | 60 | Petrol | 1988–1994 | |
| HONDA | VT 1100 C (SC23) | VT | 67 | Petrol | 1988– |
