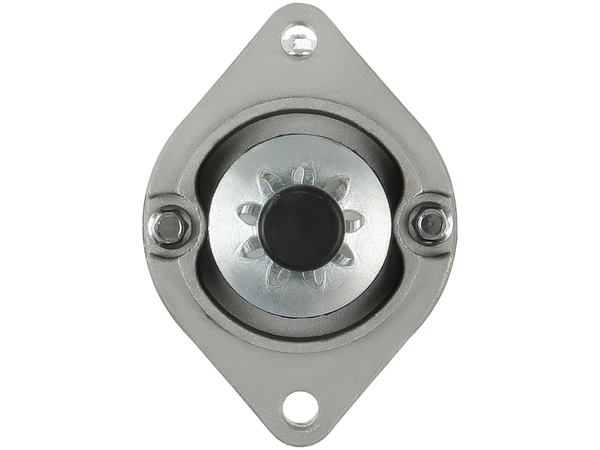

S9752S
Startmotorer
STANDARD LINE
636 kr
Köp nu
| EAN | 5902129223160 |
| Tillverkare | AS-PL |
| Ersätter | JOHNSON ELECTRIC |
| OE-nummer |
ALANKO: 10438945 ARCTIC CAT: 0745-018, 0745-030, 0745-052, 0745-257 ARROWHEAD: SAB0150 AS-PL: UD19189S DELCO: RS41066 KUHNER: 256669 LESTER: 5944 ROBERT'S: 106-10410 WAI / TRANSPO: 5944N WILSON: 71-09-5944 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 184.00 |
| O.1 [ mm ] | 89.00 |
| C.1 [ mm ] | 8.50 |
| C.2 [ mm ] | 8.50 |
Passar i 39 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ARCTIC CAT | Bearcat 340 | 339cc | 0 | 1995–2000 | ||
| ARCTIC CAT | Bearcat 440 | 431cc | 0 | 1995–2000 | ||
| ARCTIC CAT | Cheetah 340 | 339cc | 0 | 1994–1994 | ||
| ARCTIC CAT | Cheetah 440 | 431cc | 0 | 1992–1994 | ||
| ARCTIC CAT | Cheetah Touring | 431cc | 0 | 1991–1991 | ||
| ARCTIC CAT | Cougar 440 | 431cc | 0 | 1991–1992 | ||
| ARCTIC CAT | El Tigre EXT | 529cc | 0 | 1989–1991 | ||
| ARCTIC CAT | El Tigre EXT Mountain Cat | 529cc | 0 | 1989–1991 | ||
| ARCTIC CAT | Jag 340 | 339cc | 0 | 1989–1999 | ||
| ARCTIC CAT | Jag 340 Deluxe | 339cc | 0 | 1988–1999 | ||
| ARCTIC CAT | Jag 340 Mountain Cat | 339cc | 0 | 1990–1991 | ||
| ARCTIC CAT | Jag 440 | 431cc | 0 | 1992–1999 | ||
| ARCTIC CAT | Jag 440 AFS | 431cc | 0 | 1989–1993 | ||
| ARCTIC CAT | Jag 440 AFS Deluxe | 431cc | 0 | 1990–1991 | ||
| ARCTIC CAT | Jag 440 AFS Long Track | 431cc | 0 | 1990–1991 | ||
| ARCTIC CAT | Jag 440 AFS Special | 431cc | 0 | 1991–1991 | ||
| ARCTIC CAT | Jag 440 Deluxe | 431cc | 0 | 1992–1999 | ||
| ARCTIC CAT | Jag 440 Liquid | 431cc | 0 | 1996–1996 | ||
| ARCTIC CAT | Jag 440 Special | 431cc | 0 | 1992–1992 | ||
| ARCTIC CAT | Jag 440Z | 431cc | 0 | 1993–1994 | ||
| ARCTIC CAT | Lynx | 339cc | 0 | 1991–1993 | ||
| ARCTIC CAT | Lynx Deluxe | 339cc | 0 | 1991–1993 | ||
| ARCTIC CAT | Lynx Mountain Cat | 339cc | 0 | 1992–1993 | ||
| ARCTIC CAT | Pantera 440 | 431cc | 0 | 1988–1992 | ||
| ARCTIC CAT | Panther | 431cc | 0 | 1989–1993 | ||
| ARCTIC CAT | Panther 340 | 339cc | 0 | 1998–2000 | ||
| ARCTIC CAT | Panther 370 | 367cc | 0 | 2001–2008 | ||
| ARCTIC CAT | Panther 440 | 431cc | 0 | 1997–2002 | ||
| ARCTIC CAT | Panther Deluxe | 431cc | 0 | 1991–1996 | ||
| ARCTIC CAT | Panther Liquid | 431cc | 0 | 1996–1996 | ||
| ARCTIC CAT | Panther Mountain Cat | 431cc | 0 | 1990–1991 | ||
| ARCTIC CAT | Prowler | 431cc | 0 | 1990–1992 | ||
| ARCTIC CAT | Prowler Mountain Cat | 431cc | 0 | 1991–1992 | ||
| ARCTIC CAT | Prowler Special | 431cc | 0 | 1991–1992 | ||
| ARCTIC CAT | Puma | 339cc | 0 | 1994–1997 | ||
| ARCTIC CAT | Puma Deluxe | 339cc | 0 | 1994–1997 | ||
| ARCTIC CAT | Super Jag | 431cc | 0 | 1989–1992 | ||
| ARCTIC CAT | Z370 | 367cc | 0 | 1999–2007 | ||
| ARCTIC CAT | Z440 | 431cc | 0 | 1995–2006 |
