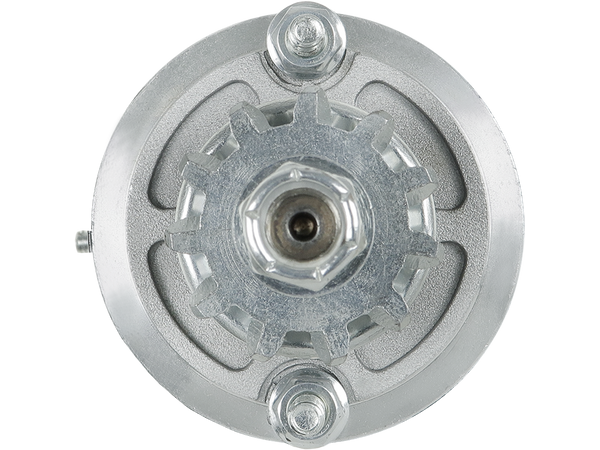

S9797S
Startmotorer
STANDARD LINE
701 kr
Köp nu
| EAN | 5902129232773 |
| Tillverkare | AS-PL |
| Ersätter | PRESTOLITE |
| OE-nummer |
ARROWHEAD: SAB0109 AS-PL: UD102438S, UD102450S BOMBARDIER: 0586278DS00 BOSCH: F032111043, F04200M000 CARGO: 111043 CASCO: CST11110 DELCO: 1113519 HC PARTS: US871 HELLA: 8EA737-332-001 ITAB AUTOMOTIVE: 10011110AV JOHNSON ELECTRIC: 0255640 KRAUF: STP0871 KUHNER: 60847 LESTER: 5712 MOTOROLA: 9AL5009, 9AL5009F, 9AR2714, 9AR2714F OMC: 277432, 278232, 3292133, 378674, 379091, 379818, 380139, 380238, 380239, 381864, 385401, 386591, 386597, 392133, 585061, 586278 PRESTOLITE: MDH-4001, MDH-4002M, MDH-4102M, MDW-4002M, MDW-4204M, MGD-4002A, MGD-4002C, MGD-4002M, MGD-4102A, MGD-4102C, POB-4001 PSH: 400.017.110.550 RCP: ST5712 REAL: 20412011BN SANDO: 6011110.0 THERMO KING: 46-237, 46-304, 46-372, 46-452, 46-462, 46-587, 46-781 UNIPOINT: STR1060 UNITED TECHNOLOGIES: 0255625-M030SM, 0255640-MO30SM, 5705120M030SM, SM02556 WAI / TRANSPO: 5712N WILSON: 71-09-5712 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.60 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 63.00 |
| B-storlek [ mm ] | 46.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 0 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 213.00 |
Passar i 88 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CHRYSLER | Engine | 31.8ci-50H.P. | 0 | 1964–1982 | ||
| CHRYSLER | Engine | 31.8ci-45H.P. | 0 | 1964–1982 | ||
| CHRYSLER | Engine | 31.8ci-55H.P. | 0 | 1964–1975 | ||
| CHRYSLER | Engine | 31.8ci-35H.P. | 0 | 1966–1972 | ||
| EVINRUDE | E20 | 31.8ci-20H.P. | 0 | 1966–1998 | ||
| EVINRUDE | E20E | 31.8ci-20H.P. | 0 | 1985–1995 | ||
| EVINRUDE | E20EL | 31.8ci-20H.P. | 0 | 1985–1995 | ||
| EVINRUDE | E25 | 31.8ci-25H.P. | 0 | 1966–1979 | ||
| EVINRUDE | E25E | 31.8ci-25H.P. | 0 | 1981–1998 | ||
| EVINRUDE | E25EL | 31.8ci-25H.P. | 0 | 1981–1997 | ||
| EVINRUDE | E25TE | 31.8ci-25H.P. | 0 | 1980–1998 | ||
| EVINRUDE | E25TEL | 31.8ci-25H.P. | 0 | 1980–1998 | ||
| EVINRUDE | E28 | 31.8ci-28H.P. | 0 | 1960–1976 | ||
| EVINRUDE | E28ESL | 31.8ci-28H.P. | 0 | 1987–1996 | ||
| EVINRUDE | E30 | 31.8ci-30H.P. | 0 | 1960–1976 | ||
| EVINRUDE | E30E | 31.8ci-30H.P. | 0 | 1984–1998 | ||
| EVINRUDE | E30EL | 31.8ci-30H.P. | 0 | 1984–1998 | ||
| EVINRUDE | E30TE | 31.8ci-30H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E30TEL | 31.8ci-30H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E33 | 31.8ci-33H.P. | 0 | 1960–1976 | ||
| EVINRUDE | E35E | 31.8ci-35H.P. | 0 | 1980–1984 | ||
| EVINRUDE | E35EL | 31.8ci-35H.P. | 0 | 1980–1984 | ||
| EVINRUDE | E35TEL | 31.8ci-35H.P. | 0 | 1983–1984 | ||
| EVINRUDE | E40 | 44.9ci-40H.P. | 0 | 1960–1976 | ||
| EVINRUDE | E40E | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E40EL | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E40TE | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E40TEL | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| EVINRUDE | E65 | 44.9ci-65H.P. | 0 | 1964–1979 | ||
| JOHNSON | 20 | 31.8ci-20H.P. | 0 | 1966–1979 | ||
| JOHNSON | 20E | 31.8ci-20H.P. | 0 | 1985–1998 | ||
| JOHNSON | 25 | 31.8ci-25H.P. | 0 | 1966–1979 | ||
| JOHNSON | 25E | 31.8ci-25H.P. | 0 | 1981–2001 | ||
| JOHNSON | 25EL | 31.8ci-25H.P. | 0 | 1981–2005 | ||
| JOHNSON | 25ES | 31.8ci-25H.P. | 0 | 2000–2001 | ||
| JOHNSON | 25EV | 31.8ci-25H.P. | 0 | 2001–2001 | ||
| JOHNSON | 25GT | 31.8ci-25H.P. | 0 | 2004–2005 | ||
| JOHNSON | 25TE | 31.8ci-25H.P. | 0 | 1981–1994 | ||
| JOHNSON | 25TEL | 31.8ci-25H.P. | 0 | 1981–2005 | ||
| JOHNSON | 25TES | 31.8ci-25H.P. | 0 | 2002–2005 | ||
| JOHNSON | 28 | 31.8ci-28H.P. | 0 | 1960–1976 | ||
| JOHNSON | 28ESL | 31.8ci-28H.P. | 0 | 1987–1996 | ||
| JOHNSON | 30 | 31.8ci-30H.P. | 0 | 1960–1976 | ||
| JOHNSON | 30E | 31.8ci-30H.P. | 0 | 1984–1999 | ||
| JOHNSON | 30EL | 31.8ci-30H.P. | 0 | 1984–2005 | ||
| JOHNSON | 30ES | 31.8ci-30H.P. | 0 | 2000–2001 | ||
| JOHNSON | 30EV | 31.8ci-30H.P. | 0 | 2001–2001 | ||
| JOHNSON | 30TE | 31.8ci-30H.P. | 0 | 1984–1998 | ||
| JOHNSON | 30TEL | 31.8ci-30H.P. | 0 | 1985–1998 | ||
| JOHNSON | 35E | 31.8ci-35H.P. | 0 | 1980–1984 | ||
| JOHNSON | 35EL | 31.8ci-35H.P. | 0 | 1980–1984 | ||
| JOHNSON | 35TEL | 31.8ci-35H.P. | 0 | 1983–1984 | ||
| JOHNSON | 40 | 44.9ci-40H.P. | 0 | 1970–1976 | ||
| JOHNSON | 40E | 44.9ci-40H.P. | 0 | 1985–1995 | ||
| JOHNSON | 40EL | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| JOHNSON | 40R | 44.9ci-40H.P. | 0 | 1985–2001 | ||
| JOHNSON | 40TE | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| JOHNSON | 40TEL | 44.9ci-40H.P. | 0 | 1985–1998 | ||
| JOHNSON | 40TL | 44.9ci-40H.P. | 0 | 1988–1998 | ||
| JOHNSON | 65 | 44.9ci-65H.P. | 0 | 1964–1979 | ||
| MCCULLOCH | Engine | 28H.P. | 0 | 1964–1967 | ||
| MCCULLOCH | Engine | 45H.P. | 0 | 1964–1967 | ||
| ONAN | L25 | 0 | 1968–1974 | |||
| SCOTT ATWATER | Engine | 28H.P. | 0 | 1964–1967 | ||
| SCOTT ATWATER | Engine | 45H.P. | 0 | 1964–1967 | ||
| SEA BEE | Engine | 30H.P. | 0 | 1957–1964 | ||
| SEA BEE | Engine | 12H.P. | 0 | 1955–1956 | ||
| SEA BEE | Engine | 25H.P. | 0 | 1955–1964 | ||
| SEA BEE | Engine | 35H.P. | 0 | 1957–1964 | ||
| SEA BEE | Engine | 15H.P. | 0 | 1957–1958 | ||
| SEA KING | Engine | 55H.P. | 0 | 1961–1972 | ||
| SEA KING | Engine | 30H.P. | 0 | 1957–1962 | ||
| SEA KING | Engine | 80H.P. | 0 | 1966–1970 | ||
| SEA KING | Engine | 40H.P. | 0 | 1961–1972 | ||
| SEA KING | Engine | 100H.P. | 0 | 1966–1970 | ||
| SEA KING | Engine | 50H.P. | 0 | 1961–1972 | ||
| SEA KING | Engine | 25H.P. | 0 | 1955–1963 | ||
| SEA KING | Engine | 75H.P. | 0 | 1966–1970 | ||
| SEA KING | Engine | 35H.P. | 0 | 1957–1972 | ||
| SEA KING | Engine | 45H.P. | 0 | 1961–1972 | ||
| SEA KING | Engine | 15H.P. | 0 | 1955–1962 | ||
| TELEDYNE | Engine | 0 | 1960–1979 | |||
| WEST BEND | Engine | 45H.P. | 0 | 1963–1964 | ||
| WEST BEND | Engine | 25H.P. | 0 | 1961–1962 | ||
| WEST BEND | Engine | 40H.P. | 0 | 1961–1962 | ||
| WEST BEND | Engine | 50H.P. | 0 | 1963–1964 | ||
| WEST BEND | Engine | 30H.P. | 0 | 1963–1963 | ||
| WILSHIRE | 1400 Series | 0 | 1965–1967 |
