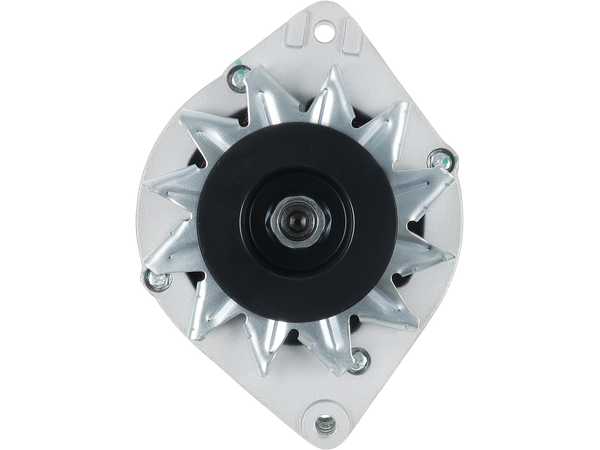

A01096S
Generatorer
STANDARD LINE
1515 kr
Köp nu
| EAN | 5902129248620 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0120489081 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 65 |
| A-storlek [ mm ] | 109.00 |
| B-storlek [ mm ] | 55.50 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 47.00 |
| O.D.2 [ mm ] | 73.00 |
| W.1 [ mm ] | 10.00 |
| Remskiva | AP |
| D.1 [ mm ] | 8.50 |
| D.2 [ mm ] | 8.50 |
| L.1 [ mm ] | 180.00 |
| Plug | PL_3200 |
Passar i 16 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| VW | 1.5 D | JETTA I (16) | CK | 50 | Diesel | 1978–1980 |
| VW | 1.6 D | CADDY I (14) | JK | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | CADDY I (14) | CR | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | CADDY I (14) | ME | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | GOLF I (17) | CR | 54 | Diesel | 1980–1983 |
| VW | 1.6 D | GOLF I (17) | JK | 54 | Diesel | 1980–1983 |
| VW | 1.6 D | JETTA I (16) | CR | 54 | Diesel | 1980–1984 |
| VW | 1.6 D | JETTA I (16) | JK | 54 | Diesel | 1980–1984 |
| VW | 1.6 D | TRANSPORTER T3 Bus (25_) | CS | 50 | Diesel | 1981–1987 |
| VW | 1.6 D | TRANSPORTER T3 Platform/Chassis (24_) | CS | 50 | Diesel | 1981–1987 |
| VW | 1.6 D | TRANSPORTER T3 Van (24_, 25_) | CS | 50 | Diesel | 1981–1987 |
| VW | 1.6 TD | GOLF I (17) | CY | 70 | Diesel | 1982–1983 |
| VW | 1.6 TD | JETTA I (16) | CY | 70 | Diesel | 1982–1984 |
| VW | 1.6 TD | TRANSPORTER T3 Bus (25_) | JX | 70 | Diesel | 1984–1992 |
| VW | 1.6 TD | TRANSPORTER T3 Platform/Chassis (24_) | JX | 70 | Diesel | 1984–1992 |
| VW | 1.6 TD | TRANSPORTER T3 Van (24_, 25_) | JX | 69 | Diesel | 1984–1992 |
