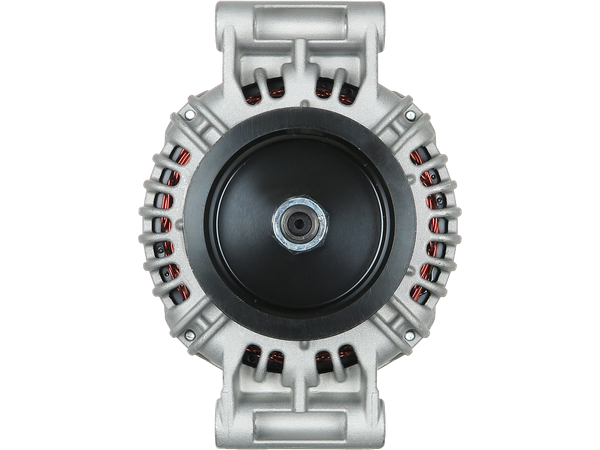

A0764S
Generatorer
STANDARD LINE
2149 kr
Köp nu
| EAN | 5902129121978 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0124655327 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 100 |
| A-storlek [ mm ] | 38.00 |
| C-storlek [ mm ] | 108.00 |
| G [ qty. ] | 8 |
| O.D.1 [ mm ] | 94.00 |
| Remskiva | AP |
| D.1 [ mm ] | 11.00 |
| D.2 [ mm ] | 10.50 |
| D.3 [ mm ] | 12.50 |
| E.1 [ mm ] | 80.00 |
| E.2 [ mm ] | 80.00 |
| L.1 [ mm ] | 206.00 |
| Plug | PL_5003 |
Passar i 4036 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | 1827 LL | ECONIC 2 | OM936.971 | 272 | 2017– | |
| MERCEDES-BENZ | 1830 LL CNG | ECONIC 2 | M936.991 | 302 | 2014– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 A | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 AS | AROCS | OM470.903 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 K | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 L | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 L | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LK | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.910 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.906 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ACTROS MP4 / MP5 | OM470.913 | 326 | 2011– | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.910 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.913 | 326 | 2013–2018 | |
| MERCEDES-BENZ | 1833 LS | ANTOS | OM470.906 | 326 | 2012–2018 | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.913 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.910 | 326 | 2013– | |
| MERCEDES-BENZ | 1833 LS | AROCS | OM470.906 | 326 | 2013– | |
| MERCEDES-BENZ | 1835 LL | ECONIC 2 | OM936.972 | 354 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 A | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AK | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.903 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 AS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 K | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 L | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 L | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 L | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LK | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.913 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | ACTROS MP4 / MP5 | OM470.910 | 360 | 2011– | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.913 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.906 | 360 | 2013–2018 | |
| MERCEDES-BENZ | 1836 LS | ANTOS | OM470.910 | 360 | 2012–2018 | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.913 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.910 | 360 | 2013– | |
| MERCEDES-BENZ | 1836 S, 1836 LS | AROCS | OM470.906 | 360 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 A | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.903 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 AS | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 K | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 L | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.906 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.913 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 L | ANTOS | OM470.910 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 L | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LK | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2011– | |
| MERCEDES-BENZ | 1840 LS | ACTROS MP4 / MP5 | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.913 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.910 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.910 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.906 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.913 | 394 | 2013–2018 | |
| MERCEDES-BENZ | 1840 LS | ANTOS | OM470.906 | 394 | 2012–2018 | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.913 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.906 | 394 | 2013– | |
| MERCEDES-BENZ | 1840 LS | AROCS | OM470.910 | 394 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 A | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AK | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.906 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 AS | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | 471.943 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.909 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.926 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.900 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 K | AROCS | OM471.922 | 422 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.922 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | 471.943 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | 471.943 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.909 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.909 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.926 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.926 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.900 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.900 | 421 | 2013– | |
| MERCEDES-BENZ | 1842 L | ACTROS MP4 / MP5 | OM471.922 | 422 | 2011– | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.909 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.909 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.926 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.926 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.900 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.900 | 421 | 2013–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.922 | 422 | 2012–2018 | |
| MERCEDES-BENZ | 1842 L | ANTOS | OM471.922 | 421 | 2013–2018 |
Visar 200 av 4036 fordon
