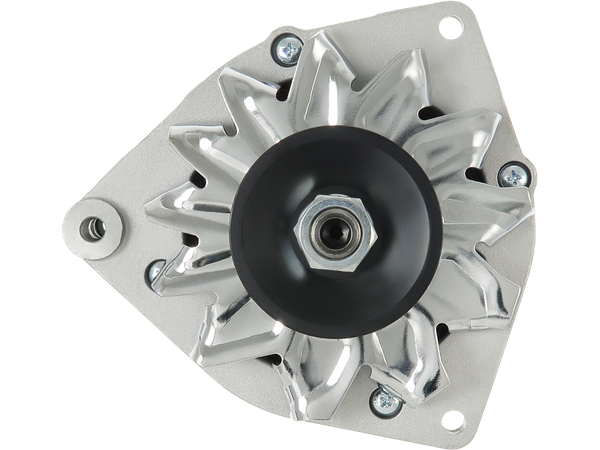

A0895S
Generatorer
STANDARD LINE
932 kr
Köp nu
| EAN | 5902129204763 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 55 |
| A-storlek [ mm ] | 81.00 |
| B-storlek [ mm ] | 55.50 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 49.00 |
| O.D.2 [ mm ] | 69.00 |
| W.1 [ mm ] | 9.00 |
| Remskiva | AP |
| D.1 [ mm ] | 8.50 |
| D.2 [ mm ] | 8.50 |
| D.3 [ mm ] | 8.50 |
| L.1 [ mm ] | 169.00 |
| Plug | PL_9105 |
Passar i 21 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AHLMANN | 5.7 | Engine | F6L912 | 0 | 1982– | |
| CASE IH | 2.5 | 600 | D179 | 0 | 1986– | |
| CASE IH | 3.4 | 600 | D206 | 0 | 1986–1986 | |
| CASE IH | 3.8 | 3944 | 0 | – | ||
| CASE IH | 3.8 | 3945 | 0 | – | ||
| CASE IH | 4.0 | 800 | D268 | 0 | – | |
| CASE IH | 4.0 | 800 | D246 | 0 | – | |
| CASE IH | 4.4 | 800 | D268 | 0 | – | |
| CASE IH | 4.4 | 800 | D246 | 0 | – | |
| CASE IH | 5.7 | 3960 | 0 | – | ||
| CASE IH | 5.7 | 3961 | 0 | – | ||
| VETUS | Engine | BF6M1012EC | 0 | – | ||
| VETUS | Engine | BF6M1013EC | 0 | – | ||
| VETUS | Engine | BF4M1011F | 0 | – | ||
| VETUS | Engine | BF4M1012E | 0 | – | ||
| VETUS | Engine | BF6M1012E | 0 | – | ||
| VETUS | Engine | BF6M1013E | 0 | – | ||
| VETUS | Engine | BF4M1012EC | 0 | – | ||
| VETUS | 16.0 | Engine | BF10L513 | 0 | 1990– | |
| VETUS | 9.6 | Engine | BF6L513RC | 0 | – | |
| VETUS | 9.6 | Engine | BF6L513R | 0 | 1986–1991 |
