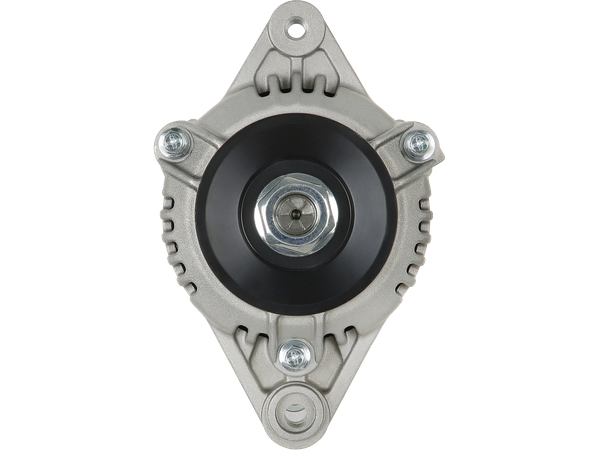

A5555S
Generatorer
STANDARD LINE
1227 kr
Köp nu
| EAN | 5902129224013 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | A0T25171 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 40 |
| A-storlek [ mm ] | 42.00 |
| B-storlek [ mm ] | 16.50 |
| C-storlek [ mm ] | 41.00 |
| G [ qty. ] | 1 |
| O.D.1 [ mm ] | 43.50 |
| O.D.2 [ mm ] | 68.00 |
| W.1 [ mm ] | 9.00 |
| Remskiva | AP |
| D.1 [ mm ] | M8x1.25 |
| D.2 [ mm ] | 9.00 |
| D.3 [ mm ] | 8.00 |
| L.1 [ mm ] | 161.00 |
| Plug | PL_2505 |
Passar i 54 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 1120 | 3-65 | 0 | 1991–1992 | ||
| CASE IH | 1130 | 3-75 | 0 | 1991–1992 | ||
| CASE IH | 1140 | 3-91 | 0 | 1991–1992 | ||
| CASE IH | 7195 | 0 | 1995–2005 | |||
| CASE IH | 7235 | 0 | 1995–2005 | |||
| CATERPILLAR | GP40 | 0 | 1997–2007 | |||
| CATERPILLAR | GPL40 | 0 | 1997–2007 | |||
| CUB CADET | 7192 | (19HP)3-65 | 0 | 1995–1997 | ||
| CUB CADET | 7193 | (19HP)3-65 | 0 | 1996–1997 | ||
| CUB CADET | 7194 | (19HP)3-65 | 0 | 1995–1997 | ||
| CUB CADET | 7195 | (19HP)3-65 | 0 | 1995–1997 | ||
| CUB CADET | 7232 | (23HP)3-75 | 0 | 1995–1997 | ||
| CUB CADET | 7233 | (23HP)3-75 | 0 | 1996–1997 | ||
| CUB CADET | 7234 | (23HP)3-75 | 0 | 1995–1997 | ||
| CUB CADET | 7235 | (23HP)3-75 | 0 | 1995–1997 | ||
| CUB CADET | 7272 | (27HP)3-91 | 0 | 1995–1997 | ||
| CUB CADET | 7273 | (27HP)3-91 | 0 | 1996–1997 | ||
| CUB CADET | 7274 | (27HP)3-91 | 0 | 1995–1997 | ||
| CUB CADET | 7275 | (27HP)3-91 | 0 | 1995–1997 | ||
| CUB CADET | 7300 | (30HP)3-91 | 0 | 1998–2003 | ||
| CUB CADET | 7305 | (30HP)3-91 | 0 | 1998–2003 | ||
| HURLIMANN | Prince 325 | 0 | – | |||
| HURLIMANN | Prince 325XV | 0 | – | |||
| HURLIMANN | Prince 435 | 0 | – | |||
| HURLIMANN | Prince 445 | 0 | – | |||
| MITSUBISHI | Engine | L3C | 0 | – | ||
| MITSUBISHI | Engine | L3 | 0 | 1986–1996 | ||
| MITSUBISHI | Engine | K3 | 0 | 1987–1997 | ||
| MITSUBISHI | Engine | K4M | 0 | – | ||
| MITSUBISHI | Engine | L3E | 0 | – | ||
| MITSUBISHI | Engine | K4E | 0 | 1987–1997 | ||
| MITSUBISHI | FG-40G | 6G72 | 0 | – | ||
| MITSUBISHI | FG-40G2 | 6G72 | 0 | – | ||
| MITSUBISHI | FG-40LP | 6G72 | 0 | – | ||
| MITSUBISHI | FG-40LP2 | 6G72 | 0 | – | ||
| MITSUBISHI | FG-40LPS | 6G72 | 0 | – | ||
| SAME | Solaris 45 | 4-91 | 0 | 1999–2009 | ||
| SOLE DIESEL | 0.5 | Engine | Mini-11 | 0 | – | |
| SOLE DIESEL | 0.6 | Engine | Mini-17 | 0 | – | |
| SOLE DIESEL | 1.0 | Engine | Mini-26 | 0 | – | |
| SOLE DIESEL | 1.0 | Engine | Mini-29 | 0 | – | |
| SOLE DIESEL | 2.0 | Engine | Mini-48 | 0 | – | |
| TORO | Greensmaster 3000D | 0 | 1990–2000 | |||
| TORO | Groundsmaster 220D | 0 | 1988–1991 | |||
| TORO | Groundsmaster 223D | 0 | 1992–1997 | |||
| TORO | Groundsmaster 224 | 0 | 1989–1996 | |||
| TORO | Reelmaster 223D | L3E | 0 | 1988–1992 | ||
| TORO | Reelmaster 5100D | 0 | 1990–1998 | |||
| TORO | Workman 3300D | L3E | 0 | 1993–1998 | ||
| TORO | Workman 4300D | 0 | 1994–1998 | |||
| VETUS | Engine | M2.D5 | 0 | – | ||
| VETUS | Engine | M2.04 | 0 | – | ||
| VETUS | Engine | M2.C5 | 0 | – | ||
| VETUS | Engine | M2.06 | 0 | – |
