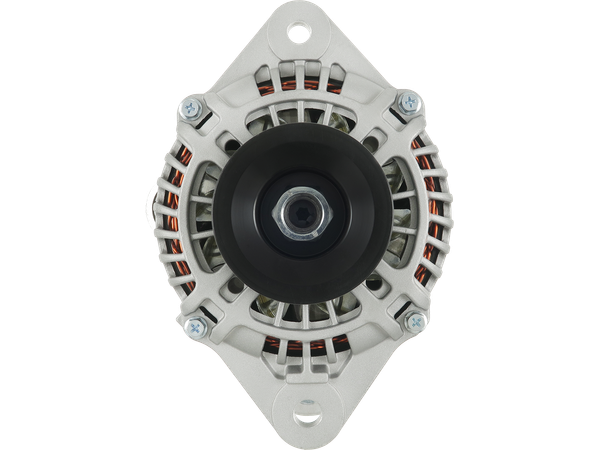

A5647S
Generatorer
STANDARD LINE
1995 kr
Köp nu
| EAN | 5902129274605 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | A3TR6188 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Ström [ A ] | 50 |
| A-storlek [ mm ] | 43.00 |
| B-storlek [ mm ] | 13.50 |
| C-storlek [ mm ] | 81.00 |
| G [ qty. ] | 2 |
| O.D.1 [ mm ] | 46.00 |
| O.D.2 [ mm ] | 74.00 |
| W.1 [ mm ] | 12.00 |
| Remskiva | AP |
| D.1 [ mm ] | 12.50 |
| D.2 [ mm ] | 10.50 |
| D.3 [ mm ] | 12.50 |
| L.1 [ mm ] | 195.00 |
| Plug | PL_2004 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| MITSUBISHI | Canter 35 | Canter VI (FE5, FE6, FB5, FB6) | 4D34-2AT4 | 136 | 1996–2001 | |
| MITSUBISHI | FE122F4 | Canter VI (FE5, FE6, FB5, FB6) | 4D34-2A | 120 | 1995–2005 | |
| MITSUBISHI | FE126F4 | Canter VI (FE5, FE6, FB5, FB6) | 4D34-2A | 120 | 1995–2005 | |
| MITSUBISHI | FE155F4 | Canter VI (FE5, FE6, FB5, FB6) | 4D34-2AT4 | 155 | 1995–1997 | |
| MITSUBISHI | FG145C1 | Canter VI (FE5, FE6, FB5, FB6) | 4D34-3AT3B | 140 | 2002–2005 |
