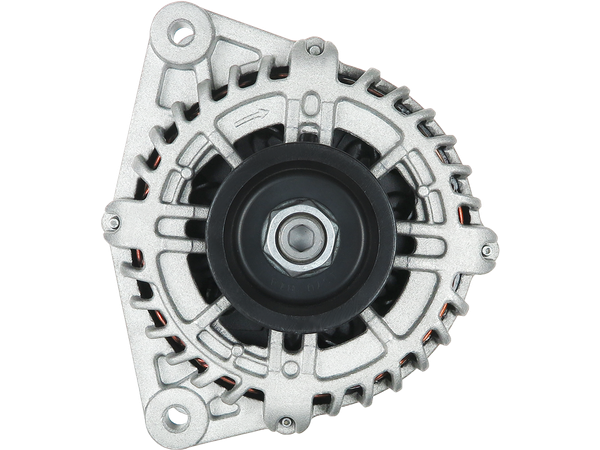

A9331PR Generator 12V 110A till Ford Tourneo Connect, Focus I, Transit Connect, Ford 063731857010
- Fabrikat:
- AS-PL
- Skick:
- Renoverad
- Typ:
- Generator
AS-PL A9331PR generator som passar Ford Focus I, Tourneo Connect, Transit Connect. Årsmodell 1998 till 2013. 12V, 110A. Ersätter original från Ford (OE.
Renoverad generator från AS-PL passar fordon från märket Ford. Artikelnummer A9331PR ger 12 V och 110 A och ersätter original från Ford. För Ford gäller årsmodeller 1998 till 2013, till exempel TOURNEO CONNECT och FOCUS I (DAW, DBW), med motorkoderna C9DC och C9DB. Fordonstyperna är personbil och transportbil, och OE-nummer 063731857010, 0986049181 och 113710 är några av totalt 122 OE-nummer.
PREMIUM LINEProfessionellt renoverad hos AS-PL — plockas isär, slitna delar (kol, lager, rotor vid behov) byts, testas på rigg och levereras med samma 3 års reklamationsrätt som en ny produkt. Lägre pris, mindre miljöpåverkan.
| EAN | 5902129133919 |
| Tillverkare | AS-PL |
| Ersätter | original från Ford |
| OE-nummer |
3EFFE: ALTF008, ALTL204, ALTL204NE, ALTL204VI, ALTS354, PRAL204, PRAL204VI, PRAS354 AINDE: CGB-74968 AUTOELECTRO: AEK2852 BOSCH: 0986049181 CARGO: 113710, 116124, F032113710, F032116124 CASCO: CAL14110AS, CAL14110GS CEVAM: 9452 DELCO: DA5347, DRA4237 ELECTROLOG: ALT8979 ELSTOCK: 27-4968 ERA: 210365, 210366 FORD: 1229421, 1376671, 1376696, 1429688, 1429689, 1464784, 1464785, 1465173, 1477971, 1477972, 1478187, 1762859, 1857697, 2T1U-10300-AB, 2T1U-10300-AD, 2T1U-10300-AE, 2T1U-10300-AF, 2T1U-10300-AG, 2T1U-10300-AH, 2T1U-10300-AK, 2T1U-10300-AL, 2T1U-10300-AM, 2T1U-10300-BB, 2T1U-10300-BE, 2T1U-10300-CA, 2T1U-10300-CB, 2T1U-10300-CC, 2T1U-10300-CD, 2T1U-10300-CE, 2T1U-10300-CF, 2T1U-10300-CG, 2T1U-10300-OF, 2T1U-AG, 2T1U1-0300-BC, 2T1U1-0300-BD, 2T1U10300AC, 2T1UAF, 2T1UAH, 2T1UBC, 2T1UCA, 2T1UCB, 2T1UCF, 4371000, 4371001, 4374447, 4374448, 4394204, 4531025, 4531026, 5128966, 5128967, 5T1U-10300-AA, RE2T1U-10300-CG GHIBAUDI: AG0490 HC PARTS: CA1857IR HELLA: 8EL011710-831, 8EL738211-381 HERTH+BUSS: 32001008 HITACHI: 130021 KUHNER: 553089RI, 553090RI, 553090RIV LOGISTIK: 442047 LUCAS: LRA02852, LRA2852 MAGNETI MARELLI: 063380008010, 063731857010, 63380008, 63380009, 943318571010, MAN8008, MAN8009 POWERMAX: 89212185 REAL: 20150011BN, 20150011OE, 20150901BN ROLLCO: ALT357 ROTOVIS: G90223N, G90699N SANDO: 2014109.0, 2014110.0, 2014110.1 SIDAT: A12VS1166A2 SIOM: ALT161100, ALT161100A STARDAX: STX100014, STX100014R, STX101179 VALEO: 200059, 440665 VISTEON: 20-150-01009, 20-150-01010 WAI: 23852N, 595.552.130, A134.461, A146.580 WOODAUTO: ALT21814 WROOM: WRA14110CO, WRA14110OE |
| Datablad | Ladda ner PDF med skiss och mått |
Alternativ & liknande produkter
Produkter som delar OE-nummer eller AS-PL listar som alternativ - kompletteras med fler i samma kategori.
| Artikelnr | Beskrivning | Pris |
|---|---|---|
| A9388S (samma OE) | AS-PL Helt ny · Generator | 2072 kr |
| A9012 (samma OE) | AS-PL Helt ny · Generator | 1432 kr |
| A9012SR (samma OE) | AS-PL Renoverad · Generator | 1720 kr |
| A9012PR (samma OE) | AS-PL Renoverad · Generator | 1783 kr |
| ARE9026 (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 239 kr |
| ARE9069S (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 267 kr |
| ARE9026S2 (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 284 kr |
| ARE9026S3 (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 291 kr |
| ARE9069 (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 373 kr |
| ARE9026S (samma OE) | AS-PL Helt ny · Spänningsregulator till generator | 384 kr |
| A0108 (samma OE) | AS-PL Helt ny · Generator | 1911 kr |
| A3061 (samma OE) | AS-PL Helt ny · Generator | 2199 kr |
| A9012ER (liknande) | ej i sortimentet | - |
Specifikationer
| Spänning [ V ] | 12 |
| Ström [ A ] | 110 |
| A-storlek [ mm ] | 33.00 |
| B-storlek [ mm ] | 14.00 |
| C-storlek [ mm ] | 64.50 |
| Antal spår | 6 spår (6PK) |
| O.D.1 [ mm ] | 58.00 |
| Remskiva | AP (fast remskiva) |
| D.1 [ mm ] | 8.00 |
| D.2 [ mm ] | 8.00 |
| D.3 [ mm ] | M8x1.25 |
| D.4 [ mm ] | M8x1.25 |
| L.1 [ mm ] | 167.00 |
| Plug | PL_3402 |
Remskiva AP: AP betyder Alternator Pulley: en fast (stel) remskiva utan frihjul. Remskivan sitter direkt på generatoraxeln och driver alltid med remmen.
Passar till 102 fordon
Klicka på ett märke för att se fordonen. Klicka på en rad för att se alla reservdelar som passar fordonet.
| Modell | Motor | Motorkod | HK | kW | Bränsle | Årsmodell |
|---|---|---|---|---|---|---|
| Ford (102 fordon) | ||||||
| Ford Focus I DAW | 1.8 DI / TDDi | BHDB | 75 | 55 | Diesel | 1999–2004 |
| Ford Focus I DAW | 1.8 DI / TDDi | BHDA | 75 | 55 | Diesel | 1999–2004 |
| Ford Focus I DAW | 1.8 Turbo DI / TDDi | C9DC | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DAW | 1.8 Turbo DI / TDDi | C9DB | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DAW | 1.8 Turbo DI / TDDi | C9DA | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DBW | 1.8 DI / TDDi | BHDB | 75 | 55 | Diesel | 1999–2004 |
| Ford Focus I DBW | 1.8 DI / TDDi | BHDA | 75 | 55 | Diesel | 1999–2004 |
| Ford Focus I DBW | 1.8 Turbo DI / TDDi | C9DC | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DBW | 1.8 Turbo DI / TDDi | C9DB | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DBW | 1.8 Turbo DI / TDDi | C9DA | 90 | 66 | Diesel | 1998–2004 |
| Ford Focus I DFW | 1.8 Turbo DI / TDDi | C9DB | 90 | 66 | Diesel | 1999–2004 |
| Ford Focus I DFW | 1.8 Turbo DI / TDDi | C9DA | 90 | 66 | Diesel | 1999–2004 |
| Ford Focus I DFW | 1.8 Turbo DI / TDDi | C9DC | 90 | 66 | Diesel | 1999–2004 |
| Ford Tourneo Connect | 1.8 TDCi | RWPD | 110 | 81 | Diesel | 2006–2013 |
| Ford Tourneo Connect | 1.8 TDCi | RWPA | 110 | 81 | Diesel | 2006–2013 |
| Ford Tourneo Connect | 1.8 TDCi | RWPC | 110 | 81 | Diesel | 2006–2013 |
| Ford Tourneo Connect | 1.8 TDCi | RWPB | 110 | 81 | Diesel | 2006–2013 |
| Ford Tourneo Connect | 1.8 16V | EYPB | 116 | 85 | Bensin | 2002–2013 |
| Ford Tourneo Connect | 1.8 16V | EYPD | 116 | 85 | Bensin | 2002–2013 |
| Ford Tourneo Connect | 1.8 16V | EYPA | 116 | 85 | Bensin | 2002–2013 |
| Ford Tourneo Connect | 1.8 16V | EYPC | 116 | 85 | Bensin | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | HCPA | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | RWPF | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | P9PD | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | HCPC | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | RWPE | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | P9PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | P9PC | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | HCPB | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | R3PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | HCPD | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi | P9PB | 90 | 66 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi /TDDi /DI | P7PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi /TDDi /DI | R2PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi /TDDi /DI | BHPA | 75 | 55 | Diesel | 2002–2013 |
| Ford Tourneo Connect | 1.8 TDCi /TDDi /DI | P7PB | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPC | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPB | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPD | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPA | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P65_ | 1.8 16V | EYPA | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 16V | EYPD | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 16V | EYPC | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 Di | P7PB | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 Di | P7PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 Di | R2PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 Di | BHPA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | R3PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | HCPD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | P9PB | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | HCPA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPF | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | P9PD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | HCPC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | RWPE | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | P9PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | P9PC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P65_ | 1.8 TDCi | HCPB | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPC | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPB | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPD | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPA | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P70_ | 1.8 16V | EYPA | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 16V | EYPD | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 16V | EYPC | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 Di | P7PB | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 Di | P7PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 Di | R2PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 Di | BHPA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | R3PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | HCPD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | P9PB | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | HCPA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPF | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | P9PD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | HCPC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | RWPE | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | P9PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | P9PC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P70_ | 1.8 TDCi | HCPB | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPC | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPB | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPD | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPA | 110 | 81 | Diesel | 2006–2013 |
| Ford Transit Connect P80_ | 1.8 16V | EYPA | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 16V | EYPD | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 16V | EYPC | 116 | 85 | Bensin | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 Di | P7PB | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 Di | P7PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 Di | R2PA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 Di | BHPA | 75 | 55 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | R3PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | HCPD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | P9PB | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | HCPA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPF | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | P9PD | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | HCPC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | RWPE | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | P9PA | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | P9PC | 90 | 66 | Diesel | 2002–2013 |
| Ford Transit Connect P80_ | 1.8 TDCi | HCPB | 90 | 66 | Diesel | 2002–2013 |
