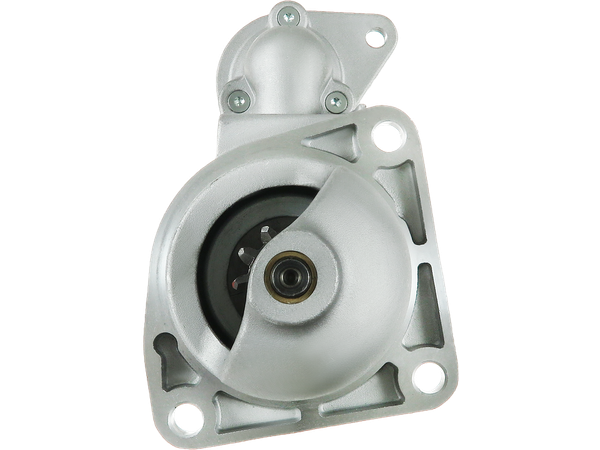

S0178
Startmotorer
STANDARD LINE
1439 kr
Köp nu
| EAN | 5901259420661 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001231017 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 27.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 316.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 127.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 53 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAF | FA 45.130 | LF 45 | BE99C | 135 | 2001–2006 | |
| DAF | FA 45.140 | LF 45 | FR103S1 | 140 | 2006– | |
| DAF | FA 45.150 | LF 45 | BE110C | 150 | 2001–2006 | |
| DAF | FA 45.150 | LF 45 | BE110C | 150 | 2001– | |
| DAF | FA 45.160 | LF 45 | FR118S1 | 160 | 2006– | |
| DAF | FA 45.160 HYBRID | LF 45 | FR118S1 | 160 | 2006– | |
| DAF | FA 45.170 | LF 45 | BE123C | 167 | 2001– | |
| DAF | FA 45.170 | LF 45 | BE123C | 167 | 2001–2006 | |
| DAF | FA 45.180 | LF 45 | CE136C | 185 | 2001–2006 | |
| DAF | FA 45.180 | LF 45 | CE136C | 185 | 2001– | |
| DAF | FA 45.180 | LF 45 | FR136S1 | 185 | 2006– | |
| DAF | FA 45.210 | LF 45 | FR152 | 207 | 2009– | |
| DAF | FA 45.220 | LF 45 | GR165S1 | 224 | 2006– | |
| DAF | FA 45.220 | LF 45 | CE162C | 220 | 2001–2006 | |
| DAF | FA 45.220 | LF 45 | CE162C | 220 | 2001– | |
| DAF | FA 45.250 | LF 45 | GR184S1 | 250 | 2006– | |
| DAF | FA 55.160 | LF 55 | FR118S1 | 160 | 2006– | |
| DAF | FA 55.170 | LF 55 | BE123C | 167 | 2001– | |
| DAF | FA 55.180 | LF 55 | CE136C | 185 | 2001– | |
| DAF | FA 55.180 | LF 55 | FR136S1 | 185 | 2006– | |
| DAF | FA 55.180 | LF 55 | CE136C | 185 | 2001–2006 | |
| DAF | FA 55.210 | LF 55 | FR152 | 207 | 2006– | |
| DAF | FA 55.210 | LF 55 | FR152 | 207 | 2009– | |
| DAF | FA 55.220 | LF 55 | CE162C | 220 | 2001–2006 | |
| DAF | FA 55.220 | LF 55 | GR165S1 | 224 | 2006– | |
| DAF | FA 55.220 | LF 55 | CE162C | 220 | 2001– | |
| DAF | FA 55.250 | LF 55 | GR184S1 | 250 | 2006– | |
| DAF | FA 55.250 | LF 55 | CE184C | 250 | 2001– | |
| DAF | FA 55.250 | LF 55 | CE184C | 250 | 2001–2006 | |
| DAF | FA 55.280 | LF 55 | GR210S1 | 286 | 2006– | |
| DAF | FA 55.290 | LF 55 | GR210S1 | 286 | 2006– | |
| DAF | FA 55.300 | LF 55 | GR220 | 299 | 2006– | |
| DAF | FA 55.300 | LF 55 | GR220 | 300 | 2009– | |
| DAF | FA 65.180 | CF 65 | CE136C | 185 | 2001–2013 | |
| DAF | FA 65.220 | CF 65 | CE162C | 220 | 2001–2013 | |
| DAF | FA 65.220 | CF 65 | GR165S1 | 224 | 2006–2013 | |
| DAF | FA 65.250 | CF 65 | GR184S1 | 250 | 2006–2013 | |
| DAF | FA 65.250 | CF 65 | CE184C | 250 | 2001–2013 | |
| DAF | FA 65.280 | CF 65 | GR210S1 | 286 | 2006–2013 | |
| DAF | FA 65.300 | CF 65 | GR220 | 300 | 2009–2013 | |
| DAF | FAN 55.180 | LF 55 | CE136C | 180-188 | 2006– | |
| DAF | FAN 55.220 | LF 55 | GR165S1 | 224 | 2006– | |
| DAF | FAN 55.220 | LF 55 | CE162C | 220 | 2006– | |
| DAF | FAN 55.250 | LF 55 | CE184C | 250 | 2006– | |
| DAF | FAN 55.250 | LF 55 | GR184S1 | 250 | 2006– | |
| DAF | FAN 55.290 | LF 55 | GR210S1 | 286 | 2006– | |
| DAF | FT 55.180 | LF 55 | CE136C | 185 | 2001– | |
| DAF | FT 55.220 | LF 55 | CE162C | 220 | 2001– | |
| DAF | FT 55.220 | LF 55 | GR165S1 | 224 | 2006– | |
| DAF | FT 55.250 | LF 55 | GR184S1 | 250 | 2006– | |
| DAF | FT 55.250 | LF 55 | CE184C | 250 | 2001– | |
| DAF | FT 55.280 | LF 55 | GR210S1 | 286 | 2006– | |
| DAF | FT 55.290 | LF 55 | GR210S1 | 286 | 2006– |
