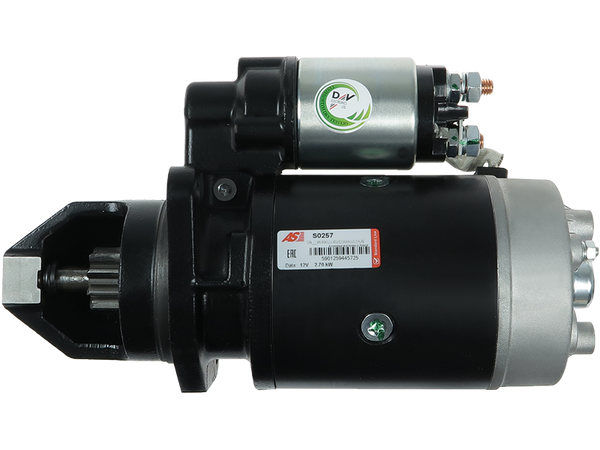

S0257
Startmotorer
STANDARD LINE
1253 kr
Köp nu
| EAN | 5901259445725 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001362300 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.70 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 316.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 46 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | IH 1046 | D-358 | 0 | 1974–1979 | ||
| CASE IH | IH 1056 | D-358 | 0 | 1982–1985 | ||
| CASE IH | IH 1246 | DT-358 | 0 | 1974–1979 | ||
| CASE IH | IH 221 | 0 | 1972–1974 | |||
| CASE IH | IH 554 A | 0 | 1974–1975 | |||
| CASE IH | IH 644 | D-206 | 0 | 1974–1986 | ||
| CASE IH | IH 724A | 0 | 1973–1974 | |||
| CASE IH | IH 744 A | 0 | 1974–1984 | |||
| CASE IH | IH 844 | D-246 | 0 | 1974–1990 | ||
| CASE IH | IH 946 | D-310 | 0 | 1974–1979 | ||
| CASE IH | IH 956 XL | D-358 | 0 | 1982–1990 | ||
| CASE IH | IH H30B Payloader | D239 | 0 | 1975–1976 | ||
| CASE IH | IH H50B Payloader | 0 | 1973–1979 | |||
| CASE IH | IH H60B Payloader | 0 | 1971–1984 | |||
| CASE IH | IH TD8B Crawler Tractor | 0 | 1969–1976 | |||
| CASE IH | 2.5 | IH 500-Serie 531 | D-310 | 0 | 1986–1986 | |
| CASE IH | 3.4 | IH 600-Serie 644 | D-206 | 0 | 1986–1986 | |
| CASE IH | 3.4 | IH 644 | D-206 | 0 | 1974–1985 | |
| CASE IH | 3.4 | IH 644 A | D-206 | 0 | 1974–1985 | |
| CASE IH | 3.9 | IH 400-Serie 431 | D-239 | 0 | 1986–1986 | |
| CASE IH | 3.9 | IH 800-Serie 321 | D-239 | 0 | 1986–1986 | |
| CASE IH | 4.0 | IH 125 B2 | D239 | 0 | 1973–1986 | |
| CASE IH | 4.0 | IH 3654 | D-239 | 0 | 1973–1978 | |
| CASE IH | 4.0 | IH 431 | D239 | 0 | 1973–1985 | |
| CASE IH | 4.0 | IH 744 | D239 | 0 | 1974–1984 | |
| CASE IH | 4.0 | IH 744 A | D239 | 0 | 1974–1984 | |
| CASE IH | 4.0 | IH 844 A | D-246 | 0 | 1974–1985 | |
| CASE IH | 4.0 | IH 844 S, SA | D-268 | 0 | 1975–1985 | |
| CASE IH | 4.0 | IH H 30 B | D-239 | 0 | 1976–1985 | |
| CASE IH | 4.0 | IH TD 8B | D-239 | 0 | 1973–1978 | |
| CASE IH | 4.3 | IH 800-Serie 844A | D-246 | 0 | 1986–1990 | |
| CASE IH | 4.4 | IH 800-Serie 844 S/SA | D-268 | 0 | 1986–1990 | |
| CASE IH | 5.1 | IH 325 | D-239 | 0 | 1973–1985 | |
| CASE IH | 5.1 | IH 400-Serie 431 | D-310 | 0 | 1986–1986 | |
| CASE IH | 5.1 | IH 431 | D-310 | 0 | 1973–1985 | |
| CASE IH | 5.1 | IH 500-Serie 531 | D-310 | 0 | 1973–1985 | |
| CASE IH | 5.1 | IH 946 A | D-310 | 0 | 1973–1977 | |
| CASE IH | 5.1 | IH H-Serie H 50 B | D-310 | 0 | 1973–1979 | |
| CASE IH | 5.9 | IH 1046 A | D-358 | 0 | 1973–1977 | |
| CASE IH | 5.9 | IH 1246 A | DT-358 | 0 | 1974–1979 | |
| CASE IH | 5.9 | IH 3964 Yumbo | D-358 | 0 | 1973–1986 | |
| CASE IH | 5.9 | IH 3965 Yumbo | D-358 | 0 | 1971–1986 | |
| CASE IH | 5.9 | IH 3980 Yumbo | D-358 | 0 | 1972–1986 | |
| CASE IH | 5.9 | IH 500-Serie 531 | D-358 | 0 | 1973–1986 | |
| CASE IH | 5.9 | IH H 60 B | D-358 | 0 | 1971–1984 | |
| INTERNATIONAL HARV. | 724 A | CM-Series | D-239 | 67 | 1969–1974 |
