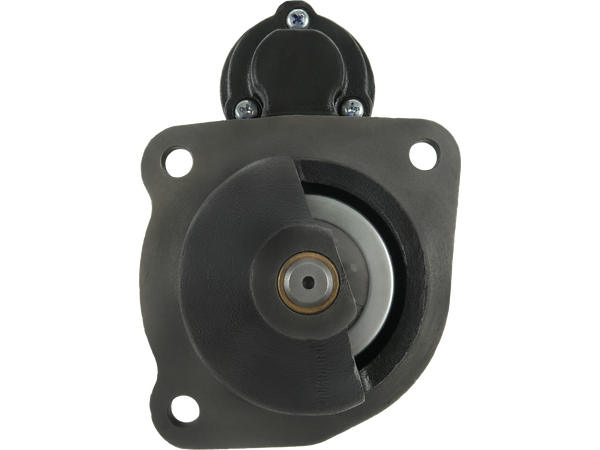

S9505S
Startmotorer
STANDARD LINE
1500 kr
Köp nu
| EAN | 5902129245605 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZE4238 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 3.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 49.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 288.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
Passar i 92 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | 221 | 0 | 1972–1974 | |||
| CASE IH | 30 B | 0 | 1975–1976 | |||
| CASE IH | 50 B | 0 | 1973–1979 | |||
| CASE IH | 60 B | 0 | 1971–1984 | |||
| CASE IH | TD8 B | 0 | 1969–1976 | |||
| CASE IH | VG889 | 0 | – | |||
| CASE IH | 2.5 | 531 | D-310 | 0 | 1986–1986 | |
| CASE IH | 3.4 | 644 | D-206 | 0 | 1986–1986 | |
| CASE IH | 3.4 | 644 | D-206 | 0 | 1974–1980 | |
| CASE IH | 3.4 | 644A | D-206 | 0 | 1986–1986 | |
| CASE IH | 3.4 | 654 | D-206 | 0 | 1972–1974 | |
| CASE IH | 3.4 | 733 | D-206 | 0 | 1980–1989 | |
| CASE IH | 3.4 | 733 A | D-206 | 0 | 1980–1989 | |
| CASE IH | 3.4 | 733 EA | D-206 | 0 | 1980–1989 | |
| CASE IH | 3.9 | 321 | D-239 | 0 | 1986– | |
| CASE IH | 3.9 | 724 A | D-239 | 0 | 1969–1974 | |
| CASE IH | 3.9 | 743 | D-239 | 0 | 1981–1989 | |
| CASE IH | 3.9 | 743 XLA | D-239 | 0 | 1981–1989 | |
| CASE IH | 3.9 | 745 S | D-239 | 0 | 1980–1989 | |
| CASE IH | 3.9 | 745 SA | D-239 | 0 | 1980–1989 | |
| CASE IH | 3.9 | 844 | D-310 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 | 4-206-268 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 | D-385 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 A | D-385 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 A | D-310 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 A | 4-206-268 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 S | 4-206-268 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 S | D-385 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 S | D-310 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 SA | D-310 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 SA | 4-206-268 | 0 | 1975–1990 | |
| CASE IH | 3.9 | 844 SA | D-385 | 0 | 1975–1990 | |
| CASE IH | 4.3 | 844 A | D-246 | 0 | 1986–1990 | |
| CASE IH | 4.4 | 844 | D-268 | 0 | 1986–1990 | |
| CASE IH | 4.4 | 844 S | D-268 | 0 | 1986–1990 | |
| CASE IH | 4.4 | 844 SA | D-268 | 0 | 1986–1990 | |
| CASE IH | 5.1 | 431 | D-310 | 0 | 1986– | |
| CASE IH | 5.9 | 1046 | D-358 | 0 | 1971–1977 | |
| CASE IH | 5.9 | 1055 | D-358 | 0 | 1981–1982 | |
| CASE IH | 5.9 | 1056 | D-358 | 0 | 1981–1989 | |
| CASE IH | 5.9 | 1056 XL | D-358 | 0 | 1981–1989 | |
| CASE IH | 5.9 | 531 | D-358 | 0 | 1986–1986 | |
| CASE IH | 5.9 | 955 | D-358 | 0 | 1981–1993 | |
| CASE IH | 5.9 | 955 A | D-358 | 0 | 1981–1993 | |
| CASE IH | 5.9 | 955 XLA | D-358 | 0 | 1981–1993 | |
| INTERNATIONAL HARV. | 1046 | CM-Series | D-358 | 99-101 | 1971–1977 | |
| INTERNATIONAL HARV. | 1046 A | CM-Series | D-358 | 99-101 | 1971–1977 | |
| INTERNATIONAL HARV. | 1055 | C-Series | D-358 | 99-101 | 1977–1982 | |
| INTERNATIONAL HARV. | 1055 A | C-Series | D-358 | 99-101 | 1977–1982 | |
| INTERNATIONAL HARV. | 1055 XLA | C-Series | D-358 | 99-101 | 1981–1982 | |
| INTERNATIONAL HARV. | 1056 XL | C-Series | D-358 | 105 | 1982–1992 | |
| INTERNATIONAL HARV. | 1056 XLA | C-Series | D-358 | 105 | 1982–1992 | |
| INTERNATIONAL HARV. | 1246 | CM-Series | DT-358 | 120 | 1972–1979 | |
| INTERNATIONAL HARV. | 1246 A | CM-Series | DT-358 | 120 | 1972–1979 | |
| INTERNATIONAL HARV. | 433, 433 E | A-Series | D-155 | 35 | 1975–1990 | |
| INTERNATIONAL HARV. | 453 V | CM-Series | D-155 | 45 | 1971–1975 | |
| INTERNATIONAL HARV. | 453, 453 E | CM-Series | D-155 | 45 | 1971–1975 | |
| INTERNATIONAL HARV. | 533 A | A-Series | D-155 | 45 | 1975–1990 | |
| INTERNATIONAL HARV. | 533, 533 E | A-Series | D-155 | 45 | 1975–1990 | |
| INTERNATIONAL HARV. | 554 | B-Series | D-206 | 54 | 1974–1975 | |
| INTERNATIONAL HARV. | 554 A | B-Series | D-206 | 54 | 1974–1975 | |
| INTERNATIONAL HARV. | 633 A, 633 EA | A-Series | D-179 | 52 | 1975–1989 | |
| INTERNATIONAL HARV. | 633 V | A-Series | D-179 | 52 | 1976–1987 | |
| INTERNATIONAL HARV. | 633, 633 E | A-Series | D-179 | 52 | 1975–1989 | |
| INTERNATIONAL HARV. | 644 | B-Series | D-206 | 60 | 1974–1980 | |
| INTERNATIONAL HARV. | 644 A | B-Series | D-206 | 60 | 1974–1980 | |
| INTERNATIONAL HARV. | 654 | CM-Series | D-206 | 60 | 1972–1974 | |
| INTERNATIONAL HARV. | 654 A | CM-Series | D-206 | 60 | 1972–1974 | |
| INTERNATIONAL HARV. | 724 | CM-Series | D-239 | 67 | 1969–1974 | |
| INTERNATIONAL HARV. | 724 A | CM-Series | D-239 | 67 | 1969–1974 | |
| INTERNATIONAL HARV. | 733 A, 733 EA | A-Series | D-206 | 60 | 1980–1989 | |
| INTERNATIONAL HARV. | 733, 733 E | A-Series | D-206 | 60 | 1980–1989 | |
| INTERNATIONAL HARV. | 743 | 743 | D-239 | 67 | 1980–1989 | |
| INTERNATIONAL HARV. | 743A | 743 | D-239 | 67 | 1980–1989 | |
| INTERNATIONAL HARV. | 743XL | 743 | D-239 | 67 | 1981–1989 | |
| INTERNATIONAL HARV. | 743XLA | 743 | D-239 | 67 | 1981–1989 | |
| INTERNATIONAL HARV. | 744 | B-Series | D-239 | 67-71 | 1974–1980 | |
| INTERNATIONAL HARV. | 744 A | B-Series | D-239 | 67-71 | 1974–1980 | |
| INTERNATIONAL HARV. | 745 S | CM-Series | D-239 | 72 | 1980–1989 | |
| INTERNATIONAL HARV. | 745 SA | CM-Series | D-239 | 72 | 1980–1989 | |
| INTERNATIONAL HARV. | 824 | CM-Series | D-239 | 74 | 1971–1973 | |
| INTERNATIONAL HARV. | 824 A | CM-Series | D-239 | 74 | 1971–1973 | |
| INTERNATIONAL HARV. | 833 A | A-Series | D-239 | 67 | 1981–1989 | |
| INTERNATIONAL HARV. | 844S | 844 | D-268 | 80 | 1975–1989 | |
| INTERNATIONAL HARV. | 844SA | 844 | D-268 | 80 | 1975–1989 | |
| INTERNATIONAL HARV. | 844XLA | 844 | D-268 | 80 | 1981–1990 | |
| INTERNATIONAL HARV. | 856XL | 856 | DT-239 | 85 | 1983–1991 | |
| INTERNATIONAL HARV. | 856XLA | 856 | DT-239 | 85 | 1983–1991 | |
| INTERNATIONAL HARV. | 955 | C-Series | D-358 | 84-90 | 1979–1982 | |
| INTERNATIONAL HARV. | 955 A | C-Series | D-358 | 84-90 | 1979–1982 | |
| INTERNATIONAL HARV. | 955 XL | C-Series | D-358 | 90 | 1981–1982 | |
| INTERNATIONAL HARV. | 955 XLA | C-Series | D-358 | 90 | 1981–1982 |
