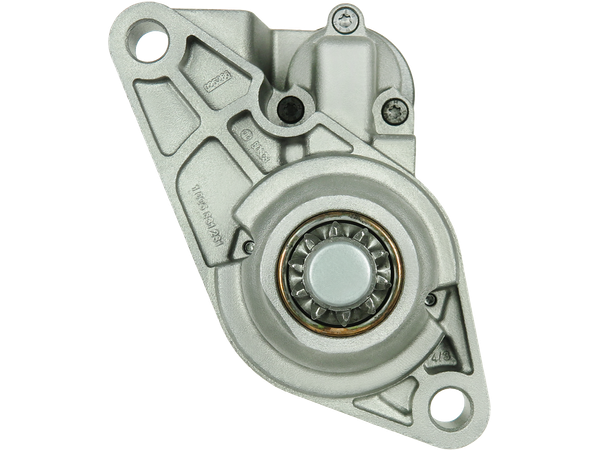

S0686PR
Startmotorer
PREMIUM LINE
689 kr
Köp nu
| EAN | 5902129091431 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: PRSW165, STRW165 AUTO MAGNETO: AM-2401 BOSCH: 0001120400, 0001120401 CARGO: 113515, F032113515 CASCO: CST10138AS, CST10138GS CEVAM: 3345 DELCO: DRT0780, DT1890 ELECTROLOG: STR1235 ELSTOCK: 25-3131 ERA: 220530, 220544 HC PARTS: CS1282 HERTH+BUSS: 42020780 KRAUF: STB1282 KUHNER: 101282, 101282B LUCAS: LRS01610, LRS1610 MAGNETI MARELLI: 06352120400, 944280207800, MRS20780 MEAT & DORIA: 5010026 POWERMAX: 88212172 PSH: 300.559.102.210 REAL: 20401831BN ROLLCO: STM1037 SANDO: 6010138.0, 6010138.1 SIDAT: S12BH0176, S12BH0176A2 STARDAX: STX200135, STX200135R VALEO: 438261, 458421, D7ES6 VW: 02T911023D, 02T911023G, 02T911023GX, 02T911023Q, 2T911023D, 2T911023G, 2T911023Q, JZW911023HX WAI / TRANSPO: 32613N, 32613R |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.90 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.50 |
| B-storlek [ mm ] | 52.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 194.00 |
| O.1 [ mm ] | 151.00 |
| C.1 [ mm ] | 12.50 |
| C.2 [ mm ] | 12.50 |
Passar i 151 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUDI | 1.2 TDI | A2 (8Z0) | ANY | 61 | Diesel | 2001–2005 |
| AUDI | 1.4 | A2 (8Z0) | AUA | 75 | Petrol | 2000–2005 |
| AUDI | 1.4 | A2 (8Z0) | BBY | 75 | Petrol | 2000–2005 |
| AUDI | 1.6 FSI | A2 (8Z0) | BAD | 110 | Petrol | 2002–2005 |
| SEAT | 1.2 | CORDOBA (6L2) | AZQ | 64 | Petrol | 2002–2006 |
| SEAT | 1.2 | CORDOBA (6L2) | BME | 64 | Petrol | 2002–2006 |
| SEAT | 1.2 | IBIZA III (6L1) | AZQ | 64 | Petrol | 2002–2006 |
| SEAT | 1.2 | IBIZA III (6L1) | BME | 64 | Petrol | 2002–2006 |
| SEAT | 1.4 16V | CORDOBA (6L2) | BBZ | 100 | Petrol | 2002–2009 |
| SEAT | 1.4 16V | CORDOBA (6L2) | BBY | 75 | Petrol | 2002–2007 |
| SEAT | 1.4 16V | CORDOBA (6L2) | BKY | 75 | Petrol | 2002–2007 |
| SEAT | 1.4 16V | IBIZA II (6K1) | AUA | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | IBIZA II (6K1) | APE | 75 | Petrol | 2000–2002 |
| SEAT | 1.4 16V | IBIZA III (6L1) | AUB | 100 | Petrol | 2002–2009 |
| SEAT | 1.4 16V | IBIZA III (6L1) | BBY | 75 | Petrol | 2002–2007 |
| SEAT | 1.4 16V | IBIZA III (6L1) | BBZ | 100 | Petrol | 2002–2009 |
| SEAT | 1.4 16V | IBIZA III (6L1) | BKY | 75 | Petrol | 2002–2007 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AFH | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AUB | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | CORDOBA (6K1, 6K2) | AQQ | 101 | Petrol | 1996–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AFH | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AUB | 101 | Petrol | 1997–2002 |
| SEAT | 1.4 i 16V | IBIZA II (6K1) | AQQ | 101 | Petrol | 1997–2002 |
| SEAT | 1.6 | CORDOBA (6L2) | BAH | 101 | Petrol | 2003–2009 |
| SEAT | 1.6 | IBIZA III (6L1) | BAH | 101 | Petrol | 2003–2009 |
| SEAT | 1.9 SDI | CORDOBA (6L2) | ASY | 64 | Diesel | 2002–2009 |
| SEAT | 1.9 SDI | IBIZA III (6L1) | ASY | 64 | Diesel | 2002–2005 |
| SKODA | 1.2 | FABIA I (6Y2) | AZQ | 64 | Petrol | 2003–2008 |
| SKODA | 1.2 | FABIA I (6Y2) | BMD | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I (6Y2) | BME | 64 | Petrol | 2003–2008 |
| SKODA | 1.2 | FABIA I (6Y2) | AWY | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Combi (6Y5) | BME | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Combi (6Y5) | BMD | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Combi (6Y5) | AZQ | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Combi (6Y5) | AWY | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Praktik (6Y5) | AWY | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Praktik (6Y5) | BME | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Praktik (6Y5) | BMD | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Praktik (6Y5) | AZQ | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Saloon (6Y3) | BME | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Saloon (6Y3) | BMD | 54 | Petrol | 2001–2007 |
| SKODA | 1.2 | FABIA I Saloon (6Y3) | AZQ | 64 | Petrol | 2003–2007 |
| SKODA | 1.2 | FABIA I Saloon (6Y3) | AWY | 54 | Petrol | 2001–2007 |
| SKODA | 1.4 | FABIA I Praktik (6Y5) | BKY | 75 | Petrol | 2004–2007 |
| SKODA | 1.4 16V | FABIA I (6Y2) | AUA | 75 | Petrol | 1999–2008 |
| SKODA | 1.4 16V | FABIA I (6Y2) | BKY | 75 | Petrol | 1999–2008 |
| SKODA | 1.4 16V | FABIA I (6Y2) | AUB | 100 | Petrol | 1999–2008 |
| SKODA | 1.4 16V | FABIA I (6Y2) | BBY | 75 | Petrol | 1999–2008 |
| SKODA | 1.4 16V | FABIA I (6Y2) | BBZ | 100 | Petrol | 1999–2008 |
| SKODA | 1.4 16V | FABIA I Combi (6Y5) | BBY | 75 | Petrol | 2000–2007 |
| SKODA | 1.4 16V | FABIA I Combi (6Y5) | AUB | 100 | Petrol | 2000–2007 |
| SKODA | 1.4 16V | FABIA I Combi (6Y5) | AUA | 75 | Petrol | 2000–2007 |
| SKODA | 1.4 16V | FABIA I Combi (6Y5) | BKY | 75 | Petrol | 2000–2007 |
| SKODA | 1.4 16V | FABIA I Combi (6Y5) | BBZ | 100 | Petrol | 2000–2007 |
| SKODA | 1.4 16V | FABIA I Saloon (6Y3) | BBZ | 100 | Petrol | 1999–2007 |
| SKODA | 1.4 16V | FABIA I Saloon (6Y3) | AUA | 75 | Petrol | 1999–2007 |
| SKODA | 1.4 16V | FABIA I Saloon (6Y3) | BKY | 75 | Petrol | 1999–2007 |
| SKODA | 1.4 16V | FABIA I Saloon (6Y3) | AUB | 100 | Petrol | 1999–2007 |
| SKODA | 1.4 16V | FABIA I Saloon (6Y3) | BBY | 75 | Petrol | 1999–2007 |
| SKODA | 1.9 SDI | FABIA I (6Y2) | ASY | 64 | Diesel | 1999–2008 |
| SKODA | 1.9 SDI | FABIA I Combi (6Y5) | ASY | 64 | Diesel | 2000–2007 |
| SKODA | 1.9 SDI | FABIA I Praktik (6Y5) | ASY | 64 | Diesel | 2001–2007 |
| SKODA | 1.9 SDI | FABIA I Saloon (6Y3) | ASY | 64 | Diesel | 1999–2007 |
| VW | 1.2 | FOX Hatchback (5Z1, 5Z3, 5Z4) | CHFB | 55 | Petrol | 2005–2011 |
| VW | 1.2 | FOX Hatchback (5Z1, 5Z3, 5Z4) | BMD | 55 | Petrol | 2005–2011 |
| VW | 1.2 | FOX Hatchback (5Z1, 5Z3, 5Z4) | CHFA | 60 | Petrol | 2010–2011 |
| VW | 1.2 | FOX Van (5Z1) | CHFA | 60 | Petrol | 2010–2011 |
| VW | 1.2 | POLO IV (9N_, 9A_) | BMD | 54 | Petrol | 2002–2007 |
| VW | 1.2 | POLO IV (9N_, 9A_) | AWY | 54 | Petrol | 2002–2007 |
| VW | 1.2 12V | POLO IV (9N_, 9A_) | BME | 64 | Petrol | 2001–2007 |
| VW | 1.2 12V | POLO IV (9N_, 9A_) | AZQ | 64 | Petrol | 2001–2007 |
| VW | 1.4 | FOX Hatchback (5Z1, 5Z3, 5Z4) | BKR | 75 | Petrol | 2005–2009 |
| VW | 1.4 | NEW BEETLE (9C1, 1C1) | BCA | 75 | Petrol | 2001–2010 |
| VW | 1.4 | NEW BEETLE Convertible (1Y7) | BCA | 75 | Petrol | 2003–2010 |
| VW | 1.4 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | BBY | 75 | Petrol | 2002–2012 |
| VW | 1.4 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | BBZ | 101 | Petrol | 2003–2005 |
| VW | 1.4 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | BKY | 75 | Petrol | 2002–2012 |
| VW | 1.4 16V | GOLF IV (1J1) | AXP | 75 | Petrol | 1997–2004 |
| VW | 1.4 16V | GOLF IV (1J1) | AHW | 75 | Petrol | 1997–2004 |
| VW | 1.4 16V | GOLF IV (1J1) | APE | 75 | Petrol | 1997–2004 |
| VW | 1.4 16V | GOLF IV (1J1) | BCA | 75 | Petrol | 1997–2004 |
| VW | 1.4 16V | GOLF IV (1J1) | AKQ | 75 | Petrol | 1997–2004 |
| VW | 1.4 16V | GOLF IV Variant (1J5) | AKQ | 75 | Petrol | 1999–2006 |
| VW | 1.4 16V | GOLF IV Variant (1J5) | AXP | 75 | Petrol | 1999–2006 |
| VW | 1.4 16V | GOLF IV Variant (1J5) | AHW | 75 | Petrol | 1999–2006 |
| VW | 1.4 16V | GOLF IV Variant (1J5) | APE | 75 | Petrol | 1999–2006 |
| VW | 1.4 16V | GOLF IV Variant (1J5) | BCA | 75 | Petrol | 1999–2006 |
| VW | 1.4 16V | GOLF V (1K1) | BCA | 75 | Petrol | 2003–2006 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AUA | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AQQ | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AHW | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | APE | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | ANM | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | BBY | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AUB | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AFK | 100 | Petrol | 1999–2005 |
| VW | 1.4 16V | LUPO I (6X1, 6E1) | AKQ | 75 | Petrol | 1998–2005 |
| VW | 1.4 16V | POLO (6N2) | AQQ | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AHW | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AFK | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | AUB | 101 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO (6N2) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO IV (9N_, 9A_) | AUA | 75 | Petrol | 2001–2008 |
| VW | 1.4 16V | POLO IV (9N_, 9A_) | BKY | 75 | Petrol | 2001–2008 |
| VW | 1.4 16V | POLO IV (9N_, 9A_) | BBZ | 101 | Petrol | 2001–2008 |
| VW | 1.4 16V | POLO IV (9N_, 9A_) | BBY | 75 | Petrol | 2001–2008 |
| VW | 1.4 16V | POLO IV (9N_, 9A_) | AUB | 101 | Petrol | 2001–2008 |
| VW | 1.4 16V | POLO Variant (6V5) | AUA | 75 | Petrol | 1999–2001 |
| VW | 1.4 16V | POLO Variant (6V5) | APE | 75 | Petrol | 1999–2001 |
| VW | 1.4 FSI | POLO IV (9N_, 9A_) | AXU | 86 | Petrol | 2002–2006 |
| VW | 1.4 TDI | FOX Hatchback (5Z1, 5Z3, 5Z4) | BNM | 70 | Diesel | 2005–2009 |
| VW | 1.6 | NEW BEETLE (9C1, 1C1) | AYD | 102 | Petrol | 2000–2010 |
| VW | 1.6 | NEW BEETLE (9C1, 1C1) | BFS | 102 | Petrol | 2000–2010 |
| VW | 1.6 | POLO III CLASSIC (6V2) | CCRA | 101 | Petrol | 2002–2006 |
| VW | 1.6 | POLO III CLASSIC (6V2) | BAH | 101 | Petrol | 2002–2006 |
| VW | 1.6 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | BAH | 101 | Petrol | 2002– |
| VW | 1.6 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | CFZA | 101 | Petrol | 2002– |
| VW | 1.6 | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | CCRA | 101 | Petrol | 2002– |
| VW | 1.6 16V GTI | POLO (6N2) | ARC | 125 | Petrol | 1999–2001 |
| VW | 1.6 16V GTI | POLO (6N2) | AVY | 125 | Petrol | 1999–2001 |
| VW | 1.6 FSI | BORA I (1J2) | BAD | 110 | Petrol | 2002–2005 |
| VW | 1.6 FSI | BORA Variant (1J6) | BAD | 110 | Petrol | 2002–2005 |
| VW | 1.6 FSI | GOLF IV (1J1) | BAD | 110 | Petrol | 2002–2005 |
| VW | 1.6 FSI | GOLF IV Variant (1J5) | BAD | 110 | Petrol | 2002–2006 |
| VW | 1.6 GTI | LUPO I (6X1, 6E1) | AVY | 125 | Petrol | 2000–2005 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | AWV | 150 | Petrol | 1999–2010 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | APH | 150 | Petrol | 1999–2010 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | AWU | 150 | Petrol | 1999–2010 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | AGU | 150 | Petrol | 1999–2010 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | BKF | 150 | Petrol | 1999–2010 |
| VW | 1.8 T | NEW BEETLE (9C1, 1C1) | AVC | 150 | Petrol | 1999–2010 |
| VW | 1.9 SDI | POLO IV (9N_, 9A_) | ASY | 64 | Diesel | 2001–2009 |
| VW | 1.9 SDI | POLO IV Saloon (9A4, 9A2, 9N2, 9A6) | ASY | 64 | Diesel | 2002–2012 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | BEV | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | AVH | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | CBPA | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | AZJ | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | AEG | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | BER | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | AQY | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | BHP | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | AZG | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | BEJ | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE (9C1, 1C1) | APK | 115 | Petrol | 1998–2010 |
| VW | 2.0 | NEW BEETLE Convertible (1Y7) | BDC | 115 | Petrol | 2002–2010 |
| VW | 2.0 | NEW BEETLE Convertible (1Y7) | BGD | 115 | Petrol | 2002–2010 |
| VW | 2.0 | NEW BEETLE Convertible (1Y7) | AZJ | 115 | Petrol | 2002–2010 |
| VW | 2.0 | NEW BEETLE Convertible (1Y7) | BEV | 115 | Petrol | 2002–2010 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | APE | 75 | Petrol | 1999–2001 |
| VW | 75 1.4 16V | POLO III CLASSIC (6V2) | AUA | 75 | Petrol | 1999–2001 |
