S0045PR
Startmotorer
PREMIUM LINE
689 kr
Köp nu
| EAN | 5902129266884 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer |
3EFFE: PRSS251, STRS251 ACAUTO: AC-CBS0295 AINDE: 25-1013CT, CGB-51013 AIRSTAL: 30-0120 ALANKO: 10440391, 10440399 ANDEL: ANM15270, ANM15270X ATL AUTOTECHNIK: A13050 AUTOELECTRO: AES5128 BOLK: BOL-B051056 BORG & BECK: BST2379 BOSCH: 0001110001, 0001110002, 0001110014, 0001110015, 0001110133, 0001110134, 0001117008, 0001317009, 0986013050, B001117071 BOVEZ: STA0092R BTS TURBO: S100263 CARGO: 111060, F032111060 CARWOOD GROUP: BREF0320986013050, BREF032111060 CASCO: CST10137AS CEVAM: 3582 COMLINE: CMA-621334, CST0382 DA SILVA: 026020, JD026020, MSQ0212 DAF: 1516724R DELCO: DRS3050 DRI: 311025092 EAI: 11398 ELECTROLOG: STR1533, STR79053 ELSTOCK: 25-1013 ERA: 220189, 220189A EUROTEC: 11013050 FARCOM: 103180 FRIESEN: 8013050 GHIBAUDI: SG0027, SG0027RB HC PARTS: CS295 HC-PARTS: HCS295 HELLA: 8EA012527-001, 8EA726055-001 HENKEL PARTS: 3116639, 3129245 ISKRA / LETRIKA: 11.130.722, AZE2536, IS0722 ITAB AUTOMOTIVE: 10010137AV KRAUF: STB0295 KUHNER: 10295 LAUBER: 22.0295 LOGISTIK: 330447 LUCAS: LRS00528, LRS528 MAGNETI MARELLI: 063720295010, 943251655, 943251655010, 944280130500, MQS295, MRS13050, MSR483 MAHLE: 72735930, MS302 MAPCO: 13888 MEAT & DORIA: 5010435 NK: 4716240 OSSCA: 01342 POWERMAX: 8213228, 88213228 PRESTOLITE: 35259910, M1210G PSH: 300.503.093.010, 300.503.093.018, 300.503.093.215, 300.503.093.311, 300.503.093.340, 300.503.093.440, 300.503.093.460, S132.158, S144.970 REAL: 20401731BN REMANTE: 011-001-000029R RNL: RNL1305, RNL1305T SANDO: 6010137.0 SIDAT: S12BH0437A2 SIOM: MAV6790 SNRA: VW9017 SOVEREIGN: SS829 STARDAX: STX200072, STX200072R STARTCAR: 398ST11 TESLA TECHNICS: TT15385, TT15385PRO TMI: ST00319 VALEO: 436020, 438495, VS255 VW: 068911023DX, 068911023EX, 068911023G, 068911023GX, 068911023JX, 068911023MX, 068911024K, 068911024KX, 176911023 WAI / TRANSPO: 17030N, 17030R WALKER: WST00363 WILMINK GROUP: WG2471112 WILSON: 91-15-6914, 91-15-6914N WOODAUTO: STR10044, WOOSTR2203 |

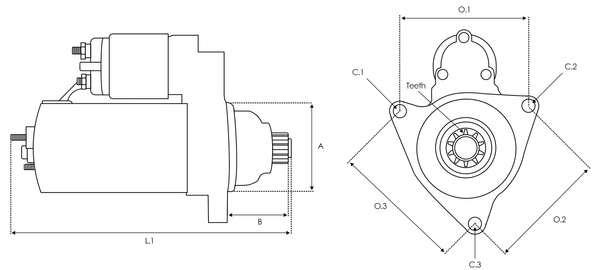

| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.70 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76.00 |
| B-storlek [ mm ] | 33.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 263.00 |
| O.1 [ mm ] | 123.00 |
| O.2 [ mm ] | 33.00 |
| O.3 [ mm ] | 112.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 12.00 |
| C.3 [ mm ] | 11.00 |
Passar i 114 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| VW | 1.5 D | GOLF I (17) | CK | 50 | Diesel | 1976–1980 |
| VW | 1.5 D | JETTA I (16) | CK | 50 | Diesel | 1978–1980 |
| VW | 1.6 | GOLF II Van (19E, 1G1) | 60 | Diesel | 1989–1991 | |
| VW | 1.6 D | CADDY I (14) | CR | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | CADDY I (14) | ME | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | CADDY I (14) | JK | 55 | Diesel | 1982–1992 |
| VW | 1.6 D | GOLF I (17) | JK | 54 | Diesel | 1980–1983 |
| VW | 1.6 D | GOLF I (17) | CR | 54 | Diesel | 1980–1983 |
| VW | 1.6 D | GOLF II (19E, 1G1) | ME | 54 | Diesel | 1983–1991 |
| VW | 1.6 D | GOLF II (19E, 1G1) | JP | 54 | Diesel | 1983–1991 |
| VW | 1.6 D | GOLF II (19E, 1G1) | ME | 50 | Diesel | 1983–1991 |
| VW | 1.6 D | GOLF II Van (19E, 1G1) | JP | 54 | Diesel | 1983–1991 |
| VW | 1.6 D | JETTA I (16) | JK | 54 | Diesel | 1980–1984 |
| VW | 1.6 D | JETTA I (16) | CR | 54 | Diesel | 1980–1984 |
| VW | 1.6 D | JETTA II (19E, 1G2, 165) | ME | 54 | Diesel | 1984–1991 |
| VW | 1.6 D | JETTA II (19E, 1G2, 165) | JP | 54 | Diesel | 1984–1991 |
| VW | 1.6 TD | GOLF I (17) | CY | 70 | Diesel | 1982–1983 |
| VW | 1.6 TD | GOLF II (19E, 1G1) | MF | 70 | Diesel | 1983–1991 |
| VW | 1.6 TD | GOLF II (19E, 1G1) | SB | 80 | Diesel | 1989–1991 |
| VW | 1.6 TD | GOLF II (19E, 1G1) | JR | 70 | Diesel | 1983–1991 |
| VW | 1.6 TD | GOLF II (19E, 1G1) | RA | 80 | Diesel | 1989–1991 |
| VW | 1.6 TD | GOLF II (19E, 1G1) | 1V | 60 | Diesel | 1989–1991 |
| VW | 1.6 TD | JETTA I (16) | CY | 70 | Diesel | 1982–1984 |
| VW | 1.6 TD | JETTA II (19E, 1G2, 165) | 1V | 60 | Diesel | 1990–1991 |
| VW | 1.6 TD | JETTA II (19E, 1G2, 165) | MF | 70 | Diesel | 1984–1991 |
| VW | 1.6 TD | JETTA II (19E, 1G2, 165) | SB | 80 | Diesel | 1989–1991 |
| VW | 1.6 TD | JETTA II (19E, 1G2, 165) | JR | 70 | Diesel | 1984–1991 |
| VW | 1.6 TD | JETTA II (19E, 1G2, 165) | RA | 80 | Diesel | 1989–1991 |
| VW | 1.6 TD | PASSAT B2 (32B) | RA | 80 | Diesel | 1988–1989 |
| VW | 1.6 TD | PASSAT B3/B4 (3A2, 35I) | SB | 80 | Diesel | 1988–1993 |
| VW | 1.6 TD | PASSAT B3/B4 (3A2, 35I) | RA | 80 | Diesel | 1988–1993 |
| VW | 1.6 TD | PASSAT B3/B4 Variant (3A5, 35I) | SB | 80 | Diesel | 1988–1993 |
| VW | 1.6 TD | PASSAT B3/B4 Variant (3A5, 35I) | RA | 80 | Diesel | 1988–1993 |
| VW | 1.9 | PASSAT B2 Variant (33B) | WN | 115 | Petrol | 1981–1983 |
| VW | 1.9 TD | PASSAT B3/B4 (315, 3A5) | AAZ | 75 | Diesel | 1993–1996 |
| VW | 1.9 TD | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ABL | 68 | Diesel | 1992–2003 |
| VW | 1.9 TD | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ABL | 68 | Diesel | 1992–2003 |
| VW | 2.4 D | CALIFORNIA T4 Camper (7DJ, 7DK, 70J) | AJA | 75 | Diesel | 1998–2002 |
| VW | 2.4 D | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.4 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.4 D | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AJA | 75 | Diesel | 1997–2003 |
| VW | 2.4 D | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAB | 78 | Diesel | 1990–1998 |
| VW | 2.5 | CALIFORNIA T4 Camper (7DJ, 7DK, 70J) | AEU | 110 | Petrol | 1998–2002 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEU | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAF | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEN | 110 | Petrol | 1990–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACU | 110 | Petrol | 1990–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AAF | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AEU | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACU | 110 | Petrol | 1992–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AAF | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AEU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AEU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | APL | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACU | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AET | 115 | Petrol | 1996–2003 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AAF | 110 | Petrol | 1992–2001 |
| VW | 2.5 Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AVT | 115 | Petrol | 1996–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AJT | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AYC | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AYY | 88 | Diesel | 1998–2003 |
| VW | 2.5 TDI | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AUF | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AXL | 102 | Diesel | 1996–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | ACV | 102 | Diesel | 1996–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AXL | 102 | Diesel | 1998–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | ACV | 102 | Diesel | 1998–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AXL | 102 | Diesel | 1995–2003 |
| VW | 2.5 TDI Syncro | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | ACV | 102 | Diesel | 1995–2003 |
| VW | 2.8 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AES | 140 | Petrol | 1996–2000 |
| VW | 2.8 VR 6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AES | 140 | Petrol | 1995–2000 |
| VW | 2.8 VR6 | PASSAT B3/B4 Variant (3A5, 35I) | AAA | 174 | Petrol | 1991–1997 |
| VW | 2.8 VR6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) | AXK | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, 7D | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AMV | 204 | Petrol | 2000–2003 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AES | 140 | Petrol | 1996–2000 |
| VW | 2.8 VR6 | TRANSPORTER T4 Van (70A, 70H, 7DA, 7DH) | AXK | 204 | Petrol | 2000–2003 |
