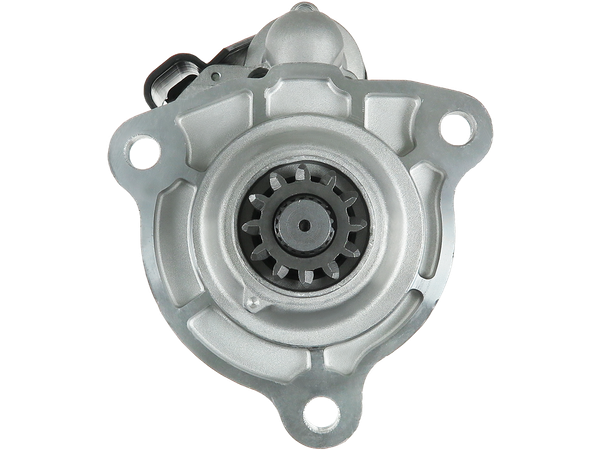

S0776S
Startmotorer
STANDARD LINE
1972 kr
Köp nu
| EAN | 5902129109587 |
| Tillverkare | AS-PL |
| Ersätter | BOSCH |
| OE-nummer | 0001261071 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 325.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 14.00 |
| C.2 [ mm ] | 14.00 |
| C.3 [ mm ] | 14.00 |
Passar i 637 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| DAF | FA 105.510 | XF 105 | MX375 | 510 | 2005– | |
| DAF | FA 220 | CF | PX-7164 | 223 | 2014– | |
| DAF | FA 230 | CF | PX-7172 | 234 | 2017– | |
| DAF | FA 250 | CF | PX-7186 | 253 | 2014– | |
| DAF | FA 260 | CF | PX-7194 | 264 | 2017– | |
| DAF | FA 280 | CF | PX-7208 | 283 | 2014– | |
| DAF | FA 290 | CF | PX-7217 | 295 | 2017– | |
| DAF | FA 290 | CF | MX-11210 | 286 | 2013– | |
| DAF | FA 300 | CF | MX-11220 | 299 | 2017– | |
| DAF | FA 300 | XD | MX-11220 | 299 | 2022– | |
| DAF | FA 310 | CF | PX-7231 | 314 | 2014– | |
| DAF | FA 320 | CF | PX-7239 | 325 | 2017– | |
| DAF | FA 330 | CF | MX-11240 | 326 | 2013– | |
| DAF | FA 340 | CF | MX-11251 | 341 | 2017– | |
| DAF | FA 340 | XD | MX-11251 | 341 | 2022– | |
| DAF | FA 370 | CF | MX-11271 | 370 | 2013– | |
| DAF | FA 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FA 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FA 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FA 400 | CF | MX-11291 | 396 | 2013– | |
| DAF | FA 410 | CF | MX-13303 | 412 | 2013– | |
| DAF | FA 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FA 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FA 410 | XF | MX-13303 | 412 | 2012– | |
| DAF | FA 410 | XF II | MX-11300 | 408 | 2021– | |
| DAF | FA 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FA 430 | XF | MX-13315 | 428 | 2017– | |
| DAF | FA 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FA 430 | XG | MX-13315 | 428 | 2021– | |
| DAF | FA 430 | XG+ | MX-13315 | 428 | 2021– | |
| DAF | FA 440 | CF | MX-11320 | 435 | 2013– | |
| DAF | FA 440 | XF | MX-11320 | 435 | 2012– | |
| DAF | FA 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FA 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FA 450 | XF | MX-11330 | 449 | 2017– | |
| DAF | FA 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FA 450 | XG | MX-11330 | 449 | 2021– | |
| DAF | FA 450 | XG+ | MX-11330 | 449 | 2021– | |
| DAF | FA 460 | CF | MX-13340 | 462 | 2013– | |
| DAF | FA 460 | XF | MX-13340 | 462 | 2012– | |
| DAF | FA 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FA 480 | XF | MX-13355 | 483 | 2017– | |
| DAF | FA 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FA 480 | XG | MX-13355 | 483 | 2021– | |
| DAF | FA 480 | XG+ | MX-13355 | 483 | 2021– | |
| DAF | FA 510 | CF | MX-13375 | 510 | 2013– | |
| DAF | FA 510 | XF | MX-13375 | 510 | 2012– | |
| DAF | FA 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FA 530 | XF | MX-13390 | 530 | 2017– | |
| DAF | FA 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FA 530 | XG | MX-13390 | 530 | 2021– | |
| DAF | FA 530 | XG+ | MX-13390 | 530 | 2021– | |
| DAF | FAC 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAC 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAC 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FAC 400 | CF | MX-11291 | 396 | 2015– | |
| DAF | FAC 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAC 410 | CF | MX-13303 | 412 | 2015– | |
| DAF | FAC 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAC 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FAC 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FAC 440 | CF | MX-11320 | 435 | 2015– | |
| DAF | FAC 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAC 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAC 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FAC 460 | CF | MX-13340 | 462 | 2015– | |
| DAF | FAC 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FAC 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FAC 510 | CF | MX-13375 | 510 | 2015– | |
| DAF | FAC 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FAC 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FAD 105.510 | XF 105 | MX375 | 510 | 2005– | |
| DAF | FAD 290 | CF | MX-11210 | 286 | 2013– | |
| DAF | FAD 330 | CF | MX-11240 | 326 | 2013– | |
| DAF | FAD 370 | CF | MX-11271 | 370 | 2013– | |
| DAF | FAD 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAD 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAD 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FAD 400 | CF | MX-11291 | 396 | 2013– | |
| DAF | FAD 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAD 410 | CF | MX-13303 | 412 | 2013– | |
| DAF | FAD 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAD 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FAD 430 | XF | MX-13315 | 428 | 2017– | |
| DAF | FAD 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FAD 440 | CF | MX-11320 | 435 | 2013– | |
| DAF | FAD 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAD 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAD 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FAD 460 | CF | MX-13340 | 462 | 2013– | |
| DAF | FAD 460 | XF | MX-13340 | 462 | 2012– | |
| DAF | FAD 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FAD 480 | XF | MX-13355 | 483 | 2017– | |
| DAF | FAD 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FAD 510 | CF | MX-13375 | 510 | 2013– | |
| DAF | FAD 510 | XF | MX-13375 | 510 | 2012– | |
| DAF | FAD 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FAD 530 | XF | MX-13390 | 530 | 2017– | |
| DAF | FAD 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FAG 300 | CF | MX-11220 | 299 | 2017– | |
| DAF | FAG 300 | XD | MX-11220 | 299 | 2022– | |
| DAF | FAG 340 | CF | MX-11251 | 341 | 2017– | |
| DAF | FAG 340 | XD | MX-11251 | 341 | 2022– | |
| DAF | FAG 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAG 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAG 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAG 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAG 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAG 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAK 105.510 | XF 105 | MX375 | 510 | 2005– | |
| DAF | FAK 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAK 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAK 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FAK 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAK 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAK 410 | XF | MX-13303 | 412 | 2012– | |
| DAF | FAK 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FAK 430 | XF | MX-13315 | 428 | 2017– | |
| DAF | FAK 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FAK 440 | XF | MX-11320 | 435 | 2012– | |
| DAF | FAK 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAK 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAK 450 | XF | MX-11330 | 449 | 2017– | |
| DAF | FAK 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FAK 460 | XF | MX-13340 | 462 | 2012– | |
| DAF | FAK 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FAK 480 | XF | MX-13355 | 483 | 2017– | |
| DAF | FAK 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FAK 510 | XF | MX-13375 | 510 | 2012– | |
| DAF | FAK 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FAK 530 | XF | MX-13390 | 530 | 2017– | |
| DAF | FAK 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FAN 105.510 | XF 105 | MX375 | 510 | 2005– | |
| DAF | FAN 280 | CF | PX-7208 | 283 | 2015– | |
| DAF | FAN 290 | CF | PX-7217 | 295 | 2017– | |
| DAF | FAN 290, FAG 290 | CF | MX-11210 | 286 | 2013– | |
| DAF | FAN 300 | CF | MX-11220 | 299 | 2017– | |
| DAF | FAN 300 | XD | MX-11220 | 299 | 2022– | |
| DAF | FAN 310 | CF | PX-7231 | 314 | 2015– | |
| DAF | FAN 320 | CF | PX-7239 | 325 | 2017– | |
| DAF | FAN 330, FAG 330 | CF | MX-11240 | 326 | 2013– | |
| DAF | FAN 340 | CF | MX-11251 | 341 | 2017– | |
| DAF | FAN 340 | XD | MX-11251 | 341 | 2022– | |
| DAF | FAN 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAN 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAN 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FAN 370, FAG 370 | CF | MX-11271 | 370 | 2013– | |
| DAF | FAN 400, FAG 400 | CF | MX-11291 | 396 | 2013– | |
| DAF | FAN 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAN 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAN 410 | XF | MX-13303 | 412 | 2012– | |
| DAF | FAN 410 | XF II | MX-11300 | 408 | 2021– | |
| DAF | FAN 410, FAG 410 | CF | MX-13303 | 412 | 2013– | |
| DAF | FAN 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FAN 430 | XF | MX-13315 | 428 | 2017– | |
| DAF | FAN 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FAN 430 | XG | MX-13315 | 428 | 2021– | |
| DAF | FAN 430 | XG+ | MX-13315 | 428 | 2021– | |
| DAF | FAN 440 | XF | MX-11320 | 435 | 2012– | |
| DAF | FAN 440, FAG 440 | CF | MX-11320 | 435 | 2013– | |
| DAF | FAN 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAN 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAN 450 | XF | MX-11330 | 449 | 2017– | |
| DAF | FAN 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FAN 450 | XG | MX-11330 | 449 | 2021– | |
| DAF | FAN 450 | XG+ | MX-11330 | 449 | 2021– | |
| DAF | FAN 460 | XF | MX-13340 | 462 | 2012– | |
| DAF | FAN 460, FAG 460 | CF | MX-13340 | 462 | 2013– | |
| DAF | FAN 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FAN 480 | XF | MX-13355 | 483 | 2017– | |
| DAF | FAN 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FAN 480 | XG | MX-13355 | 483 | 2021– | |
| DAF | FAN 480 | XG+ | MX-13355 | 483 | 2021– | |
| DAF | FAN 510 | XF | MX-13375 | 510 | 2012– | |
| DAF | FAN 510, FAG 510 | CF | MX-13375 | 510 | 2013– | |
| DAF | FAN 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FAN 530 | XF | MX-13390 | 530 | 2017– | |
| DAF | FAN 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FAN 530 | XG | MX-13390 | 530 | 2021– | |
| DAF | FAN 530 | XG+ | MX-13390 | 530 | 2021– | |
| DAF | FAQ 370 | CF | MX-11270 | 367 | 2017– | |
| DAF | FAQ 370 | XD | MX-11270 | 367 | 2022– | |
| DAF | FAQ 370 | XF II | MX-11270 | 367 | 2021– | |
| DAF | FAQ 400, FAX 400 | CF | MX-11291 | 396 | 2015– | |
| DAF | FAQ 410 | CF | MX-11300 | 408 | 2017– | |
| DAF | FAQ 410 | XD | MX-11300 | 408 | 2022– | |
| DAF | FAQ 410, FAX 410 | CF | MX-13303 | 412 | 2015– | |
| DAF | FAQ 430 | CF | MX-13315 | 428 | 2017– | |
| DAF | FAQ 430 | XF II | MX-13315 | 428 | 2021– | |
| DAF | FAQ 440, FAX 440 | CF | MX-11320 | 435 | 2015– | |
| DAF | FAQ 450 | CF | MX-11330 | 449 | 2017– | |
| DAF | FAQ 450 | XD | MX-11330 | 449 | 2022– | |
| DAF | FAQ 450 | XF II | MX-11330 | 449 | 2021– | |
| DAF | FAQ 460, FAX 460 | CF | MX-13340 | 462 | 2015– | |
| DAF | FAQ 480 | CF | MX-13355 | 483 | 2017– | |
| DAF | FAQ 480 | XF II | MX-13355 | 483 | 2021– | |
| DAF | FAQ 510, FAX 510 | CF | MX-13375 | 510 | 2015– | |
| DAF | FAQ 530 | CF | MX-13390 | 530 | 2017– | |
| DAF | FAQ 530 | XF II | MX-13390 | 530 | 2021– | |
| DAF | FAR 105.510 | XF 105 | MX375 | 510 | 2005– |
Visar 200 av 637 fordon
