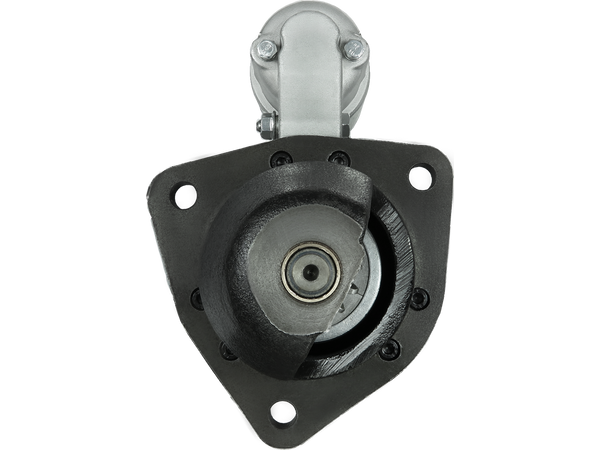

S9005
Startmotorer
STANDARD LINE
1971 kr
Köp nu
| EAN | 5901259423785 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
3EFFE: STRS428 AINDE: CGB-96510 AS-PL: S9005 CARGO: 110556, F032110556 CASCO: CST50600AS CEVAM: 8631 ELECTROLOG: STR8852 ELSTOCK: 45-1394, 45-1404 HC PARTS: JS740 HELLA: 8EA730281-001 KOMATSU: 600-813-3660, 600-813-4650, 6008133560, 6008133650, 6008133651, 6008133721, 6008134560, 6008134651, 6008134652, 6008135660 LOGISTIK: 335590 LUCAS: LRS01874, LRS01878, LRS1874, LRS1878 NIKKO: 0-23000-6510 PSH: 941.523.133, 941.523.133.140, 941.523.133.710, S136.221, S144.599 REAL: 20446006BN SANDO: 6050600 SIOM: MAV526000 WAI / TRANSPO: 18105N WOODAUTO: STR29010, STR29013 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 44.00 |
| Antal kuggar [ qty. ] | 13 |
| Antal kuggar (passar in) [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 406.00 |
| O.1 [ mm ] | 135.00 |
| O.2 [ mm ] | 120.00 |
| O.3 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
| Oil sealed | Yes |
Passar i 8 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| KOMATSU | D65 | 6D110 | 0 | 1991– | ||
| KOMATSU | D66 | 6D110 | 0 | – | ||
| KOMATSU | EC170 | 6D110 | 0 | 1984– | ||
| KOMATSU | EC210 | 6D110 | 0 | 1986– | ||
| KOMATSU | EZ105 | 6D110 | 0 | 1986– | ||
| KOMATSU | Various Models | 0 | 1988– | |||
| MERCEDES-BENZ | L 405 D | T2/L Platform/Chassis | OM615.910 | 60 | Diesel | 1972–1980 |
| MERCEDES-BENZ | L 405 D | T2/L Van | OM615.910 | 60 | Diesel | 1972–1980 |
