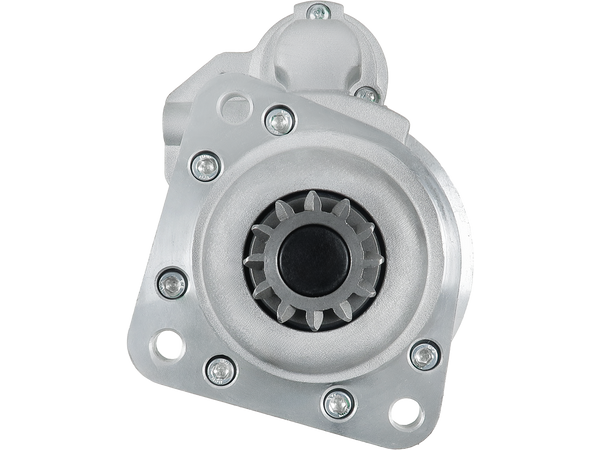

S9409S
Startmotorer
STANDARD LINE
1970 kr
Köp nu
| EAN | 5902129242420 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | AZF4698 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 344.00 |
| O.1 [ mm ] | 127.00 |
| O.2 [ mm ] | 90.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.00 |
| C.2 [ mm ] | 11.00 |
| C.3 [ mm ] | 11.00 |
| Insulated return | Yes |
Passar i 18 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| BOMAG | 11.9 | BC 772 EB-2 | TCD2015 | 0 | – | |
| BOMAG | 11.9 | MPH 122-2 | TCD2015 | 0 | – | |
| BOMAG | 15.9 | MPH 125 | TCD2015 | 0 | – | |
| BOMAG | 15.9 | MPH 600 | TCD16 | 0 | – | |
| BOMAG | 15.9 | MPH 600 | TCD2015 | 0 | – | |
| DEUTZ-FAHR | 11.9 | 7545RTS | TCD2015 | 0 | – | |
| DEUTZ-FAHR | 11.9 | Engine | TCD2015V08 | 0 | – | |
| DEUTZ-FAHR | 11.9 | Engine | TCD2015V06 | 0 | – | |
| DEUTZ-FAHR | 11.9 | Engine | TCD120V6 | 0 | – | |
| DEUTZ-FAHR | 15.9 | Engine | BFM1015M | 0 | – | |
| DEUTZ-FAHR | 15.9 V8 | Engine | BF8M1015 | 394 | diesel | – |
| MATROT | 11.9 | M41H | BF6M1015 | 0 | – | |
| MATROT | 11.9 | M41H | TCD2015 | 0 | – | |
| PRINOTH | 11.9 | RT 400 | TCD2015 | 0 | – | |
| SENNEBOGEN | 11.9 | 870 M | TCD2015 | 0 | – | |
| SENNEBOGEN | 11.9 | 870 R | TCD2015 | 0 | – | |
| WIRTGEN | SF 2600i | TCD12 | 0 | – | ||
| WIRTGEN | 11.9 | RX 4500 | TCD2015 | 0 | – |
