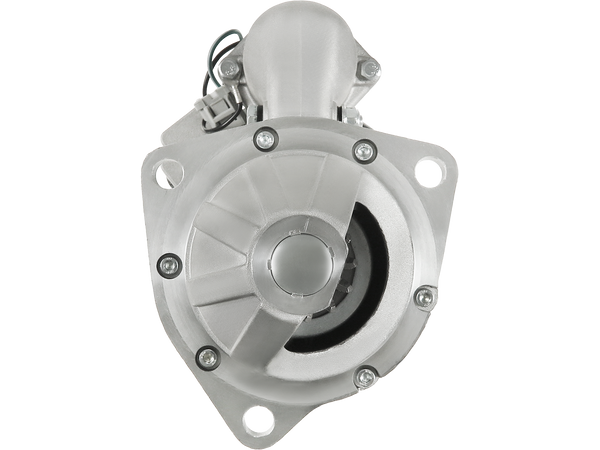

S9161
Startmotorer
STANDARD LINE
1543 kr
Köp nu
| EAN | 5902129003403 |
| Tillverkare | AS-PL |
| Ersätter | NIKKO |
| OE-nummer |
AINDE: CGB-91231, CGB-93160 ANDEL: ANM12473X AS-PL: S9161, UD11090S AUTO MAGNETO: AM-2231E CARGO: 111050, F032111050 CASCO: CST50602AS, CST50602GS DELCO: DRS0253 DIXIE: 244-55201B, 244-55201D, 246-30213D ELECTROLOG: STR8820 KOMATSU: 600-813-3380, 600-813-3390, 600-813-3391, 600-813-3392, 600-813-4110, 600-813-4111, 600-813-4120, 600-813-4121, 600-813-4122, 6008134652 KUHNER: 20934 LAUBER: CQ1151173 LOGISTIK: 335784 NIKKO: 0-23000-1230, 0-23000-1231, 0-23000-1270, 0-23000-2570, 0-23000-2571 PSH: 941.502.133 REAL: 20446206BN, 20446206OE SANDO: 6050602 SIOM: MAV526020 WAI / TRANSPO: 18106N, UNIT BOM 185-197 WILSON: 91-28-4049 WOODAUTO: STR29010 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 100.00 |
| B-storlek [ mm ] | 52.50 |
| Antal kuggar [ qty. ] | 13 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 370.00 |
| O.1 [ mm ] | 136.00 |
| O.2 [ mm ] | 119.00 |
| O.3 [ mm ] | 119.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 5 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| PERKINS | PC200 | 6D105 | 0 | 1986– | ||
| PERKINS | PF5 | 6D105 | 0 | 1991– | ||
| PERKINS | PW100 | 6D95 | 0 | 1988– | ||
| PERKINS | PW150 | 6D95 | 0 | 1988– | ||
| PERKINS | PW200 | 6D105 | 0 | 1991– |
