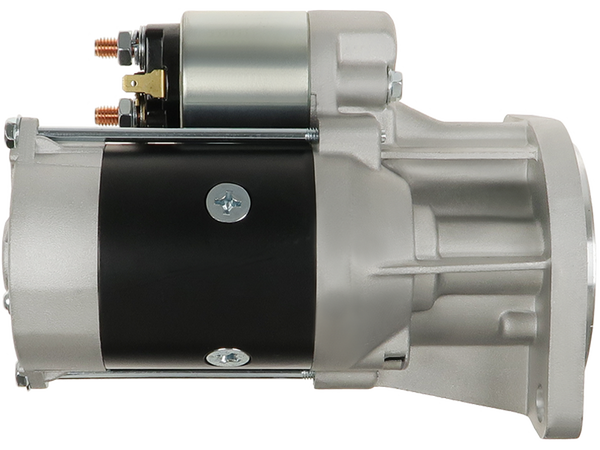

S2043
Startmotorer
STANDARD LINE
1053 kr
Köp nu
| EAN | 5901259470109 |
| Tillverkare | AS-PL |
| Ersätter | HITACHI |
| OE-nummer | S13557A |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 2.30 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 95.00 |
| B-storlek [ mm ] | 10.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 212.00 |
| O.1 [ mm ] | 120.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
Passar i 13 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| ISUZU | 2.5 DiTD | D-MAX I Platform/Chassis (TFR, TFS) | 4JK1-TC | 136 | Diesel | 2006–2012 |
| ISUZU | 2.5 DiTD (TFR86_) | D-MAX I (TFR, TFS) | 4JK1-TC | 136 | Diesel | 2006–2012 |
| ISUZU | 2.5 DiTD (TFR86_, TFR54_) | D-MAX I (TFR, TFS) | 4JA1-TC | 101 | Diesel | 2002–2012 |
| ISUZU | 2.5 DiTD 4x4 (TFS54) | D-MAX I (TFR, TFS) | 4JA1-TC | 101 | Diesel | 2002–2012 |
| ISUZU | 2.5 DiTD 4x4 (TFS86_) | D-MAX I (TFR, TFS) | 4JK1-TC | 136 | Diesel | 2007–2012 |
| ISUZU | 3.0 D 4x4 | D-MAX I Platform/Chassis (TFR, TFS) | 4JJ1-TC | 163 | Diesel | 2007–2012 |
| ISUZU | 3.0 DiTD (TFR85_) | D-MAX I (TFR, TFS) | 4JJ1-TC | 163 | Diesel | 2007–2012 |
| ISUZU | 3.0 DiTD (TFR85_) | D-MAX I (TFR, TFS) | 4JJ1E4C-L | 163 | Diesel | 2007–2012 |
| ISUZU | 3.0 DiTD 4x4 (TFS77H) | D-MAX I (TFR, TFS) | 4JH1-TC | 131 | Diesel | 2002–2012 |
| ISUZU | 3.0 DiTD 4x4 (TFS85_) | D-MAX I (TFR, TFS) | 4JJ1-TC | 163 | Diesel | 2007–2012 |
| ISUZU | 3.0 DiTD 4x4 (TFS85_) | D-MAX I (TFR, TFS) | 4JJ1E4C-L | 163 | Diesel | 2007–2012 |
| OPEL | 2.5 DTI | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
| OPEL | 2.5 DTI 4x4 | CAMPO (TF0, TF1) | 4JA1-TC | 101 | Diesel | 2001–2001 |
