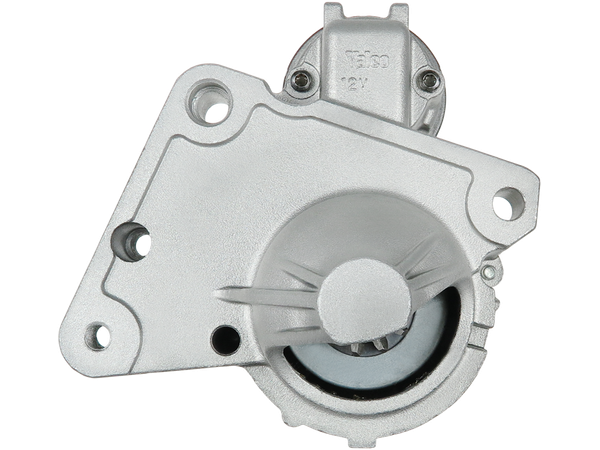

S3029SR
Startmotorer
STANDARD LINE
689 kr
Köp nu
| EAN | 5902129101420 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
APEC: ASM1498 ASHIKA: 003-130028 BOSCH: 0986022790 CARGO: 113933, F032113933 CASCO: CST15215, CST15215AS, CST15215ES, CST15215GS, CST15215OS, CST15215RS DELCO: DRS3976, DS5086, RAS34087 DS: 5802Z8 ELECTROLOG: STR00145, STR00195 ELTA AUTOMOTIVE: EZ0565, EZ0597 GHIBAUDI: SG0580 HC PARTS: CS1329 HELLA: 8EA011610-981, 8EA738198-001 HERTH+BUSS: J5218023 IKA: 6.0155.9 JAPANPARTS: MT130028 JAPKO: 3130028 MAGNETI MARELLI: MRS80117 MITSUBISHI: M000T22471, M000T22471AM, M000T22472, M000T22472AM, M000T22473, M000T22473AM, M000T22473ZZ9, M0T22471, M0T22471AM, M0T22472, M0T22472AM, M0T22473, M0T22473AM, M0T22473ZZ9 NAPA: NPANSM1498 OPEL: 3647959, 95526025 PEUGEOT: 5645100680, 5802AA, 5802EG, 5802Z9, 5802ZB, 9645100680, 9662854080, 9663528880, 966352888001, 9801667780 PSH: 220.524.113, 220.524.113.000, 220.524.113.008, 220.524.113.009, 220.524.113.265, 220.524.113.372, 220.524.113.395, 220.524.113.460, 220.524.113.461, 220.524.113.500, 220.524.113.505, 220.524.113.508, S131.922, S144.510, S149.063 REAL: 20479512 ROLLCO: STM965 SANDO: 6015215, 6015215.1 SIDAT: S12VA0014A2 STARDAX: STX200013, STX200013R, STX200099, STX200099R TOYOTA: 28100-YV020 UNIPOINT: F042S0H117 VALEO: 193767, 726065, D7G3 WAI / TRANSPO: 32737N |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.50 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 13.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11, 12 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 210.00 |
| O.1 [ mm ] | 70.00 |
| O.2 [ mm ] | 108.00 |
| O.3 [ mm ] | 11.00 |
| O.4 [ mm ] | 23.00 |
| C.1 [ mm ] | 12.00 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | M8x1.25 |
| C.4 [ mm ] | M8x1.25 |
Passar i 1166 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUDI | 1.4 | A2 (8Z0) | AUA | 75 | Petrol | 2000–2005 |
| AUDI | 1.4 | A2 (8Z0) | BBY | 75 | Petrol | 2000–2005 |
| AUDI | 1.6 FSI | A2 (8Z0) | BAD | 110 | Petrol | 2002–2005 |
| CITROËN | 1.4 16V HDi | C3 I (FC_, FN_) | 8HY(DV4TED4) | 90 | Diesel | 2002–2008 |
| CITROËN | 1.4 HDi | C1 (PM_, PN_) | 8HT(DV4TD) | 54 | Diesel | 2005–2014 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HZ(DV4TD) | 68 | Diesel | 2003–2009 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HX(DV4TD) | 69 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | C2 (JM_) | 8HX(DV4TD) | 68 | Diesel | 2003–2009 |
| CITROËN | 1.4 HDi | C2 ENTERPRISE (JG_) | 8HX(DV4TD) | 68 | Diesel | 2006–2009 |
| CITROËN | 1.4 HDi | C2 ENTERPRISE (JG_) | 8HZ(DV4TD) | 69 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HX(DV4TD) | 75 | Diesel | 2005–2009 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HX(DV4TD) | 68 | Diesel | 2002–2009 |
| CITROËN | 1.4 HDi | C3 I (FC_, FN_) | 8HZ(DV4TD) | 68 | Diesel | 2002–2009 |
| CITROËN | 1.4 HDi | C3 II Hatchback Van (SC_) | 8HR(DV4C) | 68 | Diesel | 2010–2016 |
| CITROËN | 1.4 HDi | C3 Pluriel (HB_) | 8HZ(DV4TD) | 68 | Diesel | 2004– |
| CITROËN | 1.4 HDi | C3 Pluriel (HB_) | 8HX(DV4TD) | 68 | Diesel | 2004– |
| CITROËN | 1.4 HDi | NEMO Box Body/MPV (AA_) | 8HS(DV4TED) | 68 | Diesel | 2008– |
| CITROËN | 1.4 HDi | NEMO MPV | 8HS(DV4TED) | 68 | Diesel | 2009– |
| CITROËN | 1.4 HDi | XSARA (N1) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | XSARA Break (N2) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi | XSARA Coupe (N0) | 8HX(DV4TD) | 68 | Diesel | 2003–2005 |
| CITROËN | 1.4 HDi 70 (SA8HP4) | DS3 (SA_) | 8HR(DV4C) | 68 | Diesel | 2010–2015 |
| CITROËN | 1.4 HDi 70 (SA8HP4) | DS3 (SA_) | 8HP(DV4C) | 68 | Diesel | 2010–2015 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HZ(DV4TD) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HR(DV4C) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) | C3 II (SC_) | 8HP(DV4C) | 68 | Diesel | 2009–2016 |
| CITROËN | 1.5 BlueHDI 100 | C3 AIRCROSS II Van (2C_, 2R_) | YHY(DV5RD) | 99 | Diesel | 2019– |
| CITROËN | 1.5 BlueHDI 120 | C3 AIRCROSS II Van (2C_, 2R_) | YHX(DV5RC) | 120 | Diesel | 2019– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO (ER_, EC_) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO (ER_, EC_) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C-ELYSEE (DD_) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C-ELYSEE (DD_) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C4 CACTUS | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | C4 CACTUS | YHY(DV5RD) | 99 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | JUMPY III Bus (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | JUMPY III Van (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 | SPACETOURER Bus (V_) | YHR(DV5RUCd) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (2CYHYJ) | C3 AIRCROSS II (2R_, 2C_) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (2CYHYJ) | C3 AIRCROSS II (2R_, 2C_) | YHY(DV5RD) | 99 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (SXYHYP, SXYHTU) | C3 III (SX) | YHT(DV5RCF) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 100 (SXYHYP, SXYHTU) | C3 III (SX) | YHY(DV5RD) | 102 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | C4 CACTUS | YHX(DV5RC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | JUMPY III Bus (V_) | YHV(DV5RUC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | JUMPY III Van (V_) | YHV(DV5RUC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 | SPACETOURER Bus (V_) | YHV(DV5RUC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 120 (2CYHXX) | C3 AIRCROSS II (2R_, 2C_) | YHX(DV5RC) | 120 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 | BERLINGO Box Body/MPV (K9) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 (ACYHZJ, ACYHZR) | C5 AIRCROSS (A_) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 (ECYHZJ, ECYHZR) | BERLINGO (ER_, EC_) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 130 4x4 | BERLINGO Box Body/MPV (K9) | YHZ(DV5RC) | 131 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 75 | BERLINGO (ER_, EC_) | YHW(DV5RE) | 76 | Diesel | 2018– |
| CITROËN | 1.5 BlueHDi 75 | BERLINGO Box Body/MPV (K9) | YHW(DV5RE) | 75 | Diesel | 2019– |
| CITROËN | 1.6 16V Bio-Flex | C4 I (LC_) | NFU(TU5JP4) | 109 | Petrol/Ethanol | 2007–2008 |
| CITROËN | 1.6 16V HDi | C3 I (FC_, FN_) | 9HZ(DV6TED4) | 109 | Diesel | 2005–2009 |
| CITROËN | 1.6 16V HDi | C3 I (FC_, FN_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2009 |
| CITROËN | 1.6 BlueHDI 100 | C3 AIRCROSS II Van (2C_, 2R_) | BHY(DV6FD) | 99 | Diesel | 2019– |
| CITROËN | 1.6 BlueHDi | C3 II Hatchback Van (SC_) | BHW(DV6FE) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi | C4 II Hatchback Van (NC_) | BHZ(DV6FC) | 120 | Diesel | 2015– |
| CITROËN | 1.6 BlueHDi | C4 II Hatchback Van (NC_) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Box Body/MPV (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Box Body/MPV (K9) | BHY(DV6FD) | 99 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO MULTISPACE (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | BERLINGO Platform/Chassis (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 100 | C-ELYSEE (DD_) | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C3 II (SC_) | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C3 III (SX) | BHY(DV6FD) | 99 | Diesel | 2016–2018 |
| CITROËN | 1.6 BlueHDi 100 | C3 PICASSO (SH_) | BHY(DV6FD) | 99 | Diesel | 2015–2017 |
| CITROËN | 1.6 BlueHDi 100 | C4 CACTUS | BHY(DV6FD) | 99 | Diesel | 2014–2017 |
| CITROËN | 1.6 BlueHDi 100 | C4 GRAND PICASSO II (DA_, DE_) | BHY(DV6FD) | 99 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 100 | C4 II (NC_) | BHY(DV6FD) | 99 | Diesel | 2014–2018 |
| CITROËN | 1.6 BlueHDi 100 | C4 PICASSO II | BHY(DV6FD) | 99 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 100 | C4 SPACETOURER (3D_) | BHY(DV6FD) | 99 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 100 | DS3 (SA_) | BHY(DV6FD) | 99 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 100 | DS3 Convertible | BHY(DV6FD) | 99 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 100 | GRAND C4 SPACETOURER (3A_, 3E_) | BHY(DV6FD) | 99 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 100 (2CBHYB) | C3 AIRCROSS II (2R_, 2C_) | BHY(DV6FD) | 99 | Diesel | 2017–2018 |
| CITROËN | 1.6 BlueHDi 100 4x4 | BERLINGO Box Body/MPV (B9) | BHY(DV6FD) | 99 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 115 | C4 II (NC_) | BHX(DV6FC) | 115 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 115 | DS3 Convertible | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 BlueHDi 115 | DS4 (NX_) | BHX(DV6FC) | 115 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 115 | JUMPY III Bus (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 115 | JUMPY III Van (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 115 | SPACETOURER Bus (V_) | BHX(DV6FCU) | 115 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 120 | BERLINGO Box Body/MPV (B9) | BHZ(DV6FC) | 120 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 120 | BERLINGO MULTISPACE (B9) | BHZ(DV6FC) | 120 | Diesel | 2014– |
| CITROËN | 1.6 BlueHDi 120 | C4 GRAND PICASSO II (DA_, DE_) | BHZ(DV6FC) | 120 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 120 | C4 II (NC_) | BHZ(DV6FC) | 120 | Diesel | 2015–2018 |
| CITROËN | 1.6 BlueHDi 120 | C4 PICASSO II | BHZ(DV6FC) | 120 | Diesel | 2014–2016 |
| CITROËN | 1.6 BlueHDi 120 | C4 SPACETOURER (3D_) | BHZ(DV6FC) | 120 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 120 | DS3 (SA_) | BHZ(DV6FC) | 120 | Diesel | 2013–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS3 Convertible | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS4 (NX_) | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | DS5 | BHZ(DV6FC) | 120 | Diesel | 2014–2015 |
| CITROËN | 1.6 BlueHDi 120 | GRAND C4 SPACETOURER (3A_, 3E_) | BHZ(DV6FC) | 120 | Diesel | 2018–2018 |
| CITROËN | 1.6 BlueHDi 120 (2CBHZH) | C3 AIRCROSS II (2R_, 2C_) | BHZ(DV6FC) | 120 | Diesel | 2017–2018 |
| CITROËN | 1.6 BlueHDi 75 | BERLINGO Box Body/MPV (K9) | BHW(DV6FE) | 75 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 75 | C3 II (SC_) | BHW(DV6FE) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 75 | C3 II (SC_) | 9HK(DV6ETEDM) | 75 | Diesel | 2015–2016 |
| CITROËN | 1.6 BlueHDi 75 | C3 III (SX) | BHW(DV6FE) | 75 | Diesel | 2016–2018 |
| CITROËN | 1.6 BlueHDi 90 | JUMPY III Van (V_) | 9HF(DV6DU) | 90 | Diesel | 2018– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Bus (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Platform/Chassis (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Platform/Chassis (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Van (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | JUMPY III Van (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | SPACETOURER Bus (V_) | BHV(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 BlueHDi 95 | SPACETOURER Bus (V_) | BHS(DV6FDU) | 95 | Diesel | 2016– |
| CITROËN | 1.6 HDI 75 (MB9HW) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | DV6B | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MB9HW) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HW(DV6BTED4) | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HW(DV6BTED4) | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | DV6B | 75 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 90 | C3 PICASSO (SH_) | 9HP(DV6DTED) | 92 | Diesel | 2010–2015 |
| CITROËN | 1.6 HDI 90 (MB9HX, MC9HX) | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDI 90 (MF9HX) | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2008 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST Box Body/MPV (M_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDI 92 | C-ELYSEE (DD_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2012– |
| CITROËN | 1.6 HDI 92 | C-ELYSEE (DD_) | 9HP(DV6DTED) | 92 | Diesel | 2012– |
| CITROËN | 1.6 HDi | C2 (JM_) | 9HZ(DV6TED4) | 109 | Diesel | 2005–2009 |
| CITROËN | 1.6 HDi | C3 II (SC_) | 9HJ(DV6DTEDM) | 92 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi | C3 II (SC_) | 9HP(DV6DTED) | 92 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi | C3 PICASSO (SH_) | 9HX(DV6ATED4) | 90 | Diesel | 2009–2015 |
| CITROËN | 1.6 HDi | C3 PICASSO (SH_) | 9HZ(DV6TED4) | 109 | Diesel | 2009–2010 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HV(DV6TED4B) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HX(DV6ATED4) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HV(DV6TED4BU) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 Coupe (LA_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 GRAND PICASSO I (UA_) | 9HY(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 GRAND PICASSO I (UA_) | 9HZ(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HG(DV6CM) | 114 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HV(DV6TED4B) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HX(DV6ATED4) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HG(DV6CM) | 109 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HV(DV6TED4BU) | 90 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I (LC_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HZ(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HG(DV6CM) | 109 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HY(DV6TED4) | 109 | Diesel | 2006–2011 |
| CITROËN | 1.6 HDi | C4 I Saloon | 9HG(DV6CM) | 114 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi | C4 II Hatchback Van (NC_) | 9HP(DV6DTED) | 92 | Diesel | 2010– |
| CITROËN | 1.6 HDi | C4 II Hatchback Van (NC_) | 9HR(DV6C) | 111 | Diesel | 2009– |
| CITROËN | 1.6 HDi | C4 II Saloon (NC_) | 9HD(DV6C) | 115 | Diesel | 2013– |
| CITROËN | 1.6 HDi | C4 II Saloon (NC_) | 9HR(DV6C) | 115 | Diesel | 2013– |
| CITROËN | 1.6 HDi | C4 PICASSO I MPV (UD_) | 9HZ(DV6TED4) | 109 | Diesel | 2007–2013 |
| CITROËN | 1.6 HDi | C4 PICASSO I MPV (UD_) | 9HY(DV6TED4) | 109 | Diesel | 2007–2013 |
| CITROËN | 1.6 HDi | DS5 | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HY(DV6TED4) | 109 | Diesel | 2004–2011 |
| CITROËN | 1.6 HDi | XSARA PICASSO (N68) | 9HX(DV6ATED4) | 90 | Diesel | 2005–2011 |
| CITROËN | 1.6 HDi (RC8HZB) | C5 II (RC_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RC8HZB) | C5 II (RC_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HYB, RE9HZB) | C5 II Estate Van (RE_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HYB, RE9HZB) | C5 II Estate Van (RE_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HZC, RE9HYB) | C5 II Break (RE_) | 9HZ(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi (RE9HZC, RE9HYB) | C5 II Break (RE_) | 9HY(DV6TED4) | 109 | Diesel | 2004–2008 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 GRAND PICASSO II (DA_, DE_) | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 GRAND PICASSO II (DA_, DE_) | 9HC(DV6C) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 PICASSO II | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 115 | C4 PICASSO II | 9HC(DV6C) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi / BlueHDi 75 | BERLINGO Box Body/MPV (B9) | 9HN(DV6ETED) | 75 | Diesel | 2010– |
| CITROËN | 1.6 HDi / BlueHDi 75 | BERLINGO Box Body/MPV (B9) | BHW(DV6FE) | 75 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HZ(DV6TED4) | 109 | Diesel | 2008– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HR(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO Box Body/MPV (B9) | 9HL(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HZ(DV6TED4) | 109 | Diesel | 2008– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HR(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | BERLINGO MULTISPACE (B9) | 9HL(DV6C) | 112 | Diesel | 2010– |
| CITROËN | 1.6 HDi 110 | C3 II (SC_) | 9HR(DV6C) | 112 | Diesel | 2009–2016 |
| CITROËN | 1.6 HDi 110 | C3 PICASSO (SH_) | 9HR(DV6C) | 112 | Diesel | 2010–2013 |
| CITROËN | 1.6 HDi 110 | C4 GRAND PICASSO I (UA_) | 9HR(DV6C) | 112 | Diesel | 2010–2013 |
| CITROËN | 1.6 HDi 110 | C4 II (NC_) | 9HR(DV6C) | 112 | Diesel | 2009– |
| CITROËN | 1.6 HDi 110 | C4 PICASSO I MPV (UD_) | 9HR(DV6C) | 112 | Diesel | 2010–2013 |
| CITROËN | 1.6 HDi 110 | C5 III Break (RW_) | 9HR(DV6C) | 112 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi 110 | C5 III Break (RW_) | 9HL(DV6C) | 112 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi 110 | DS3 (SA_) | 9HR(DV6C) | 112 | Diesel | 2009–2015 |
| CITROËN | 1.6 HDi 110 | DS4 (NX_) | 9HR(DV6C) | 112 | Diesel | 2011–2015 |
| CITROËN | 1.6 HDi 110 | DS5 | 9HR(DV6C) | 112 | Diesel | 2011–2015 |
| CITROËN | 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) | C5 III (RD_) | 9HR(DV6C) | 112 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi 110 (RD9HL0, RD9HR8, RD9HRA) | C5 III (RD_) | 9HL(DV6C) | 112 | Diesel | 2010–2012 |
| CITROËN | 1.6 HDi 110 (RD9HZC) | C5 III (RD_) | 9HZ(DV6TED4) | 109 | Diesel | 2008–2010 |
| CITROËN | 1.6 HDi 110 (RW9HZC) | C5 III Break (RW_) | 9HZ(DV6TED4) | 109 | Diesel | 2008–2010 |
| CITROËN | 1.6 HDi 115 | BERLINGO Box Body/MPV (B9) | 9HL(DV6C) | 114 | Diesel | 2010– |
| CITROËN | 1.6 HDi 115 | BERLINGO MULTISPACE (B9) | 9HR(DV6C) | 114 | Diesel | 2010– |
| CITROËN | 1.6 HDi 115 | C3 II (SC_) | 9HD(DV6C) | 114 | Diesel | 2012–2016 |
| CITROËN | 1.6 HDi 115 | C3 PICASSO (SH_) | 9HD(DV6C) | 114 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi 115 | C4 II (NC_) | 9HD(DV6C) | 114 | Diesel | 2012– |
| CITROËN | 1.6 HDi 115 | C5 III Break (RW_) | 9HL(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | C5 III Break (RW_) | 9HR(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | DS3 (SA_) | BHX(DV6FC) | 115 | Diesel | 2013–2015 |
| CITROËN | 1.6 HDi 115 | DS3 (SA_) | 9HD(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | DS4 (NX_) | 9HD(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | DS5 | 9HD(DV6C) | 114 | Diesel | 2012–2015 |
| CITROËN | 1.6 HDi 115 | GRAND C4 SPACETOURER (3A_, 3E_) | 9HC(DV6C) | 116 | Diesel | 2018– |
| CITROËN | 1.6 HDi 115 (RD9HRA, RD9HLA, RD9HL0) | C5 III (RD_) | 9HL(DV6C) | 114 | Diesel | 2012–2015 |
Visar 200 av 1166 fordon
