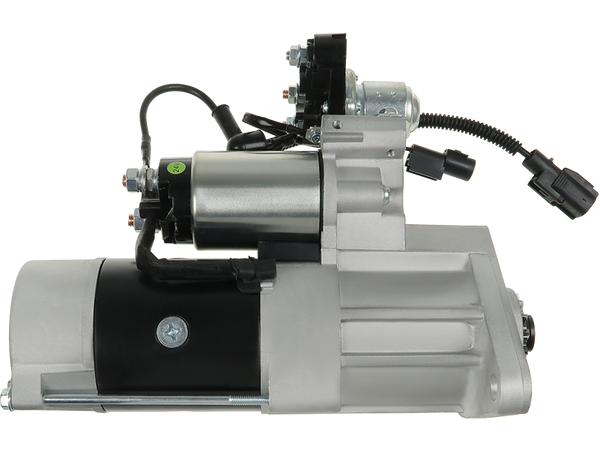

S3105S
Startmotorer
STANDARD LINE
1409 kr
Köp nu
| EAN | 5902129136835 |
| Tillverkare | AS-PL |
| Ersätter | VALEO |
| OE-nummer |
AS-PL: S3105S, UD18232S CASCO: CST32609GS DELCO: DRS1262 ELECTROLOG: STR00397 ERA: 220509 HYUNDAI / KIA: 36100-41100, 36100-45501, 36100-45700 KRAUF: STA4570 PARTS MALL: PXPSA-806 PSH: 151.545.114.000, 151.545.114.360, S130.419 REAL: 20493906OE ROBERT'S: 130-80203 SANDO: 6032609.1 SIOM: MAV346090 VALEO: 1250433, 600256, S000V250433 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 5.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 60.00 |
| B-storlek [ mm ] | 17.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 4 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 287.00 |
| O.1 [ mm ] | 23.50 |
| O.2 [ mm ] | 43.00 |
| O.3 [ mm ] | 144.00 |
| O.4 [ mm ] | 102.50 |
| C.1 [ mm ] | M10x1.5 |
| C.2 [ mm ] | M10x1.5 |
| C.3 [ mm ] | 13.00 |
| C.4 [ mm ] | 13.00 |
Passar i 9 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HYUNDAI | HD 65 | HD LIGHT | D4DD | 145 | 2006– | |
| HYUNDAI | HD 65 | HD LIGHT | D4AF | 100 | 2006– | |
| HYUNDAI | HD 65 | HD LIGHT | D4DB | 130 | 2006– | |
| HYUNDAI | HD 65 | HD LIGHT | D4DC | 120 | 2006– | |
| HYUNDAI | HD 65 | HD LIGHT | D4AL | 115 | 2006– | |
| HYUNDAI | HD 72 | HD LIGHT | D4DC | 120 | 2006– | |
| HYUNDAI | HD 72 | HD LIGHT | D4DC | 155 | 2006– | |
| HYUNDAI | HD 72 | HD LIGHT | D4DB | 130 | 2006– | |
| HYUNDAI | HD 78 | HD LIGHT | D4DA | 155 | 2006– |
