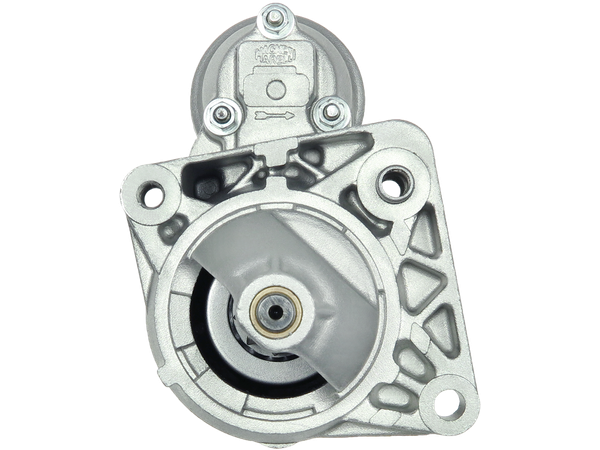

S4067PR
Startmotorer
PREMIUM LINE
738 kr
Köp nu
| EAN | 5902129090786 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
3EFFE: PRSL147, STRL147 A.Z. MEISTERTEILE: AZMT-53-010-1141 ATL AUTOTECHNIK: A19300 BORG & BECK: BST2549 BOSCH: 0986019301, 0986B05008, 0986B05009, F000CD0001, F000CD0900, F000CD0903, F000CD09A0, F000CD09A3, F000CD0A01 CASCO: CST30110AS, CST30110GS, CST30110OS, CST30110RS, CST30119RS DELCO: 8000090, DRS3589 DRI: 318229092 ELECTROLOG: STR9002 ELSTOCK: 25-5113 EUROTEC: 11019300 FARCOM: 105121 FIAT: 46432262, 46465475, 46758241, 46763530, 46765839, 46796553, 46800155, 46843092, 55185057, 55201771, 55209989, 63103028, 71722372, 71722373, 71782359, 71782360, 71785851 FRIESEN: 8080064 HELLA: 8EA012526-771, 8EA737609-001 KRAUF: STE1125 KUHNER: 101125, 254286, 254286R, 256936R LUCAS: LRS03951, LRS3951 MAGNETI MARELLI: 63101003, 63101008, 63101022, 63101023, 943226391010, 944280800640, MRS80064, MSN410, MSR654 POWERMAX: 88212686 PSH: 500.026.083.010, S132.839 QUINTON HAZELL: QRS1106 REAL: 20404011BN, 20404011OE, 20404011RC, 20404011RE, 20404911RC SANDO: 6030110.0, 6030110.1, 6030110.2, 6030110.4, 6030119.2 SIDAT: S12BH0790A2 SIOM: MAV1040, MAV1040A SNRA: FI9069 STARDAX: STX200151 STARTCAR: 885ST11 TMI: ST02076 VALEO: 201074, 432643, 446520, 455553, 458512, 495108, TSC1015 WAI / TRANSPO: 31282N WOODAUTO: STR50685, STR52077, WOOSTR50685, WOOSTR52077 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | 12.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 207.00 |
| O.1 [ mm ] | 67.00 |
| O.2 [ mm ] | 108.50 |
| O.3 [ mm ] | 71.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 9.50 |
| C.3 [ mm ] | M8x1.25 |
Passar i 44 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FIAT | 1.0 | PALIO (178_, 171_, 371_) | 178A1.000 | 61 | Petrol | 1996–2003 |
| FIAT | 1.0 | PALIO (178_, 171_, 371_) | 178A3.011 | 61 | Petrol | 1996–2003 |
| FIAT | 1.1 | PANDA Hatchback Van (141_) | 187A1.000 | 54 | Petrol | 2000–2004 |
| FIAT | 1.1 | UNO (146_, 158_) | 160A3.000 | 56 | Petrol | 1986–2006 |
| FIAT | 1.1 (187AXB, 187AXB1A, 187AXC1A02) | SEICENTO / 600 (187_) | 187A1.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 (187AXB, 187AXB1A, 187AXC1A02) | SEICENTO / 600 (187_) | 176B2.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 (187CXB/C) | SEICENTO / 600 Hatchback Van (287_) | 176B2.000 | 54 | Petrol | 1998–2010 |
| FIAT | 1.1 4x4 | PANDA Hatchback Van (141_) | 187A1.000 | 54 | Petrol | 2000–2004 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 176A8.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178E2.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178C4.066 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B5.000 | 73 | Petrol | 1998– |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178E2.000 | 68 | Petrol | 1999–2000 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 178B7.045 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO (178_, 171_, 371_) | 188A4.000 | 60 | Petrol | 1997–2002 |
| FIAT | 1.2 | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178B5.000 | 73 | Petrol | 1996–2004 |
| FIAT | 1.2 | STRADA Pickup (178_, 278_) | 178B5.000 | 73 | Petrol | 1999–2006 |
| FIAT | 1.2 | STRADA Pickup (178_, 278_) | 188A4.000 | 60 | Petrol | 2003– |
| FIAT | 1.2 (178BXZ1A) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178E2.000 | 68 | Petrol | 1999–2002 |
| FIAT | 1.2 (223AXA1A) | DOBLO MPV (119_, 223_) | 223A5.000 | 65 | Petrol | 2001– |
| FIAT | 1.2 (223ZXA1A) | DOBLO Box Body/MPV (223_) | 223A5.000 | 65 | Petrol | 2001–2004 |
| FIAT | 1.2 16V 80 (188.233, .235, .253, .255, .333, .353, .639,... | PUNTO (188_) | 188A5.000 | 80 | Petrol | 1999–2006 |
| FIAT | 1.2 60 | PUNTO Hatchback Van (188_) | 188A4.000 | 60 | Petrol | 2000–2009 |
| FIAT | 1.2 60 (188.030, .050, .130, .150, .230, .250) | PUNTO (188_) | 188A4.000 | 60 | Petrol | 1999–2010 |
| FIAT | 1.2 Bipower (188BXA1A) | PUNTO (188_) | 188A4.000 | 60 | Petrol/Ethanol | 2001–2003 |
| FIAT | 1.2 Natural Power | PUNTO (188_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2003–2012 |
| FIAT | 1.2 Natural Power (188BXA1A) | PUNTO (188_) | 188A4.000 | 52 | Petrol/Compressed Natural Gas (CNG) | 2004–2006 |
| FIAT | 1.2 Natural Power (188CXA1A) | PUNTO Hatchback Van (188_) | 188A4.000 | 60 | Petrol/Compressed Natural Gas (CNG) | 2003–2010 |
| FIAT | 1.3 | SIENA (178_, 172_, 372_) | 188A5.000 | 80 | Petrol | 2001–2009 |
| FIAT | 1.3 (1788891, 1789491, 1730250) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A5.000 | 80 | Petrol | 2000–2003 |
| FIAT | 1.3 (1788891, 1789491, 1730250) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178D6.011 | 80 | Petrol | 2000–2003 |
| FIAT | 1.3 (178CXG1AAM, 178CXG1AAP, 178CXG1AAT) | SIENA (178_, 172_, 372_) | 178B5.000 | 73 | Petrol | 1998–2002 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 188A5.000 | 80 | Petrol | 2001–2004 |
| FIAT | 1.3 (178DYE1A, 178DYE1AAP, 178DYE1AAT) | PALIO Weekend (178_, 173_, 373_, 374_, 171_) | 178D6.011 | 80 | Petrol | 2001–2004 |
| FIAT | 1000 i.e | PANDA Hatchback Van (141_) | 141C2.000 | 45 | Petrol | 1992–2004 |
| FIAT | 1000 i.e | PANDA Hatchback Van (141_) | 156A2.246 | 45 | Petrol | 1992–2004 |
| FIAT | 1000 i.e. Cat | PANDA (141_) | 141C2.000 | 45 | Petrol | 1987–1998 |
| FIAT | 1000 i.e. Cat | PANDA (141_) | 156A2.246 | 45 | Petrol | 1987–1998 |
| FIAT | 1100 | PANDA (141_) | 156C.046 | 50 | Petrol | 1991–1999 |
| FIAT | 1100 | PANDA (141_) | 187A1.000 | 54 | Petrol | 1995–2003 |
| FIAT | 1100 | PANDA (141_) | 176B2.000 | 54 | Petrol | 1995–2003 |
| FIAT | 1100 4x4 | PANDA (141_) | 187A1.000 | 54 | Petrol | 1995–2004 |
| FIAT | 1100 4x4 | PANDA (141_) | 176B2.000 | 54 | Petrol | 1995–2004 |
| FIAT | 1100 Trekking 4x4 | PANDA (141_) | 156C.046 | 50 | Petrol | 1991–2004 |
