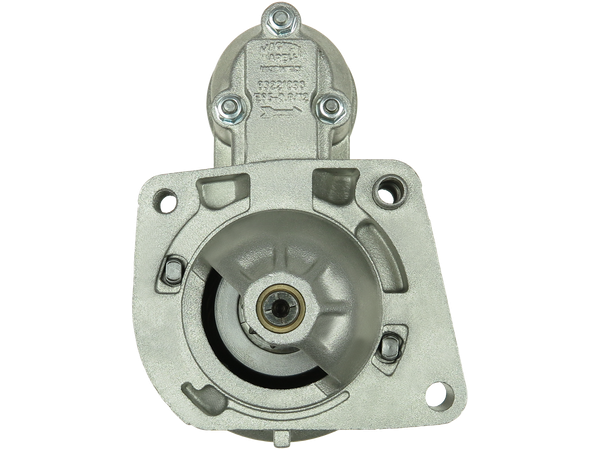

S4068PR
Startmotorer
PREMIUM LINE
541 kr
Köp nu
| EAN | 5902129091172 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETI MARELLI |
| OE-nummer |
ALANKO: 10440370 ATL AUTOTECHNIK: A13940 AUTOELECTRO: AES6114 BOSCH: 0001211536, 0986013940, 0986013941 CEVAM: 3541 DRI: 318024092 EAI: 11143 ELECTROLOG: STR9004 ELMOT: 802004000.0, 819000.0, R80.04, R80K ELSTOCK: 25-1006 ERA: 220360 EUROTEC: 11013940 FARCOM: 103223 FIAT: 46231510, 46402984, 5999906, 66925111, 7612952, 76210400, 76221040, 7667227, 77305430 FRIESEN: 8013940 GHIBAUDI: SG0111 GPARTS: GS432650-A HC PARTS: CS371 HELLA: 8EA012526-891, 8EA726119-001 HENKEL PARTS: 3118566, 3118569, 3118572 LUCAS: LRS00614, LRS614 MAGNETI MARELLI: 063101023010, 63221800, 63221830, 63221890, 943221890, 943221890010, 944280139400, E95-0,8/12, MRS13940, MSN316, MSR316 PSH: 500.015.093.605, 500.015.093.608 SANDO: 6030110.0 SNRA: FI9040 STARTCAR: 143ST11 TMI: ST00313 VALEO: 534053, 534053A, 534053C |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 0.80 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 64.00 |
| B-storlek [ mm ] | 12.00 |
| Antal kuggar [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 196.00 |
| O.1 [ mm ] | 68.50 |
| O.2 [ mm ] | 108.50 |
| O.3 [ mm ] | 71.00 |
| C.1 [ mm ] | M8x1.25 |
| C.2 [ mm ] | 9.50 |
| C.3 [ mm ] | M8x1.25 |
Passar i 64 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| AUTOBIANCHI | 1.0 | Y10 | 156A2.000 | 45 | Petrol | 1985–1995 |
| AUTOBIANCHI | 1.0 | Y10 | 156A.000 | 56 | Petrol | 1985–1995 |
| AUTOBIANCHI | 1.0 4WD | Y10 | 156A3.000 | 50 | Petrol | 1986–1995 |
| AUTOBIANCHI | 1.0 Cat | Y10 | 156A2.246 | 45 | Petrol | 1987–1995 |
| AUTOBIANCHI | 1.0 Turbo | Y10 | 156A1.000 | 85 | Petrol | 1985–1995 |
| AUTOBIANCHI | 1.1 | Y10 | 50 | Petrol | 1990–1992 | |
| AUTOBIANCHI | 1.1 | Y10 | 156C.000 | 57 | Petrol | 1989–1995 |
| AUTOBIANCHI | 1.1 4WD | Y10 | 156C.000 | 57 | Petrol | 1989–1995 |
| AUTOBIANCHI | 1.1 i.e. Cat | Y10 | 156C.046 | 57 | Petrol | 1990–1995 |
| AUTOBIANCHI | 1.3 i.e. GT | Y10 | 156B.000 | 78 | Petrol | 1989–1995 |
| AUTOBIANCHI | 1.3 i.e. GT | Y10 | 146A5.046 | 73 | Petrol | 1989–1995 |
| FIAT | 1.0 | UNO (146_, 158_) | 146C8.000 | 57 | Petrol | 1993–2001 |
| FIAT | 1.0 | UNO (146_, 158_) | 146A7.011 | 57 | Petrol | 1993–2001 |
| FIAT | 1.0 (146E) | UNO (146_, 158_) | 146C8.000 | 56 | Petrol | 1993–2000 |
| FIAT | 1.0 (146E) | UNO (146_, 158_) | 156A2.000 | 42 | Petrol | 1989–1992 |
| FIAT | 1.0 (146E) | UNO (146_, 158_) | 146C4.011 | 56 | Petrol | 1993–2000 |
| FIAT | 1.1 | PANDA Hatchback Van (141_) | 187A1.000 | 54 | Petrol | 2000–2004 |
| FIAT | 1.1 | PANDA Hatchback Van (141_) | 156C.046 | 50 | Petrol | 1991–1995 |
| FIAT | 1.1 | UNO (146_, 158_) | 160A3.000 | 56 | Petrol | 1986–2006 |
| FIAT | 1.1 (160.AA) | TIPO (160_) | 160A3.000 | 56 | Petrol | 1988–1991 |
| FIAT | 1.1 4x4 | PANDA Hatchback Van (141_) | 187A1.000 | 54 | Petrol | 2000–2004 |
| FIAT | 1.5 | ELBA (146_) | 149C1.000 | 67 | Petrol | 1992–1996 |
| FIAT | 1000 | PANDA (141_) | 156A2.100 | 44 | Petrol | 1986–1992 |
| FIAT | 1000 | PANDA (141_) | 156A3.000 | 50 | Petrol | 1985–1992 |
| FIAT | 1000 | PANDA Hatchback Van (141_) | 156A2.100 | 44 | Petrol | 1986–1992 |
| FIAT | 1000 | PANDA Hatchback Van (141_) | 156A3.100 | 44 | Petrol | 1986–1992 |
| FIAT | 1000 4x4 | PANDA (141_) | 156A3.100 | 44 | Petrol | 1986–1989 |
| FIAT | 1000 4x4 | PANDA (141_) | 156A2.246 | 45 | Petrol | 1986–1994 |
| FIAT | 1000 4x4 | PANDA (141_) | 156A2.100 | 44 | Petrol | 1986–1989 |
| FIAT | 1000 4x4 | PANDA (141_) | 156A3.000 | 50 | Petrol | 1986–1992 |
| FIAT | 1000 4x4 | PANDA (141_) | 141C2.000 | 45 | Petrol | 1986–1994 |
| FIAT | 1000 i.e | PANDA Hatchback Van (141_) | 141C2.000 | 45 | Petrol | 1992–2004 |
| FIAT | 1000 i.e | PANDA Hatchback Van (141_) | 156A2.246 | 45 | Petrol | 1992–2004 |
| FIAT | 1000 i.e. Cat | PANDA (141_) | 141C2.000 | 45 | Petrol | 1987–1998 |
| FIAT | 1000 i.e. Cat | PANDA (141_) | 156A2.246 | 45 | Petrol | 1987–1998 |
| FIAT | 1100 | PANDA (141_) | 187A1.000 | 54 | Petrol | 1995–2003 |
| FIAT | 1100 | PANDA (141_) | 176B2.000 | 54 | Petrol | 1995–2003 |
| FIAT | 1100 | PANDA (141_) | 156C.046 | 50 | Petrol | 1991–1999 |
| FIAT | 1100 4x4 | PANDA (141_) | 187A1.000 | 54 | Petrol | 1995–2004 |
| FIAT | 1100 4x4 | PANDA (141_) | 176B2.000 | 54 | Petrol | 1995–2004 |
| FIAT | 1100 Trekking 4x4 | PANDA (141_) | 156C.046 | 50 | Petrol | 1991–2004 |
| FIAT | 45 1.0 (146A.ED) | UNO (146_, 158_) | 156A2.048 | 44 | Petrol | 1986–1993 |
| FIAT | 45 1.0 (146A.ED) | UNO (146_, 158_) | 156A2.100 | 44 | Petrol | 1986–1993 |
| FIAT | 45 i.e. 1.0 (146E, 146A) | UNO (146_, 158_) | 156A2.000 | 45 | Petrol | 1984–1995 |
| FIAT | 45 i.e. 1.0 (146E, 146A) | UNO (146_, 158_) | 156A2.246 | 45 | Petrol | 1984–1995 |
| FIAT | 50 1.1 | UNO (146_, 158_) | 156C.046 | 50 | Petrol | 1990–1993 |
| FIAT | 50 1.1 | UNO (146_, 158_) | 146A4.044 | 50 | Petrol | 1986–1989 |
| FIAT | 50 i.e. 1.1 | UNO (146_, 158_) | 146C3.000 | 49 | Petrol | 1992–1993 |
| FIAT | 60 1.1 | UNO (146_, 158_) | 160A3.000 | 57 | Petrol | 1989–1992 |
| FIAT | 750 | PANDA (141_) | 156A4.000 | 34 | Petrol | 1986–2003 |
| FIAT | 750 | PANDA (141_) | 156A4.048 | 34 | Petrol | 1986–2003 |
| FIAT | 750 | PANDA Hatchback Van (141_) | 141B.000 | 34 | Petrol | 1986–1992 |
| LANCIA | 1.0 Fire (156AA) | Y10 (156_) | 156A2.000 | 45 | Petrol | 1985–1989 |
| LANCIA | 1.0 Fire (156AA) | Y10 (156_) | 156A2.246 | 45 | Petrol | 1985–1989 |
| LANCIA | 1.0 Fire (156B, 156AD) | Y10 (156_) | 156A2.100 | 44 | Petrol | 1985–1991 |
| LANCIA | 1.0 Fire All-wheel Drive (156.AD) | Y10 (156_) | 156A2.100 | 44 | Petrol | 1986–1989 |
| LANCIA | 1.0 Fire Catalytic-Conv (156AE) | Y10 (156_) | 156A2.246 | 45 | Petrol | 1987–1992 |
| LANCIA | 1.1 Fire All-wheel Drive (156AG) | Y10 (156_) | 176B2.000 | 54 | Petrol | 1995–1995 |
| LANCIA | 1.1 i.e Fire (156AC) | Y10 (156_) | 156C.000 | 57 | Petrol | 1989–1992 |
| LANCIA | 1.1 i.e Fire All-wheel Drive (156AC) | Y10 (156_) | 156C.000 | 57 | Petrol | 1989–1992 |
| LANCIA | 1.1 i.e. Fire (156AG) | Y10 (156_) | 156C.046 | 50 | Petrol | 1989–1995 |
| LANCIA | 1.1 i.e. Fire All-wheel Drive (156AG) | Y10 (156_) | 156C.046 | 50 | Petrol | 1992–1995 |
| ROVER | 820 SI (XS) | 800 (XS) | 20HDM16 | 133 | Petrol | 1988–1991 |
| ROVER | 820 SI (XS) | 800 Hatchback (XS) | 20HDM16 | 133 | Petrol | 1988–1991 |
