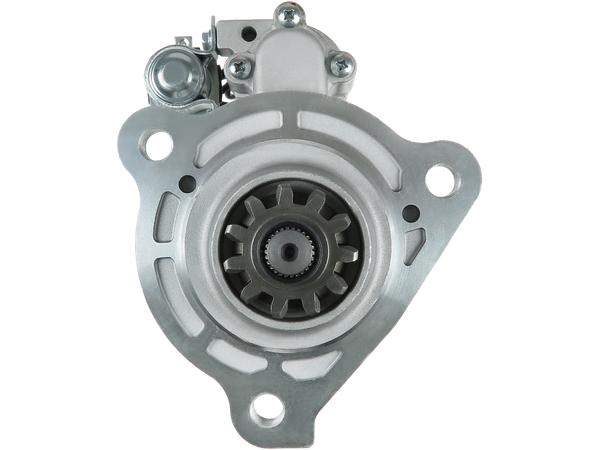

S5030
Startmotorer
STANDARD LINE
2032 kr
Köp nu
| EAN | 5901259423136 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer | M9T80071 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 7.20 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 92.00 |
| B-storlek [ mm ] | 48.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 380.00 |
| O.1 [ mm ] | 126.00 |
| O.2 [ mm ] | 126.00 |
| O.3 [ mm ] | 126.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 81 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| RENAULT TRUCKS | 420.18 | MAGNUM | MIDR06.35.40P/41 | 420 | 1996–1996 | |
| RENAULT TRUCKS | 420.19 | MAGNUM | MIDR06.35.40P/41 | 420 | 1996–1996 | |
| RENAULT TRUCKS | 420.24 | MAGNUM | MIDR06.35.40P/41 | 420 | 1996–1996 | |
| RENAULT TRUCKS | 420.26 | MAGNUM | MIDR06.35.40P/41 | 420 | 1996–1996 | |
| RENAULT TRUCKS | 430.22 | MAGNUM | MIDR06.24.65B/42 | 430 | 1996–2000 | |
| RENAULT TRUCKS | 430.24 | MAGNUM | MIDR06.24.65B/42 | 430 | 1996–2000 | |
| RENAULT TRUCKS | 440.19 | MAGNUM | MIDR06.24.65B/46 | 439 | 2000–2005 | |
| RENAULT TRUCKS | 440.19 | MAGNUM | MIDR06.24.65B/46 | 439 | 1996–2005 | |
| RENAULT TRUCKS | 440.22 | MAGNUM | MIDR06.24.65B/46 | 439 | 2000–2005 | |
| RENAULT TRUCKS | 440.24 | MAGNUM | MIDR06.24.65B/46 | 439 | 2000–2005 | |
| RENAULT TRUCKS | 440.24 | MAGNUM | DXi12 | 439 | 2005–2006 | |
| RENAULT TRUCKS | 440.24 | MAGNUM | MIDR06.24.65B/46 | 439 | 1999–2005 | |
| RENAULT TRUCKS | 440.26 | MAGNUM | MIDR06.24.65B/46 | 439 | 1999–2005 | |
| RENAULT TRUCKS | 470.22 | MAGNUM | MIDR06.24.65C/42 | 470 | 1996–2000 | |
| RENAULT TRUCKS | 470.26 | MAGNUM | MIDR06.24.65C/42 | 470 | 1996–2000 | |
| RENAULT TRUCKS | 480.19 | MAGNUM | MIDR06.24.65C/46 | 480 | 2000–2005 | |
| RENAULT TRUCKS | 480.19 | MAGNUM | MIDR06.24.65C/46 | 480 | 1996–2005 | |
| RENAULT TRUCKS | 480.22 | MAGNUM | MIDR06.24.65C/46 | 480 | 2000–2005 | |
| RENAULT TRUCKS | 480.24 | MAGNUM | MIDR06.24.65C/46 | 480 | 2000–2005 | |
| RENAULT TRUCKS | 480.24 | MAGNUM | MIDR06.24.65C/46 | 480 | 1999–2005 | |
| RENAULT TRUCKS | 480.26 | MAGNUM | MIDR06.24.65C/46 | 480 | 1999–2005 | |
| RENAULT TRUCKS | AE 390.18 | MAGNUM | MIDR06.24.65A/42 | 390 | 1996– | |
| RENAULT TRUCKS | AE 390.18T | MAGNUM | MIDR06.24.65A/42 | 390 | 1996– | |
| RENAULT TRUCKS | AE 390.19 | MAGNUM | MIDR06.24.65A/42 | 390 | 1996– | |
| RENAULT TRUCKS | AE 390.19T | MAGNUM | MIDR06.24.65A/42 | 390 | 1996– | |
| RENAULT TRUCKS | AE 390.26 | MAGNUM | MIDR06.24.65A/42 | 390 | 1996– | |
| RENAULT TRUCKS | AE 420ti.18 | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.18 | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.18T | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.18T | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.19 | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.19 | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.19T | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.19T | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.22T | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.22T | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.24 | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.24 | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.24T | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.24T | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.26 | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.26 | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.26T | MAGNUM | MIDR06.35.40P/41 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 420ti.26T | MAGNUM | MIDR06.35.40J/3 | 415 | 1992–1996 | |
| RENAULT TRUCKS | AE 430.18 | MAGNUM | MIDR06.24.65B/42 | 430 | 1996– | |
| RENAULT TRUCKS | AE 430.18T | MAGNUM | MIDR06.24.65B/42 | 430 | 1996– | |
| RENAULT TRUCKS | AE 430.19 | MAGNUM | MIDR06.24.65B/42 | 430 | 1996– | |
| RENAULT TRUCKS | AE 430.19T | MAGNUM | MIDR06.24.65B/42 | 430 | 1996– | |
| RENAULT TRUCKS | AE 430.26 | MAGNUM | MIDR06.24.65B/42 | 430 | 1996– | |
| RENAULT TRUCKS | AE 430.26T | MAGNUM | MIDR06.24.65B/42 | 430 | 1998– | |
| RENAULT TRUCKS | AE 430.26T | MAGNUM | MIDR06.24.65B/42 | 430 | 1997– | |
| RENAULT TRUCKS | AE 470.18 | MAGNUM | MIDR06.24.65C/42 | 471 | 1996– | |
| RENAULT TRUCKS | AE 470.18T | MAGNUM | MIDR06.24.65C/42 | 471 | 1996– | |
| RENAULT TRUCKS | AE 470.19 | MAGNUM | MIDR06.24.65C/42 | 471 | 1996– | |
| RENAULT TRUCKS | AE 470.19T | MAGNUM | MIDR06.24.65C/42 | 471 | 1996– | |
| RENAULT TRUCKS | AE 470.26 | MAGNUM | MIDR06.24.65C/42 | 471 | 1997– | |
| RENAULT TRUCKS | AE 470.26T | MAGNUM | MIDR06.24.65C/42 | 471 | 1998– | |
| RENAULT TRUCKS | AE 520.18 | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.18T | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.19 | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.19T | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.22T | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.24 | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.24T | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | AE 520.26 | MAGNUM | Mack-EE9-530 | 530 | 1992– | |
| RENAULT TRUCKS | AE 520.26T | MAGNUM | Mack-EE9-530 | 530 | 1992–1996 | |
| RENAULT TRUCKS | DXi 12 440.24 | MAGNUM | DXi12 | 441 | 2004–2006 | |
| RENAULT TRUCKS | E.TECH 400.18 | MAGNUM | MACKE.TECHA/46 | 401 | 2000– | |
| RENAULT TRUCKS | E.TECH 400.18T | MAGNUM | MACKE.TECHA/46 | 401 | 2000– | |
| RENAULT TRUCKS | E.TECH 400.24 | MAGNUM | MACKE.TECHA/46 | 401 | 2000– | |
| RENAULT TRUCKS | E.TECH 400.26 | MAGNUM | MACKE.TECHA/46 | 401 | 2000– | |
| RENAULT TRUCKS | E.TECH 440.18 | MAGNUM | MACKE.TECHB/46 | 441 | 2000– | |
| RENAULT TRUCKS | E.TECH 440.18T | MAGNUM | MACKE.TECHB/46 | 441 | 2000– | |
| RENAULT TRUCKS | E.TECH 440.24 | MAGNUM | MACKE.TECHB/46 | 441 | 2000– | |
| RENAULT TRUCKS | E.TECH 440.26 | MAGNUM | MACKE.TECHB/46 | 441 | 2000– | |
| RENAULT TRUCKS | E.TECH 440.26T | MAGNUM | MACKE.TECHB/46 | 441 | 2000– | |
| RENAULT TRUCKS | E.TECH 480.18 | MAGNUM | MACKE.TECHC/46 | 472-480 | 2000– | |
| RENAULT TRUCKS | E.TECH 480.18T | MAGNUM | MACKE.TECHC/46 | 472-480 | 2000– | |
| RENAULT TRUCKS | E.TECH 480.24 | MAGNUM | MACKE.TECHC/46 | 472-480 | 2000– | |
| RENAULT TRUCKS | E.TECH 480.26 | MAGNUM | MACKE.TECHC/46 | 472-480 | 2000– | |
| RENAULT TRUCKS | E.TECH 480.26T | MAGNUM | MACKE.TECHC/46 | 472-480 | 2000– |
