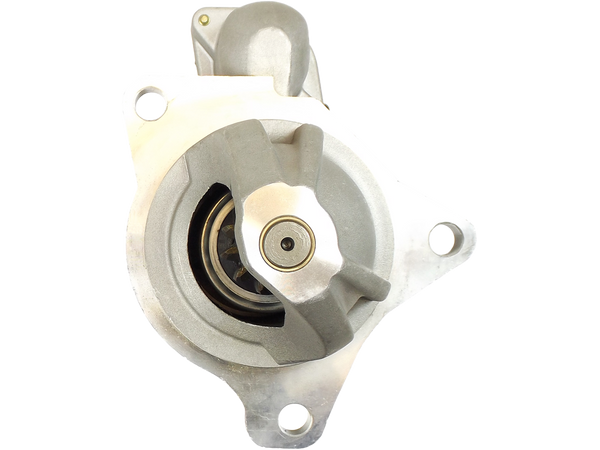

S9125
Startmotorer
STANDARD LINE
2029 kr
Köp nu
| EAN | 5901259487374 |
| Tillverkare | AS-PL |
| Ersätter | SAWAFUJI |
| OE-nummer |
AS-PL: UD02168S CARGO: 114345, F032114345 CASCO: CST37615GS ELECTROLOG: STR9801 HINO: 28100-1644, 28100-1791, 28100-2000, 28100-2210, 281001020, 281001250, 281001490, 281001490A, 281001491, 281001491A, 281001492, 281001493, 281001640, 281001644, 281001645, 281001645A, 281001790, 281001791, 281001942, 281001943, 281001944, 281001945, 281002000, 281002210, 281002781 KRAUF: STW3213 REAL: 20444516OE SANDO: 6037615.1 SAWAFUJI: 03306020110, 03306020113, 03307020221, 0350-702-0226, 0350-702-0270, 0350-702-0271, 0350-702-0272, 0350-702-0273, 0350-702-0274, 0350-702-0339, 03507020020, 03507020021, 03507020022, 03507020023, 03507020024, 03507020025, 03507020180, 03507020220, 03507020221, 03507020222, 03507020223, 03507020224, 03507020226, 03507020270, 03507020271, 03507020272, 03507020273, 03507020274, 03507020290, 03507020294, 03507020330, 03507020339, 03508020224 SIOM: MAV396150 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 122.00 |
| B-storlek [ mm ] | 42.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 384.00 |
| O.1 [ mm ] | 119.00 |
| O.2 [ mm ] | 178.00 |
| O.3 [ mm ] | 165.00 |
| C.1 [ mm ] | 16.00 |
| C.2 [ mm ] | 16.00 |
| C.3 [ mm ] | 16.00 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HINO | Engine | K13C | 0 | – | ||
| HINO | Engine | EK100 | 0 | 1984–1994 | ||
| HINO | Engine | EF550 | 0 | – | ||
| HINO | Engine | F20C | 0 | – | ||
| HINO | Engine | K13D | 0 | – | ||
| HINO | Engine | EL100 | 0 | – |
