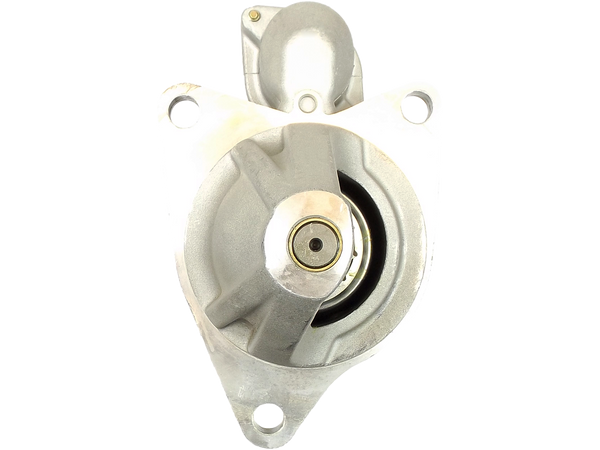

S9132
Startmotorer
STANDARD LINE
2029 kr
Köp nu
| EAN | 5901259488623 |
| Tillverkare | AS-PL |
| Ersätter | SAWAFUJI |
| OE-nummer |
AS-PL: S9132, UD02169S ELECTROLOG: STR9812 HINO: 28100-1990 SAWAFUJI: 03506020114 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 6.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 121.00 |
| B-storlek [ mm ] | 42.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 387.00 |
| O.1 [ mm ] | 178.00 |
| O.2 [ mm ] | 164.00 |
| O.3 [ mm ] | 119.00 |
| C.1 [ mm ] | 15.50 |
| C.2 [ mm ] | 15.50 |
| C.3 [ mm ] | 15.50 |
Passar i 6 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| HINO | Engine | EX300 | 0 | 1988–1991 | ||
| HINO | Engine | EP100 | 0 | 1984–1994 | ||
| HINO | Engine | EK200 | 0 | 1981–1995 | ||
| HINO | Engine | EM100 | 0 | 1984–1994 | ||
| HINO | UH07-5 | EL100 | 0 | 1987–1995 | ||
| HINO | UH09-7 | EM100 | 0 | 1987–1995 |
