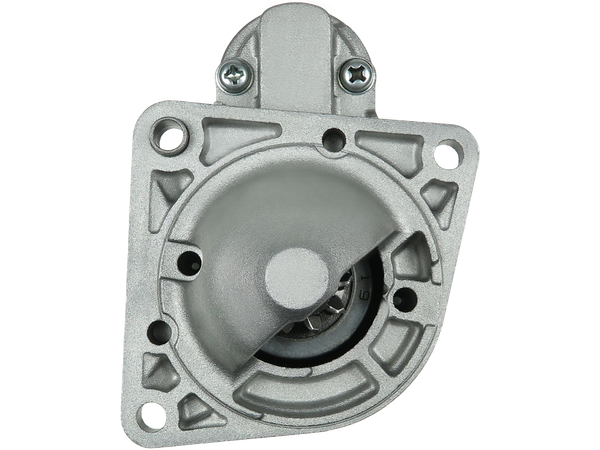

S5136PR
Startmotorer
PREMIUM LINE
689 kr
Köp nu
| EAN | 5902129095002 |
| Tillverkare | AS-PL |
| Ersätter | MITSUBISHI |
| OE-nummer |
3EFFE: PRSS038, STRS038 AINDE: CGB-20099, CGB-53454 APEC: ASM1303 AUTO MAGNETO: AM-2519 CASCO: CST35187AS, CST35187GS CEVAM: 3144 DELCO: DRS0099 EAI: 12079 ELECTROLOG: STR5319 ELSTOCK: 25-3454 ELTA AUTOMOTIVE: EZ0405 ERA: 220643 FIAT: 60813458, 71792597, 71794530 GHIBAUDI: SG0278 HERTH+BUSS: 42001071 KRAUF: STB1264 KUHNER: 254091, 254091M LOGISTIK: 336366 LUCAS: LES0310, LRS02283, LRS2283 MEAT & DORIA: 5035073 MITSUBISHI: M001T30071, M001T30072, M001T30073, M001T30073AM, M001T30073ZZ9, M1T30071, M1T30072, M1T30073, M1T30073AM, M1T30073ZZ9 NAPA: NPANSM1303 OPEL: 1202282, 1202488, 55353857, 55358857, 55585237, 6202074, 95520320 POWERMAX: 88212197 PSH: 500.550.103.130, 500.550.103.138, 500.550.103.265, 500.550.103.370, S132.983, S144.581 REAL: 20437781BN, 20437781OE ROLLCO: STM572 SANDO: 6035187.0, 6035187.1 SIDAT: S12MH0822A2 SIOM: MAV371870 STARDAX: STX200011, STX200011R WAI / TRANSPO: 33283N WOODAUTO: MITM1T30072, MITM1T30073, STR71102 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.90 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 82.00 |
| B-storlek [ mm ] | 8.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal kuggar (passar in) [ qty. ] | 9.10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 221.00 |
| O.1 [ mm ] | 116.00 |
| O.2 [ mm ] | 83.00 |
| O.3 [ mm ] | 83.00 |
| C.1 [ mm ] | 9.00 |
| C.2 [ mm ] | 9.00 |
| C.3 [ mm ] | 9.00 |
Passar i 118 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CADILLAC | 1.9 D | BLS | Z19DTH | 150 | Diesel | 2006– |
| CADILLAC | 1.9 D | BLS | Z19DTR | 180 | Diesel | 2007– |
| CADILLAC | 1.9 D | BLS Wagon | Z19DTR | 180 | Diesel | 2007– |
| CADILLAC | 1.9 D | BLS Wagon | Z19DTH | 150 | Diesel | 2007– |
| OPEL | 1.9 CDTI (F35) | VECTRA C Estate (Z02) | Z19DT | 120 | Diesel | 2004–2009 |
| OPEL | 1.9 CDTI (F35) | VECTRA C Estate (Z02) | Z19DTH | 150 | Diesel | 2004–2008 |
| OPEL | 1.9 CDTI (F35) | VECTRA C Estate (Z02) | Z19DTL | 100 | Diesel | 2005–2008 |
| OPEL | 1.9 CDTI (F48) | SIGNUM Hatchback (Z03) | Z19DTH | 150 | Diesel | 2004–2008 |
| OPEL | 1.9 CDTI (F48) | SIGNUM Hatchback (Z03) | Z19DTL | 100 | Diesel | 2005–2008 |
| OPEL | 1.9 CDTI (F48) | SIGNUM Hatchback (Z03) | Z19DT | 120 | Diesel | 2004–2008 |
| OPEL | 1.9 CDTI (F68) | VECTRA C GTS (Z02) | Z19DTL | 100 | Diesel | 2005–2008 |
| OPEL | 1.9 CDTI (F68) | VECTRA C GTS (Z02) | Z19DTH | 150 | Diesel | 2004–2008 |
| OPEL | 1.9 CDTI (F68) | VECTRA C GTS (Z02) | Z19DT | 120 | Diesel | 2004–2009 |
| OPEL | 1.9 CDTI (F69) | VECTRA C (Z02) | Z19DTL | 100 | Diesel | 2005–2008 |
| OPEL | 1.9 CDTI (F69) | VECTRA C (Z02) | Z19DTH | 150 | Diesel | 2004–2008 |
| OPEL | 1.9 CDTI (F69) | VECTRA C (Z02) | Z19DT | 120 | Diesel | 2004–2009 |
| OPEL | 1.9 CDTI (L08) | ASTRA H GTC (A04) | Z19DT | 120 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI (L08) | ASTRA H GTC (A04) | Z19DTL | 101 | Diesel | 2006–2010 |
| OPEL | 1.9 CDTI (L35) | ASTRA H Estate (A04) | Z19DT | 120 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI (L35) | ASTRA H Estate (A04) | Z19DTH | 150 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI (L35) | ASTRA H Estate (A04) | Z19DTL | 100 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI (L48) | ASTRA H (A04) | Z19DT | 120 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI (L48) | ASTRA H (A04) | Z19DTH | 150 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI (L48) | ASTRA H (A04) | Z19DTL | 100 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI (L70) | ASTRA H Estate Van (L70) | Z19DT | 120 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI (L70) | ASTRA H Estate Van (L70) | Z19DTL | 101 | Diesel | 2005–2012 |
| OPEL | 1.9 CDTI (L70) | ASTRA H Estate Van (L70) | Z19DTH | 150 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI (M75) | ZAFIRA / ZAFIRA FAMILY B (A05) | Z19DTH | 150 | Diesel | 2005–2015 |
| OPEL | 1.9 CDTI (M75) | ZAFIRA / ZAFIRA FAMILY B (A05) | Z19DT | 120 | Diesel | 2005–2015 |
| OPEL | 1.9 CDTI (M75) | ZAFIRA / ZAFIRA FAMILY B (A05) | Z19DTL | 100 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTI 16V (L35) | ASTRA H Estate (A04) | Z19DTJ | 120 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI 16V (L48) | ASTRA H (A04) | Z19DTJ | 120 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI 16V (L70) | ASTRA H Estate Van (L70) | Z19DTJ | 120 | Diesel | 2004–2010 |
| OPEL | 1.9 CDTI VAN (M75) | ZAFIRA B Box Body/MPV (A05) | Z19DTH | 150 | Diesel | 2005–2015 |
| OPEL | 1.9 CDTI VAN (M75) | ZAFIRA B Box Body/MPV (A05) | Z19DT | 120 | Diesel | 2005–2015 |
| OPEL | 1.9 CDTi (L08) | ASTRA H GTC (A04) | Z19DTH | 150 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTi (L67) | ASTRA H TwinTop (A04) | Z19DTH | 150 | Diesel | 2005–2010 |
| OPEL | 1.9 CDTi 16V (L08) | ASTRA H GTC (A04) | Z19DTJ | 120 | Diesel | 2005–2010 |
| OPEL | 2.0 Biturbo CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTR | 195 | Diesel | 2012–2015 |
| OPEL | 2.0 Biturbo CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTR | 190 | Diesel | 2008–2017 |
| OPEL | 2.0 Biturbo CDTI (68) | INSIGNIA A (G09) | A20DTR | 195 | Diesel | 2012–2017 |
| OPEL | 2.0 Biturbo CDTI (68) | INSIGNIA A (G09) | A20DTR | 190 | Diesel | 2008–2011 |
| OPEL | 2.0 Biturbo CDTI (69) | INSIGNIA A Saloon (G09) | A20DTR | 195 | Diesel | 2012–2017 |
| OPEL | 2.0 Biturbo CDTI (69) | INSIGNIA A Saloon (G09) | A20DTR | 190 | Diesel | 2008–2011 |
| OPEL | 2.0 Biturbo CDTI 4x4 (35) | INSIGNIA A Sports Tourer (G09) | A20DTR | 190 | Diesel | 2008–2017 |
| OPEL | 2.0 Biturbo CDTI 4x4 (35) | INSIGNIA A Sports Tourer (G09) | A20DTR | 195 | Diesel | 2012–2015 |
| OPEL | 2.0 Biturbo CDTI 4x4 (68) | INSIGNIA A (G09) | A20DTR | 190 | Diesel | 2009–2011 |
| OPEL | 2.0 Biturbo CDTI 4x4 (68) | INSIGNIA A (G09) | A20DTR | 195 | Diesel | 2012–2017 |
| OPEL | 2.0 Biturbo CDTI 4x4 (69) | INSIGNIA A Saloon (G09) | A20DTR | 190 | Diesel | 2008–2011 |
| OPEL | 2.0 Biturbo CDTI 4x4 (69) | INSIGNIA A Saloon (G09) | A20DTR | 195 | Diesel | 2012–2017 |
| OPEL | 2.0 CDTI (08) | ASTRA J GTC | A20DTH | 165 | Diesel | 2012–2015 |
| OPEL | 2.0 CDTI (08) | ASTRA J GTC | A20DTH | 131 | Diesel | 2012–2015 |
| OPEL | 2.0 CDTI (35) | ASTRA J Sports Tourer (P10) | A20DTH | 160 | Diesel | 2010–2015 |
| OPEL | 2.0 CDTI (35) | ASTRA J Sports Tourer (P10) | A20DTH | 165 | Diesel | 2011–2015 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTJ | 131 | Diesel | 2008–2015 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTC | 110 | Diesel | 2008–2013 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DT | 131 | Diesel | 2008–2015 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTH | 163 | Diesel | 2013–2015 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTH | 160 | Diesel | 2008–2015 |
| OPEL | 2.0 CDTI (35) | INSIGNIA A Sports Tourer (G09) | A20DTL | 110 | Diesel | 2008–2013 |
| OPEL | 2.0 CDTI (67) | CASCADA (W13) | A20DTH | 165 | Diesel | 2013–2015 |
| OPEL | 2.0 CDTI (68) | ASTRA J (P10) | A20DTH | 165 | Diesel | 2011–2015 |
| OPEL | 2.0 CDTI (68) | ASTRA J (P10) | A20DTH | 160 | Diesel | 2009–2015 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTH | 160 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTC | 110 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DT | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTH | 163 | Diesel | 2013–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTJ | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTL | 110 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (68) | INSIGNIA A (G09) | A20DTH | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DTL | 110 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DTJ | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DTC | 110 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DT | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DTH | 163 | Diesel | 2013–2017 |
| OPEL | 2.0 CDTI (69) | INSIGNIA A Saloon (G09) | A20DTH | 160 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTI 4x4 (35) | INSIGNIA A Sports Tourer (G09) | A20DTH | 160 | Diesel | 2010–2015 |
| OPEL | 2.0 CDTI 4x4 (35) | INSIGNIA A Sports Tourer (G09) | A20DTH | 163 | Diesel | 2013–2015 |
| OPEL | 2.0 CDTI 4x4 (68) | INSIGNIA A (G09) | A20DTH | 160 | Diesel | 2010–2017 |
| OPEL | 2.0 CDTI 4x4 (68) | INSIGNIA A (G09) | A20DTH | 163 | Diesel | 2013–2017 |
| OPEL | 2.0 CDTI 4x4 (69) | INSIGNIA A Saloon (G09) | A20DTH | 163 | Diesel | 2013–2017 |
| OPEL | 2.0 CDTI 4x4 (69) | INSIGNIA A Saloon (G09) | A20DTH | 160 | Diesel | 2010–2017 |
| OPEL | 2.0 CDTi (35) | ASTRA J Estate Van (P10) | A20DTH | 165 | Diesel | 2012–2015 |
| OPEL | 2.0 CDTi (47) | INSIGNIA A Country Tourer (G09) | A20DT | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTi (47) | INSIGNIA A Country Tourer (G09) | A20DTH | 163 | Diesel | 2014–2017 |
| OPEL | 2.0 CDTi (47) | INSIGNIA A Country Tourer (G09) | A20DTJ | 131 | Diesel | 2008–2017 |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | B20DTJ | 130 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | Y20DTJ | 130 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | A20DT | 130 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | D20DTJ | 130 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | Z20DTJ | 130 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C (P12) | A20DTH | 165 | Diesel | 2011– |
| OPEL | 2.0 CDTi (75) | ZAFIRA TOURER C VAN (P12) | A20DTH | 165 | Diesel | 2013– |
| OPEL | 2.0 CDTi 4x4 (47) | INSIGNIA A Country Tourer (G09) | A20DTR | 194 | Diesel | 2013–2017 |
| OPEL | 2.0 CDTi 4x4 (47) | INSIGNIA A Country Tourer (G09) | A20DTH | 163 | Diesel | 2013–2017 |
| SAAB | 1.9 TTiD | 9-3 (YS3F, E79, D79, D75) | Z19DTR | 180 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 (YS3F, E79, D79, D75) | A19DTR | 180 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 (YS3F, E79, D79, D75) | A19DTR | 130 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 (YS3F, E79, D79, D75) | A19DTR | 160 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Convertible (YS3F) | Z19DTR | 180 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Convertible (YS3F) | A19DTR | 160 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Convertible (YS3F) | A19DTR | 180 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Estate (E50) | A19DTR | 160 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Estate (E50) | A19DTR | 130 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3 Estate (E50) | Z19DTR | 180 | Diesel | 2007–2015 |
| SAAB | 1.9 TTiD | 9-3X (YS3) | Z19DTR | 180 | Diesel | 2009–2012 |
| SAAB | 1.9 TTiD AWD | 9-3X (YS3) | Z19DTR | 180 | Diesel | 2009–2012 |
| SAAB | 1.9 TTiD AWD | 9-3X (YS3) | A19DTR | 180 | Diesel | 2009–2012 |
| SAAB | 1.9 TiD | 9-3 (YS3F, E79, D79, D75) | Z19DT | 120 | Diesel | 2004–2015 |
| SAAB | 1.9 TiD | 9-3 (YS3F, E79, D79, D75) | Z19DTH | 150 | Diesel | 2004–2015 |
| SAAB | 1.9 TiD | 9-3 Convertible (YS3F) | Z19DTH | 150 | Diesel | 2006–2015 |
| SAAB | 1.9 TiD | 9-3 Convertible (YS3F) | Z19DT | 120 | Diesel | 2004–2015 |
| SAAB | 1.9 TiD | 9-3 Estate (E50) | Z19DTH | 150 | Diesel | 2005–2015 |
| SAAB | 1.9 TiD | 9-3 Estate (E50) | Z19DT | 120 | Diesel | 2005–2015 |
| SAAB | 1.9 TiD | 9-5 (YS3E) | Z19DTH | 150 | Diesel | 2006–2009 |
| SAAB | 1.9 TiD | 9-5 Estate (YS3E) | Z19DTR | 175 | Diesel | 2007–2009 |
| SAAB | 1.9 TiD | 9-5 Estate (YS3E) | Z19DTH | 150 | Diesel | 2006–2009 |
| SAAB | 2.0 TiD | 9-5 (YS3G) | A20DTH | 160 | Diesel | 2010–2012 |
