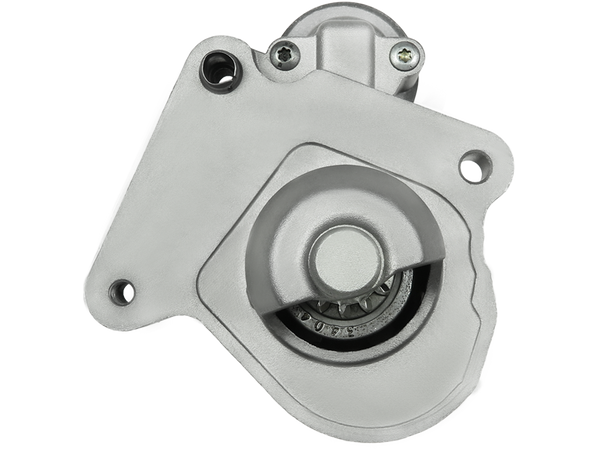

S9020PR
Startmotorer
PREMIUM LINE
714 kr
Köp nu
| EAN | 5902129090489 |
| Tillverkare | AS-PL |
| Ersätter | FORD |
| OE-nummer |
3EFFE: PRSL129, STRL129 AINDE: AI-80033 ANDEL: ANM16177X APEC: ASM1521 ASHIKA: 003-130012 AUTO MAGNETO: AM-2637, AM-2637E AUTOELECTRO: AEU1275, NEU1275 BOSCH: 0986022121 CARGO: 113905, 116159, F032113905, F032116159 CASCO: CST14103AS, CST14103GS CEVAM: 3121 DELCO: DRS3957, DRS3957N, DS5067, DS5067N EAI: 11950 ELECTROLOG: STR8972, STR8999 ELSTOCK: 25-3273 ELTA AUTOMOTIVE: EZ0533 ERA: 220366 FORD: 1140757, 1144505, 1350459, 1366195, 1368974, 1483817, 1502880, 1670812, 1680223, 1734633, 1762873, 1858879, 2S6U-11000-EA, 2S6U-11000-EB, 2S6U-11000-EC, 2S6U-11000-ED, 2S6U-11000-EE, 6N29-11000-BA, 8V21-11000-AB, 8V21-11000-AC, 8V21-11000-AD, 8V21-11000-AE, 8V2111000AB, 8V2111000AC, 8V2111000AD, 8V2111000AE, RM2S6U-11000-EE GHIBAUDI: SG0384 GPARTS: GS001021-A, GS001021VI-R, SS001021-A, SS001021VI-R HC PARTS: CS1275 HELLA: 8EA011610-211, 8EA738080-001 HERTH+BUSS: 42001021 JAPANPARTS: MT130012 JAPKO: 3130012 KRAUF: STF1275 KUHNER: 101275, 101275M, 101275R, 101275V LOGISTIK: 331400 LUCAS: LRS01717, LRS1717 MAGNETI MARELLI: 063280021010, 63280021, 943212751010, 944280801480, MRS80148, MSN8021 MAZDA: Y401-18-400, Y401-18-400A, Y401-18-400B, Y40118400, Y40118400A, Y40118400B, Y405-18-400, Y405-18-400A, Y405-18-400B, Y405-18-400C, Y40518400, Y40518400A, Y40518400B MEAT & DORIA: 5014038 NAPA: NPANSM1521 POWERMAX: 88212903 PSH: 590.538.123.020, 590.538.123.028, 590.538.123.230, 590.538.123.235, S134.442, S144.521 REAL: 20450301BN, 20450301OE RNL: RNL2S6UEE ROLLCO: STM768 SANDO: 6014103.0, 6014103.1 SIDAT: S12VS0013, S12VS0013A2 SIOM: MAV161030 SOVEREIGN: SS424 STARDAX: STX200081, STX200081R UNIPOINT: F042S0H066 VALEO: 446503, 458640 VISTEON: 20-100-01021 WAI / TRANSPO: 32516N, 32516R WOODAUTO: STR61805, UNISTRH066 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.40 |
| Startmotors rotation | CW |
| B-storlek [ mm ] | 14.00 |
| Antal kuggar [ qty. ] | 12 |
| Antal kuggar (passar in) [ qty. ] | 10, 12 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 2 |
| L.1 [ mm ] | 209.00 |
| O.1 [ mm ] | 116.00 |
| O.2 [ mm ] | 76.00 |
| O.3 [ mm ] | 84.00 |
| C.1 [ mm ] | 9.50 |
| C.2 [ mm ] | M8x1.25 |
| C.3 [ mm ] | M8x1.25 |
Passar i 127 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| FORD | 1.4 TDCi | FIESTA V (JH_, JD_) | F6JA | 68 | Diesel | 2001–2008 |
| FORD | 1.4 TDCi | FIESTA V (JH_, JD_) | F6JB | 68 | Diesel | 2001–2008 |
| FORD | 1.4 TDCi | FIESTA V Van | F6JA | 68 | Diesel | 2003–2010 |
| FORD | 1.4 TDCi | FIESTA V Van | F6JB | 68 | Diesel | 2003–2010 |
| FORD | 1.4 TDCi | FIESTA VI (CB1, CCN) | F6JD | 70 | Diesel | 2010–2012 |
| FORD | 1.4 TDCi | FIESTA VI (CB1, CCN) | F6JB | 68 | Diesel | 2008–2012 |
| FORD | 1.4 TDCi | FIESTA VI (CB1, CCN) | KVJA | 70 | Diesel | 2010–2012 |
| FORD | 1.4 TDCi | FIESTA VI (CB1, CCN) | F6JD | 68 | Diesel | 2008–2012 |
| FORD | 1.4 TDCi | FIESTA VI Van | F6JD | 68 | Diesel | 2009–2017 |
| FORD | 1.4 TDCi | FIESTA VI Van | F6JD | 70 | Diesel | 2010–2017 |
| FORD | 1.4 TDCi | FIESTA VI Van | F6JB | 68 | Diesel | 2009–2017 |
| FORD | 1.4 TDCi | FIESTA VI Van | KVJA | 70 | Diesel | 2010–2017 |
| FORD | 1.4 TDCi | FUSION (JU_) | F6JB | 68 | Diesel | 2002–2012 |
| FORD | 1.4 TDCi | FUSION (JU_) | F6JA | 68 | Diesel | 2002–2012 |
| FORD | 1.5 EcoBlue TDCi | ECOSPORT | XVJD | 95 | Diesel | 2015– |
| FORD | 1.5 TDCi | B-MAX (JK) | UGJG | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX (JK) | XUJB | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX (JK) | XVJC | 95 | Diesel | 2015– |
| FORD | 1.5 TDCi | B-MAX (JK) | UGJC | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX (JK) | XUJA | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX (JK) | XVJA | 95 | Diesel | 2015– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | UGJG | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | XUJB | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | UGJC | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | XVJC | 95 | Diesel | 2015– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | XUJA | 75 | Diesel | 2012– |
| FORD | 1.5 TDCi | B-MAX Van (JK) | XVJA | 95 | Diesel | 2015– |
| FORD | 1.5 TDCi | ECOSPORT | UGJM | 100 | Diesel | 2015– |
| FORD | 1.5 TDCi | ECOSPORT | UGJE | 90 | Diesel | 2013– |
| FORD | 1.5 TDCi | ECOSPORT | XUJH | 100 | Diesel | 2015– |
| FORD | 1.5 TDCi | FIESTA VI (CB1, CCN) | XVJC | 95 | Diesel | 2015–2017 |
| FORD | 1.5 TDCi | FIESTA VI (CB1, CCN) | XUJB | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VI (CB1, CCN) | XUJA | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VI (CB1, CCN) | XVJB | 95 | Diesel | 2015–2017 |
| FORD | 1.5 TDCi | FIESTA VI (CB1, CCN) | UGJC | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VI Van | XUJB | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VI Van | XVJC | 95 | Diesel | 2015–2017 |
| FORD | 1.5 TDCi | FIESTA VI Van | XUJA | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VI Van | XVJB | 95 | Diesel | 2015–2017 |
| FORD | 1.5 TDCi | FIESTA VI Van | UGJC | 75 | Diesel | 2012–2017 |
| FORD | 1.5 TDCi | FIESTA VII (HJ, HF) | XWJB | 120 | Diesel | 2017– |
| FORD | 1.5 TDCi | FIESTA VII (HJ, HF) | XWJA | 120 | Diesel | 2017– |
| FORD | 1.5 TDCi | FIESTA VII (HJ, HF) | XWJC | 120 | Diesel | 2017– |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XVCC | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XUCF | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | UGCA | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XWCA | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XUCC | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XVCB | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XUCE | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XVCD | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XUCG | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | UGCB | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XWCB | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XUCD | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TOURNEO COURIER B460 MPV | XVCA | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XVCB | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XUCE | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | UGCB | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XVCD | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XVCA | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XUCG | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 Box Body/MPV | XWCA | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XUCC | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XVCB | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XUCE | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XVCD | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XUCG | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XVCA | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | UGCB | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XWCB | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XUCD | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XVCC | 95 | Diesel | 2015–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XUCF | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | UGCA | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi | TRANSIT COURIER B460 MPV | XWCA | 75 | Diesel | 2014–2023 |
| FORD | 1.5 TDCi Active | FIESTA VII (HJ, HF) | XWJA | 120 | Diesel | 2017– |
| FORD | 1.5 TDCi Active | FIESTA VII (HJ, HF) | XWJC | 120 | Diesel | 2017– |
| FORD | 1.5 TDCi Active | FIESTA VII (HJ, HF) | XWJB | 120 | Diesel | 2017– |
| FORD | 1.6 TDCi | B-MAX (JK) | T3JB | 95 | Diesel | 2012– |
| FORD | 1.6 TDCi | B-MAX Van (JK) | T3JB | 95 | Diesel | 2012– |
| FORD | 1.6 TDCi | C-MAX II (DXA/CB7, DXA/CEU) | T1DB | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | C-MAX II (DXA/CB7, DXA/CEU) | T1DA | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | C-MAX II Van | T1DB | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | C-MAX II Van | T1DA | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | FIESTA V (JH_, JD_) | HHJB | 90 | Diesel | 2004–2008 |
| FORD | 1.6 TDCi | FIESTA V (JH_, JD_) | HHJA | 90 | Diesel | 2004–2008 |
| FORD | 1.6 TDCi | FIESTA V Van | HHJA | 90 | Diesel | 2007–2009 |
| FORD | 1.6 TDCi | FIESTA V Van | HHJD | 90 | Diesel | 2007–2009 |
| FORD | 1.6 TDCi | FIESTA V Van | HHJB | 90 | Diesel | 2007–2009 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | UBJA | 75 | Diesel | 2008–2012 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | HHJD | 90 | Diesel | 2008–2012 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | TZJA | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | HHJC | 90 | Diesel | 2008–2012 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | HHJF | 75 | Diesel | 2008–2012 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | T3JA | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | HHJE | 90 | Diesel | 2008–2012 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | TZJB | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI (CB1, CCN) | 75 | Diesel | 2008–2012 | |
| FORD | 1.6 TDCi | FIESTA VI Van | TZJA | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI Van | HHJD | 90 | Diesel | 2009–2017 |
| FORD | 1.6 TDCi | FIESTA VI Van | T3JA | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI Van | HHJC | 90 | Diesel | 2009–2017 |
| FORD | 1.6 TDCi | FIESTA VI Van | TZJB | 95 | Diesel | 2010–2015 |
| FORD | 1.6 TDCi | FIESTA VI Van | HHJE | 90 | Diesel | 2009–2017 |
| FORD | 1.6 TDCi | FUSION (JU_) | HHJB | 90 | Diesel | 2004–2012 |
| FORD | 1.6 TDCi | FUSION (JU_) | HHJA | 90 | Diesel | 2004–2012 |
| FORD | 1.6 TDCi | GRAND C-MAX (DXA/CB7, DXA/CEU) | T1DA | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | GRAND C-MAX (DXA/CB7, DXA/CEU) | T1DB | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | GRAND C-MAX Van | T1DA | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | GRAND C-MAX Van | T1DB | 115 | Diesel | 2010–2019 |
| FORD | 1.6 TDCi | TOURNEO COURIER B460 MPV | T3CB | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TOURNEO COURIER B460 MPV | T3CA | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TOURNEO COURIER B460 MPV | T3CC | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 Box Body/MPV | T3CA | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 Box Body/MPV | T3CC | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 Box Body/MPV | T3CB | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 MPV | T3CA | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 MPV | T3CC | 95 | Diesel | 2014–2023 |
| FORD | 1.6 TDCi | TRANSIT COURIER B460 MPV | T3CB | 95 | Diesel | 2014–2023 |
| MAZDA | 1.4 CD | 2 (DY) | F6JA | 68 | Diesel | 2003–2007 |
| MAZDA | 1.4 CD | 2 (DY) | F6JB | 68 | Diesel | 2003–2007 |
| MAZDA | 1.4 MZR-CD | 2 (DE_, DH_) | Y404 | 68 | Diesel | 2008–2015 |
| MAZDA | 1.6 MZ-CD | 2 (DE_, DH_) | Y406 | 90 | Diesel | 2008–2015 |
| MAZDA | 1.6 MZ-CD | 2 (DE_, DH_) | Y655 | 95 | Diesel | 2011–2015 |
| MAZDA | 1.6 MZ-CD | 2 (DE_, DH_) | Y646 | 90 | Diesel | 2008–2015 |
| MAZDA | 1.6 MZ-CD | 2 (DE_, DH_) | Y661 | 95 | Diesel | 2011–2015 |
