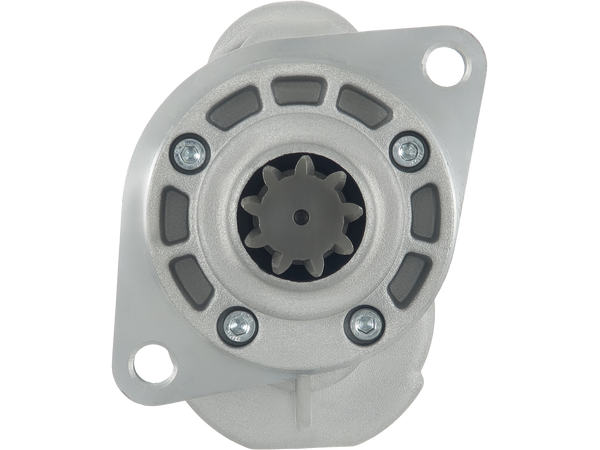

S9057
Startmotorer
STANDARD LINE
755 kr
Köp nu
| EAN | 5901259437812 |
| Tillverkare | AS-PL |
| Ersätter | MAGNETON |
| OE-nummer |
3EFFE: STRF151 AS-PL: UD30534S AUTOELECTRO: AES4156 BOSCH: 0001211241, 0986010430, 0986010431 CASCO: CST48104GS DELCO: DRS0430, DRS10430 EAI: 11368 ELECTROLOG: STRX757 ELSTOCK: 25-0308, 26-0308, MOS12-10 ERA: 220089 FARCOM: 103030 FEMSA: MOC12-10 FRIESEN: 8010430 HC PARTS: CS156 HELLA: 8EA726004-001 HERTH+BUSS: 42013590 KUHNER: 10156R LAUBER: 22.0156, 22.0156M LOGISTIK: 330308 LUCAS: LRS00456, LRS456 MAGNETON: 02914207, 11490400, 114904000, 443115142071, 443115142110, 443115142112, 9141312 POWERMAX: 8212886 REAL: 20408401OE, 20488001 SANDO: 6048104 SIOM: MAV3240 SOVEREIGN: SS865 SPIDAN: 0.001183 TTV: 910430 VALEO: VS183 WAI / TRANSPO: 30457R WOODAUTO: STR60404 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 12 |
| Effekt [ kW ] | 1.00 |
| Startmotors rotation | ACW |
| A-storlek [ mm ] | 76 |
| B-storlek [ mm ] | 26 |
| Antal kuggar [ qty. ] | 9 |
| Antal kuggar (passar in) [ qty. ] | 9 |
| Antal hål i huvudet [ qty. ] | 2 |
| Antal gängade hål [ qty. ] | 0 |
Passar i 23 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| SKODA | 1.0 | 100 | OHV | 39 | Petrol | 1970–1977 |
| SKODA | 1.0 | 100 | OHV | 42 | Petrol | 1970–1977 |
| SKODA | 1.0 105 S, L | 105,120 (742) | 742.10 | 46 | Petrol | 1976–1990 |
| SKODA | 1.0 105 S, L | 105,120 (744) | 742.10 | 44 | Petrol | 1988–1990 |
| SKODA | 1.0 105 S, L, GL | 105,120 (742) | 742.10 | 45 | Petrol | 1976–1983 |
| SKODA | 1.0 105 S, L, LS | 105,120 (744) | 742.10 | 45 | Petrol | 1983–1990 |
| SKODA | 1.1 L | 110 | 11 | 45 | Petrol | 1969–1982 |
| SKODA | 1.1 L | 110 | 11 | 48 | Petrol | 1969–1982 |
| SKODA | 1.1 LS | 110 | 11 | 52 | Petrol | 1970–1982 |
| SKODA | 1.1 R | 110 Coupe | 11 | 52 | Petrol | 1970–1982 |
| SKODA | 1.2 (120G) | RAPID (120G, 130G, 135G) | 742.12X | 58 | Petrol | 1983–1990 |
| SKODA | 1.2 120 GLS | 105,120 (744) | 742.12X | 58 | Petrol | 1983–1990 |
| SKODA | 1.2 120 L | 105,120 (742) | 742.12X | 52 | Petrol | 1976–1990 |
| SKODA | 1.2 120 L | 105,120 (744) | 742.12 | 48 | Petrol | 1987–1990 |
| SKODA | 1.2 120 L | 105,120 (744) | 742.12 | 52 | Petrol | 1983–1990 |
| SKODA | 1.2 120 LS | 105,120 (742) | 742.12X | 58 | Petrol | 1976–1990 |
| SKODA | 1.3 (130G) | RAPID (120G, 130G, 135G) | 742.13 | 61 | Petrol | 1985–1988 |
| SKODA | 1.3 (130G) | RAPID (120G, 130G, 135G) | 743.13 | 53 | Petrol | 1987–1991 |
| SKODA | 1.3 S (135GL) | RAPID (120G, 130G, 135G) | 135/8 | 58 | Petrol | 1984–1990 |
| SKODA | G,GL (S136) | 130 | 781.136 | 63 | Petrol | 1985–1991 |
| SKODA | GL | 130 | 743.13 | 53 | Petrol | 1987–1991 |
| SKODA | GL (S135) | 130 | 135/8 | 58 | Petrol | 1987–1991 |
| SKODA | L,GL | 130 | 742.13 | 61 | Petrol | 1985–1991 |
