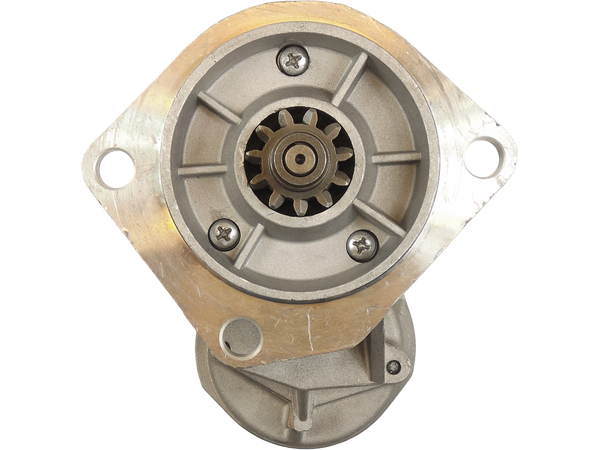

S9180
Startmotorer
STANDARD LINE
1131 kr
Köp nu
| EAN | 5902129006411 |
| Tillverkare | AS-PL |
| Ersätter | UNIVERSAL |
| OE-nummer |
AINDE: CGB-25158 AS-PL: UD11133S ASHIKA: 003-D944 AUTO MAGNETO: AM-2558 CARGO: 113191, F032113191 DIXIE: 240-35203, S-8888 ELECTROLOG: STR3110ND ELSTOCK: 45-1498 HITACHI: 23300-6J02, 23300-6J04, S25-158, S25-158A, S25-158B, S25-160 JAPANPARTS: MTD944 JAPKO: 3D944 KUHNER: 254138 LUCAS: LRS01886, LRS1886 NISSAN: 23300-06J01, 23300-06J02, 23300-06J04, 23300-34T00 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.50 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 105.00 |
| B-storlek [ mm ] | 12.00 |
| Antal kuggar [ qty. ] | 11 |
| Antal kuggar (passar in) [ qty. ] | 11 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 300.00 |
| O.1 [ mm ] | 114.00 |
| O.2 [ mm ] | 80.00 |
| O.3 [ mm ] | 139.00 |
| C.1 [ mm ] | 13.50 |
| C.2 [ mm ] | 13.50 |
| C.3 [ mm ] | 13.50 |
Passar i 3 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| NISSAN | 4.2 D | PATROL III/2 Hardtop (K260) | TD42 | 116 | Diesel | 1988–1997 |
| NISSAN | 4.2 D (CRGY60, KY60, KRY60, WRGY60) | PATROL GR IV (Y60, GR) | TD42 | 116 | Diesel | 1988–1997 |
| NISSAN | 4.2 D 4x4 (CRGY60, VRY60, VRGY60, WRY60, WRGY60) | PATROL GR IV (Y60, GR) | TD42 | 125 | Diesel | 1992–1994 |
