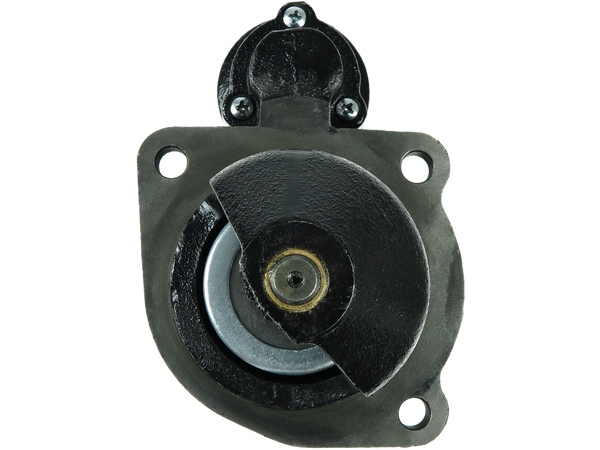

S9244
Startmotorer
STANDARD LINE
1516 kr
Köp nu
| EAN | 5902129021551 |
| Tillverkare | AS-PL |
| Ersätter | ISKRA / LETRIKA |
| OE-nummer | 11.131.359 |
| Datablad | Ladda ner PDF med skiss och mått |
Specifikationer
| Spänning [ V ] | 24 |
| Effekt [ kW ] | 4.00 |
| Startmotors rotation | CW |
| A-storlek [ mm ] | 89.00 |
| B-storlek [ mm ] | 47.00 |
| Antal kuggar [ qty. ] | 10 |
| Antal hål i huvudet [ qty. ] | 3 |
| Antal gängade hål [ qty. ] | 0 |
| L.1 [ mm ] | 322.00 |
| O.1 [ mm ] | 90.00 |
| O.2 [ mm ] | 127.00 |
| O.3 [ mm ] | 90.00 |
| C.1 [ mm ] | 11.50 |
| C.2 [ mm ] | 11.50 |
| C.3 [ mm ] | 11.50 |
Passar i 11 fordon
| Märke | Modell | Typ | Motor | Hk | Bränsle | År |
|---|---|---|---|---|---|---|
| CASE IH | Various Models | 0 | 1985–1998 | |||
| CUMMINS | Various Models | 0 | 1987– | |||
| CUMMINS | 5.9 | 6BT | 0 | 1994– | ||
| CUMMINS | 5.9 | 6BT C | 0 | – | ||
| CUMMINS | 5.9 | 6BTA-200C | 0 | – | ||
| DRESSER | 3.9 | 510B | 4BT | 0 | 1990–1993 | |
| HATZ | 0.7 | Engine | 2W35 | 0 | – | |
| KAMAZ | 4308 | 4308 | B5.9 | 180 | 2003– | |
| KAMAZ | 43255 | 43255 | B5.9 | 180 | 2003– | |
| SAMSUNG | 3.9 | SF130 | 0 | 1992–1998 | ||
| TIMBERJACK | 5.9 | 608 | 6BTA | 104-131 | Diesel | 1995–2000 |
